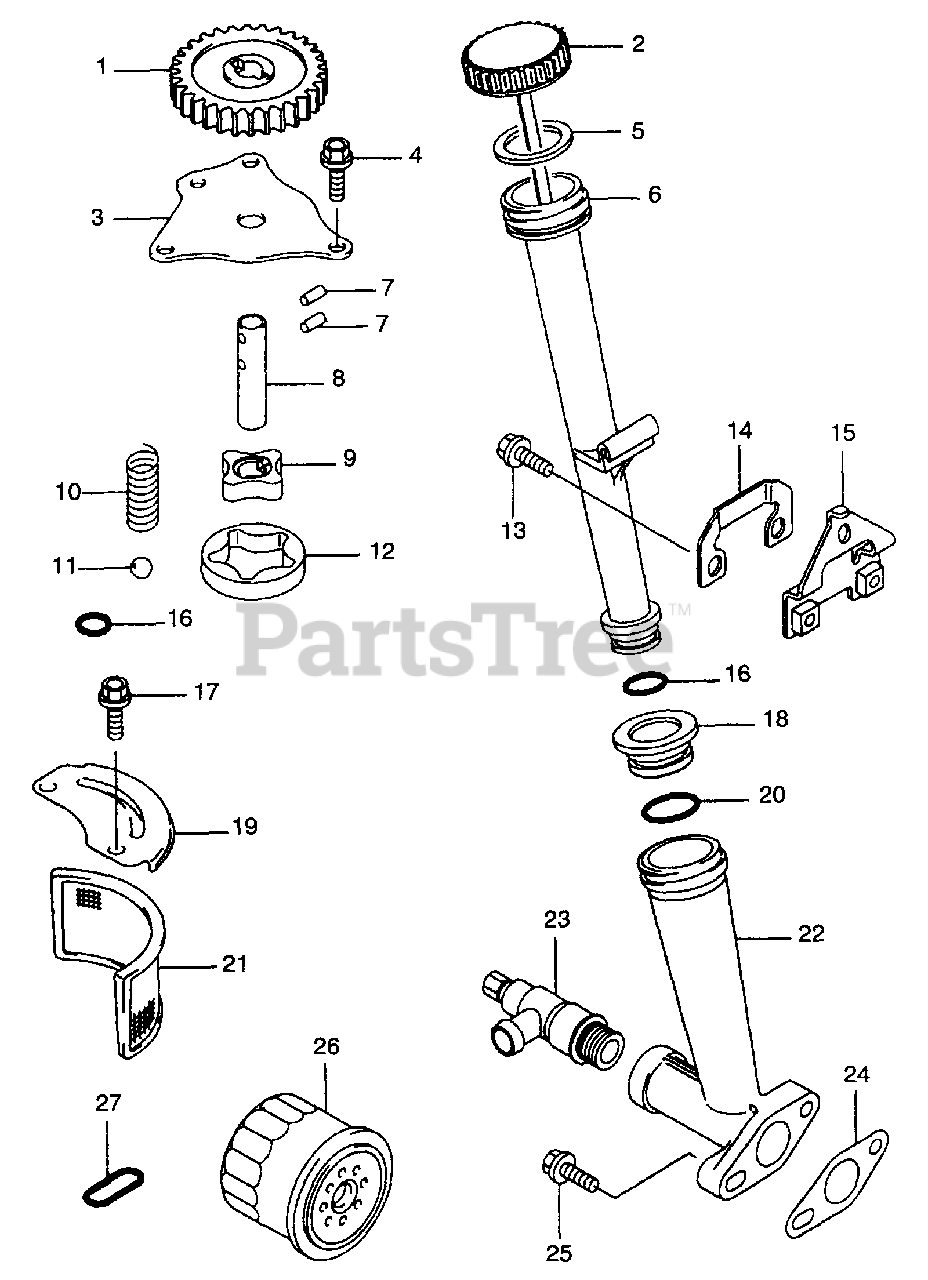

Z48L (53BA1D5M100) - Cub Cadet 48" Zero-Turn Mower 18 HP Lubrication/Equipment Parts Diagram

48" Zero-Turn Mower

18 HP Lubrication/Equipment Parts Diagram

  • Title

1

Cub Cadet KM-59051-2114

Spur Gear

$7.49

$

In Stock, only 1 left!

0

2

Cub Cadet KM-52005-2126

Gauge

$

$

Not available

3

Cub Cadet KM-14024-2113

Oil Pump Cover

$4.99

$

In Stock, only 1 left!

0

4

Cub Cadet KM-130B0614

Flanged Bolt

$

$

Not available

5

Cub Cadet KM-11009-2346

Oil Gauge Gasket

$2.49

$

In Stock, Qty 6

0

6

Cub Cadet KM-59231-2067

Filler

$

$

Not available

7

Cub Cadet KM-92042-014

Pin

$0.99

$

In Stock, Qty 11

0

8

Cub Cadet KM-13107-2099

Oil Pump Shaft
(Superseded to KM-13107-2296)

$12.99

$

In Stock, only 1 left!

0

9

Cub Cadet KM-16154-2053

Rotor-Pump In

$12.99

$

In Stock, only 2 left!

0

10

Cub Cadet KM-92144-2053

Spring
(Superseded to KM-92145-2132)

$0.99

$

In Stock, only 1 left!

0

11

Cub Cadet KM-600A1300

Steel Ball

$0.99

$

In Stock, Qty 14

0

12

Cub Cadet KM-16154-2054

Rotor-Pump Out

$9.49

$

In Stock, only 2 left!

0

13

Cub Cadet KM-130G0612

Flanged Bolt
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

14

Cub Cadet KM-11050-2067-9H

Bracket

$

$

Currently unavailable

15

Cub Cadet KM-11050-2066-9H

Bracket

$

$

Currently unavailable

16

Cub Cadet KM-670B2011

O Ring

$1.49

$

In Stock, Qty 20+

0

17

Cub Cadet KM-130B0614

Flanged Bolt

$

$

Not available

18

Cub Cadet KW-41077-2068

Adapter

$

$

Currently unavailable

19

Cub Cadet KM-13183-2121

Plate

$

$

Not available

20

Cub Cadet KM-670D2022

O Ring

$

$

Not available

21

Cub Cadet KM-49065-2058

Oil Filter

$8.49

$

Usually ships in 2-5 days

0

22

Cub Cadet KM-59231-2087

Filler

$

$

Not available

23

Cub Cadet KM-92005-2059

Fitting
(Superseded to KM-99969-1395)

$20.99

$

In Stock, only 1 left!

0

24

Cub Cadet KM-11060-2083

Filler Gasket

$1.49

$

In Stock, Qty 13

0

25

Cub Cadet KW-130G0625

Flanged Bolt

$

$

Currently unavailable

26

Cub Cadet KM-49065-2071

Oil Filter
(Superseded to KM-49065-7010)

$18.99

$

In Stock, Qty 20+

0

27

Cub Cadet KM-92055-2086

O-Ring

$1.49

$

In Stock, Qty 12

0
