Z48L (53AC365M100) - Cub Cadet 48" Zero-Turn Mower Final Drive Assembly Parts Diagram

48" Zero-Turn Mower

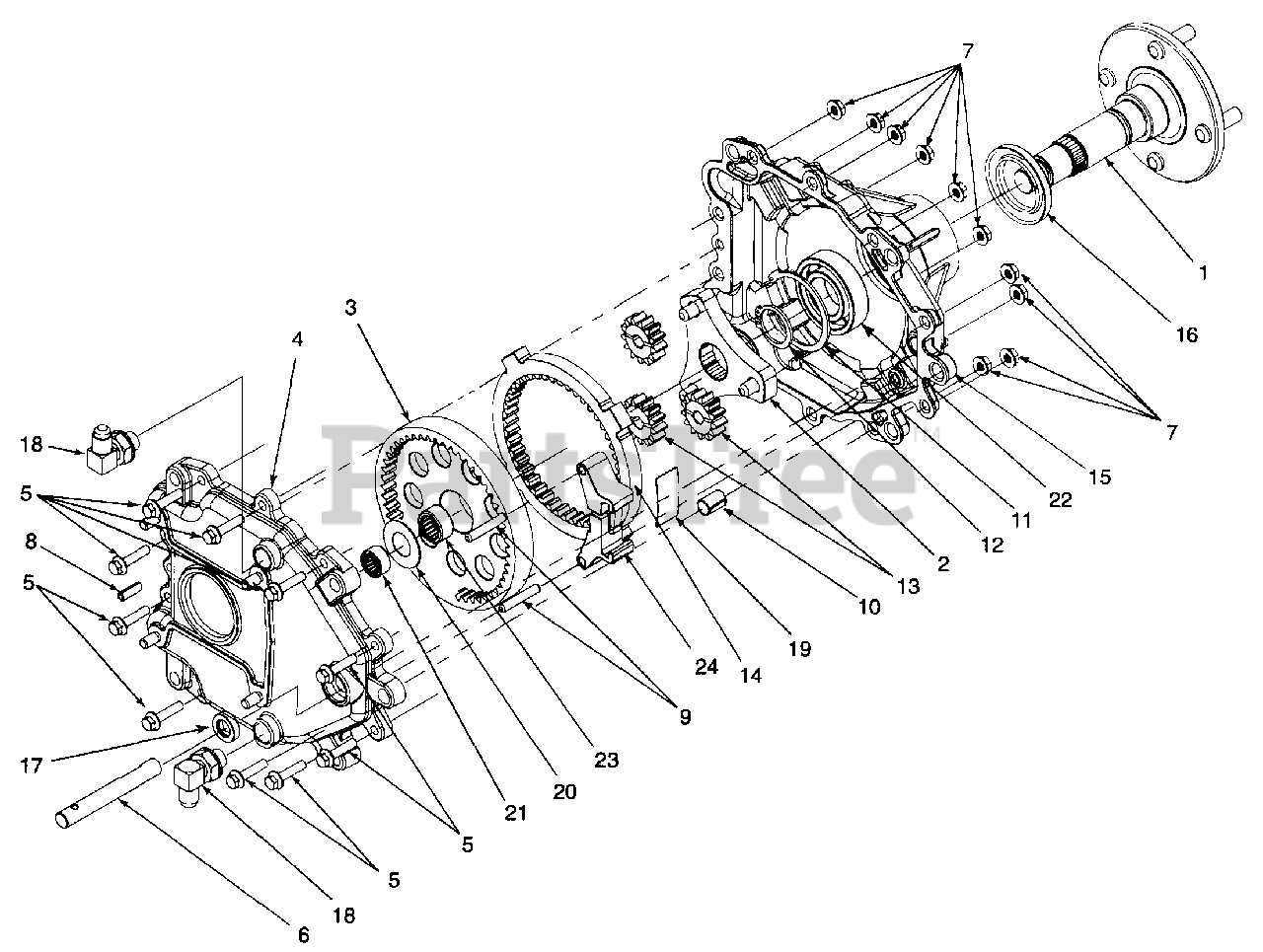

Final Drive Assembly Parts Diagram

  • Title

Cub Cadet 618-3110A

Drive Ass'y, Complete Final

$

$

Not available

1

Cub Cadet 611-3012

Axle Assembly Stud, Ribbed Neck
(Superseded to 911-3027)

$

$

Not available

Cub Cadet 710-0852

Stud

$6.49

$

In Stock, only 4 left!

0

2

Cub Cadet 618-3106

Carrier Assembly, Output
(Superseded to 918-3106)

$125.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 618-3107

Gear Assembly, 51T Internal & 20T
(Superseded to 918-3107)

Note: (Includes Ref. No. 23)

$214.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 618-3109

Housing Ass'y, Inner
(Superseded to 918-3109A)

Note: (Includes the following 2 items and Ref. Nos. 17 & 21)

$

$

Not available

Cub Cadet 710-1272A

Rib Neck Stud

$

$

Not available

Cub Cadet 721-0456

O-Ring

$

$

Not available

5

Cub Cadet 710-1342

Screw, Hex Wash. Hd. 1/4-20 x 1-1/8

$

$

Not available

6

Cub Cadet 711-1048

Shaft, Brake

$

$

Not available

7

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 715-0156

Pin, Roll, .25 x .75

$4.49

$

In Stock, only 1 left!

0

9

Cub Cadet 715-0219

Pin, Dowel, .250 x 1.50

$

$

Not available

10

Cub Cadet 715-3045

Bushing, Dowel
(Superseded to 915-3045)

$9.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 716-3015

Ring, Inverted Retaining

$11.99

$

In Stock, only 3 left!

0

12

Cub Cadet 716-3018

Ring, Snap, 1.189 Dia. Shft.

$6.99

$

In Stock, only 2 left!

0

13

Cub Cadet 717-3395

Gear, Spur, 13T

$

$

Not available

14

Cub Cadet 717-3397

Gear, Ring, 46T

$82.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 719-3114

Housing
(Superseded to 919-3114A)

$284.99

$

Usually ships in 3-6 days

0

Cub Cadet 759-3746

Axle Outer Sealant, Ultra Grey, Loctite

$70.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 721-0381

Seal, Oil
(Superseded to 921-0381)

$19.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 721-0393

Seal, Oil

$12.99

$

In Stock, only 1 left!

0

18

Cub Cadet 727-3124

Fitting, Elbow, 3/8 x 3/8
(Superseded to 01002602)

$

$

Not available

19

Cub Cadet 732-0752

Spring, Brake Shoe

$

$

Not available

20

Cub Cadet 736-0351

Washer, Shim, .76 x 1.5 x .030

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0492

Washer, Shim, .76 x 1.5 x .010
(Superseded to 936-0492)

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 736-0493

Washer, Shim, .76 x 1.5 x .020
(Superseded to 936-0493)

$4.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 741-0665

Bearing, Needle

$21.99

$

In Stock, only 2 left!

0

22

Cub Cadet 741-3033A

Bearing, Ball
(Superseded to 941-3033A)

$53.99

$

In Stock, Qty 6

0

23

Cub Cadet 741-3080

Bearing, Needle

$23.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 761-3049

Brake Shoe

$

$

Not available
