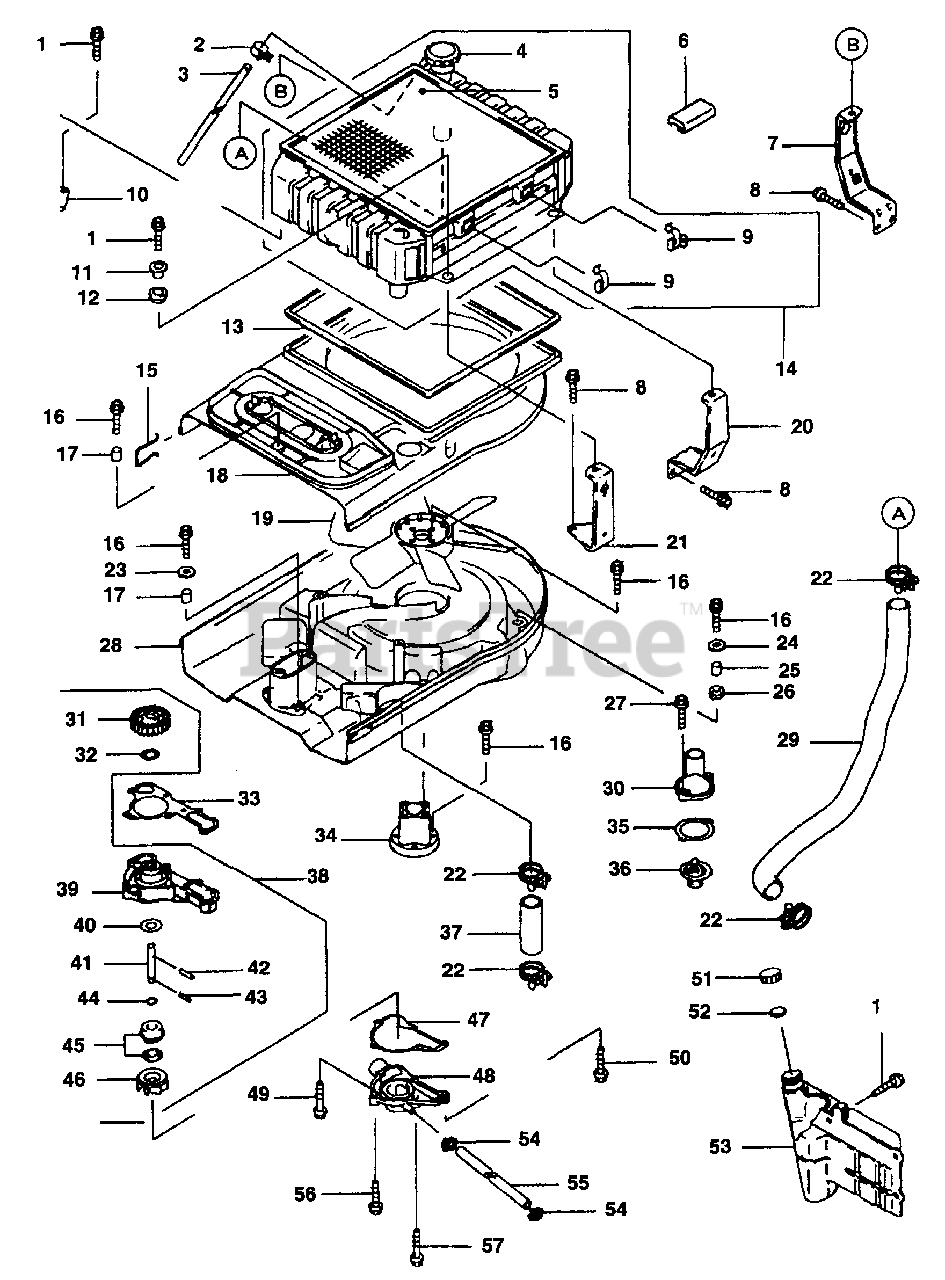

Z48L (53AC365M100) - Cub Cadet 48" Zero-Turn Mower 18 HP Cooling Equipment Parts Diagram

48" Zero-Turn Mower

18 HP Cooling Equipment Parts Diagram

  • Title

1

Cub Cadet KM-130B0614

Flanged Bolt

$

$

Not available

2

Cub Cadet KM-92037-2001

Clamp

$1.49

$

In Stock, only 3 left!

0

3

Cub Cadet KM-39062-2054

Cooling Hose

$7.49

$

Usually ships in 2-5 days

0

4

Cub Cadet KM-49085-2052

Pressure Cap Ass'y

$23.99

$

In Stock, Qty 8

0

5

Cub Cadet KM-14037-2108

Screen

$68.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KM-92160-2039

Damper

$

$

Not available

7

KM-11050-2069-9H

Bracket

$

$

Not available

8

Cub Cadet KM-130B0816

Flanged Bolt
(Superseded to KM-130BA0816)

$1.99

$

In Stock, only 4 left!

0

9

Cub Cadet KM-92144-2346

Spring

$5.99

$

In Stock, only 2 left!

0

10

Cub Cadet KM-11046-2010-9H

Bracket

$

$

Currently unavailable

11

Cub Cadet KM-92027-271

Collar

$3.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-92160-2001

Damper

$0.99

$

In Stock, Qty 5

0

13

Cub Cadet KM-92093-2085

Seal

$10.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KM-39061-2058

Radiator Ass'y

$755.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KM-92037-2211

Clamp

$1.99

$

In Stock, Qty 6

0

16

Cub Cadet KM-130B0620

Flanged Bolt

$

$

Not available

17

Cub Cadet KM-92143-2014

Collar

$0.99

$

In Stock, Qty 6

0

18

Cub Cadet KM-14073-2067

Duct

$

$

Not available

19

Cub Cadet KM-59041-2063

Cooling Fan

$44.99

$

In Stock, only 1 left!

0

20

Cub Cadet KM-11047-2058-9H

Bracket

$

$

Currently unavailable

21

KM-11050-2068-9H

Bracket

$

$

Not available

22

Cub Cadet KM-92037-2210

Clamp

$2.49

$

In Stock, only 1 left!

0

23

Cub Cadet KM-92022-2247

Washer

$0.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KM-92022-1557

Washer

$0.99

$

In Stock, only 2 left!

0

25

Cub Cadet KM-92143-2013

Collar

$

$

Not available

26

Cub Cadet KM-92160-2002

Damper

$0.99

$

In Stock, only 1 left!

0

27

Cub Cadet KM-92150-2231

Bolt

$2.49

$

Usually ships in 2-5 days

0

28

Cub Cadet KM-14073-2068

Duct

$75.99

$

Usually ships in 2-5 days

0

29

Cub Cadet KM-39062-2055

Cooling Hose

$45.99

$

In Stock, Qty 5

0

30

Cub Cadet KM-14024-2114

Cover

$

$

Not available

31

Cub Cadet KM-59051-2113

Spur Gear

$5.99

$

In Stock, only 1 left!

0

32

Cub Cadet KM-92200-2044

Washer

$3.49

$

In Stock, only 1 left!

0

33

Cub Cadet KM-11060-2289

Pump Case Gasket
(Superseded to KM-11060-2450)

$8.49

$

In Stock, only 4 left!

0

34

Cub Cadet KM-11046-2008

Bracket

$19.99

$

Usually ships in 2-5 days

0

35

Cub Cadet KM-11060-2084

Thermostat Cover Gasket

$3.49

$

In Stock, Qty 6

0

36

Cub Cadet KM-49054-2053

Thermostat
(Superseded to KM-49054-2056)

$31.99

$

In Stock, Qty 20+

0

37

Cub Cadet KM-39062-2052

Cooling Hose

$7.99

$

Usually ships in 2-5 days

0

38

Cub Cadet KM-49044-2058

Water Pump
(Superseded to KM-49044-2066)

$79.99

$

In Stock, only 1 left!

0

39

Cub Cadet KM-59336-2052

Pump Case

$35.99

$

Usually ships in 2-5 days

0

40

Cub Cadet KM-92049-2111

Oil Seal

$4.49

$

In Stock, only 2 left!

0

41

Cub Cadet KM-13107-2097

Impeller Shaft

$9.49

$

In Stock, only 1 left!

0

42

Cub Cadet KM-92042-014

Pin

$0.99

$

In Stock, Qty 12

0

43

Cub Cadet KM-551A0314

Dowel Pin

$0.99

$

In Stock, Qty 9

0

44

Cub Cadet KM-670B1507

O Ring

$1.49

$

In Stock, only 4 left!

0

45

Cub Cadet KM-49063-2056

Mechanical Seal
(Superseded to KM-49063-1056)

$18.99

$

In Stock, only 3 left!

0

46

Cub Cadet KM-59256-2057

Impeller

$4.99

$

Usually ships in 2-5 days

0

47

Cub Cadet KM-11060-2288

Pump Cover Gasket
(Superseded to KM-11060-2451)

$5.99

$

In Stock, Qty 20+

0

48

Cub Cadet KM-16142-2069

Pump Cover
(Superseded to KM-16142-0729)

$22.99

$

In Stock, only 3 left!

0

49

Cub Cadet KM-130G0675

Flanged Bolt
(Superseded to KM-130CA0675)

$2.99

$

In Stock, only 2 left!

0

50

Cub Cadet KM-130G0645

Flanged Bolt
(Superseded to KM-130BA0645)

$1.49

$

In Stock, Qty 5

0

51

Cub Cadet KM-11012-1084

Cap

$1.99

$

In Stock, Qty 20+

0

52

Cub Cadet KM-11009-1145

Gasket

$1.49

$

Usually ships in 2-5 days

0

53

Cub Cadet KM-43078-2051

Reservoir

$20.99

$

Usually ships in 2-5 days

0

54

Cub Cadet KM-92037-2065

Clamp

$

$

Not available

55

Cub Cadet KM-39062-2051

Cooling Hose

$5.99

$

In Stock, only 4 left!

0

56

Cub Cadet KM-130H0665

Flanged Bolt
(Superseded to KM-130BA0665)

$1.99

$

In Stock, Qty 5

0

57

Cub Cadet KM-130G0870

Flanged Bolt
(Superseded to KM-130CA0870)

$2.49

$

In Stock, only 3 left!

0
