Z48 (53BA1B5M100) - Cub Cadet 48" Zero-Turn Mower (1999) Engine Mounting, Muffler, Controls And PTO Clutch Parts Diagram

48" Zero-Turn Mower

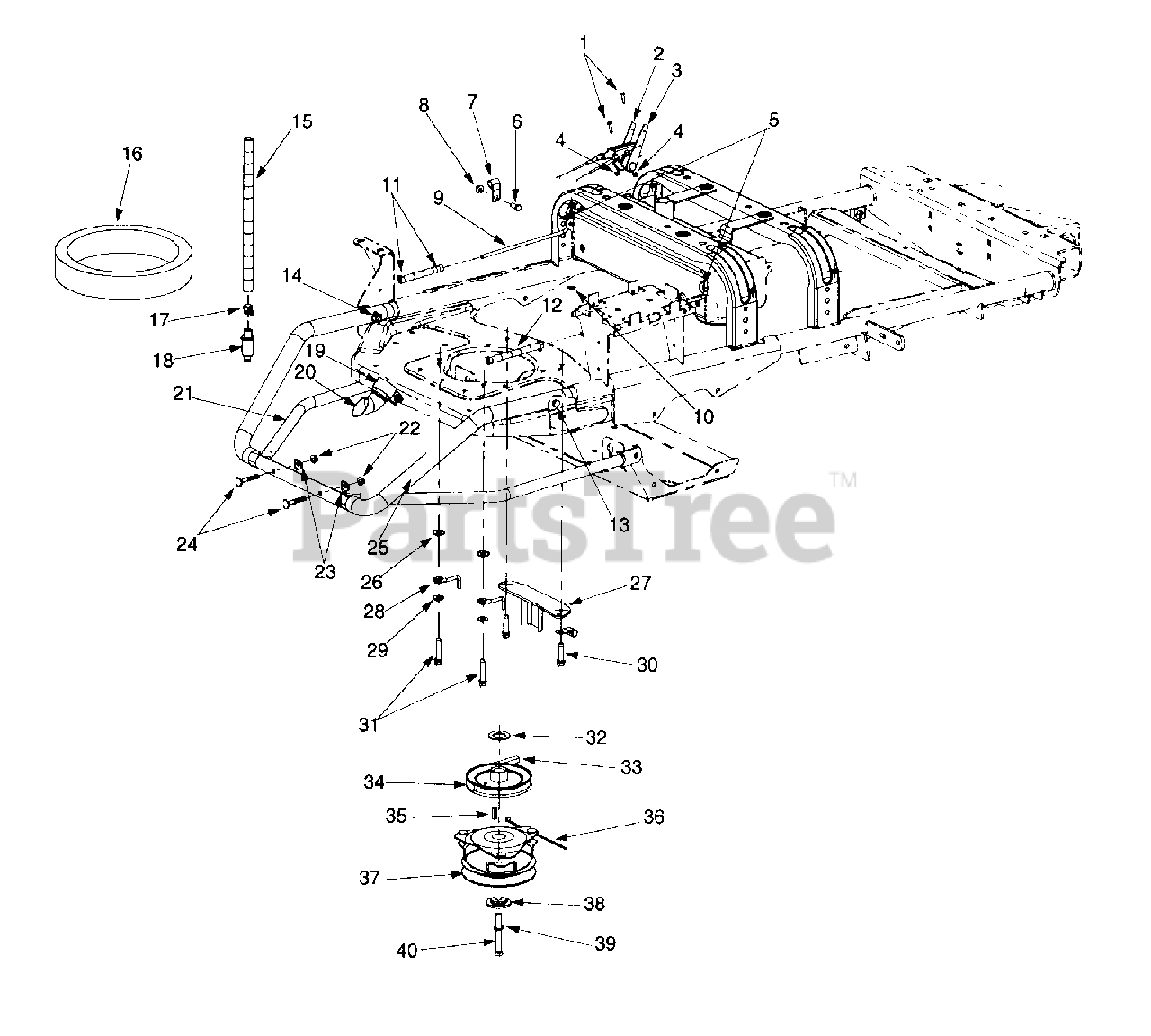

Engine Mounting, Muffler, Controls And PTO Clutch Parts Diagram

  • Title

1

Cub Cadet 710-3009

Screw #10-24 x .750

$7.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 746-3070

Throttle Control Cable 40.5"

$

$

Not available

3

Cub Cadet 746-3066

Choke Control Cable 38.0"

$

$

Not available

4

Cub Cadet 712-0161

Lock Nut #10-24

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 725-1711

Retainer Clip

$

$

Not available

6

Cub Cadet 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 726-3008

Cable Clip Heat Shield

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-3004A

Hex Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 749-3048

Fuel Line

$

$

Not available

10

Cub Cadet 736-0607

Lock Washer 5/16

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

12

Cub Cadet 751-0535

Fuel Line Hose

$

$

Currently unavailable

13

Cub Cadet 710-3144

Hex Cap Screw 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

16

Cub Cadet 723-0454

Gasket Foam Seal Ring

$

$

Not available

17

Cub Cadet 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

18

Cub Cadet 751-3140

Oil Drain
(Superseded to 951-10517A)

$24.99

$

In Stock, only 3 left!

0

19

Cub Cadet 751-3147

Muffler Exhaust Clamp

$

$

Not available

20

Cub Cadet 749-3083

Exhaust

$

$

Not available

21

Cub Cadet 749-3061

Lower Bumper Tube

Variations

Cub Cadet 749-3061-0498

BMPR TUBE - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 749-3061-0637

BMPR TUBE - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 749-3061-0648

BMPR:TUBE:LWR - TECH GRAY (0648)

$

$

Not available

$

$

22

Cub Cadet 712-3004A

Hex Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0451

Shoulder Washer .320 ID x .93 OD

$4.49

$

In Stock, Qty 11

0

24

Cub Cadet 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

25

Cub Cadet 749-3062

Upper Bumper Tube

Variations

Cub Cadet 749-3062-0498

BMPR:TUBE:UPPER - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 749-3062-0637

BMPR:TUBE:UPPER (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 749-3062-0648

BMPR:TUBE:UPPER (TECH GRAY) - TECH GRAY (0648)

$

$

Not available

$

$

26

Cub Cadet 736-0258

Flat Washer .385 ID x 1.0 OD

$4.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 603-0317

Clutch Retainer Ass'y

Variations

Cub Cadet 603-0317-0637

RETAINER-CLUTCH (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

28

Cub Cadet 747-3362

Rear Belt Retainer Rod

$

$

Not available

29

Cub Cadet 736-3010

Flat Washer .407 I D x .812 OD

$4.99

$

In Stock, only 1 left!

0

30

Cub Cadet 710-1007

Hex Washer Screw 3/8-16 x 1.5

$6.49

$

In Stock, only 1 left!

0

31

Cub Cadet 710-1008

Hex Washer Screw 3/8-16 x 1.875

$5.49

$

In Stock, Qty 8

0

32

Cub Cadet 736-0250

Flat Washer 1.0 ID x 1.75 OD

$4.49

$

In Stock, only 2 left!

0

33

Cub Cadet 754-3076

V-Belt
(Superseded to 954-3076)

$71.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 756-3060

Drive Pulley
(Superseded to 756-3060A)

$97.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 714-0128

Key

$4.99

$

In Stock, Qty 6

0

36

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 717-3389

Electric PTO Clutch
(Superseded to 917-3389)

$642.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 750-3106

Spacer Clutch

$35.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 736-0171

Lock Washer 7/16

$4.49

$

In Stock, only 4 left!

0

40

Cub Cadet 710-3157

Hex Cap Screw 7/16-20 x 3.25
(Superseded to 710-3157A)

$10.99

$

In Stock, Qty 20+

0
