Z48 (53BA1B5M100) - Cub Cadet 48" Zero-Turn Mower (1999) Body Cover Panels Parts Diagram

48" Zero-Turn Mower

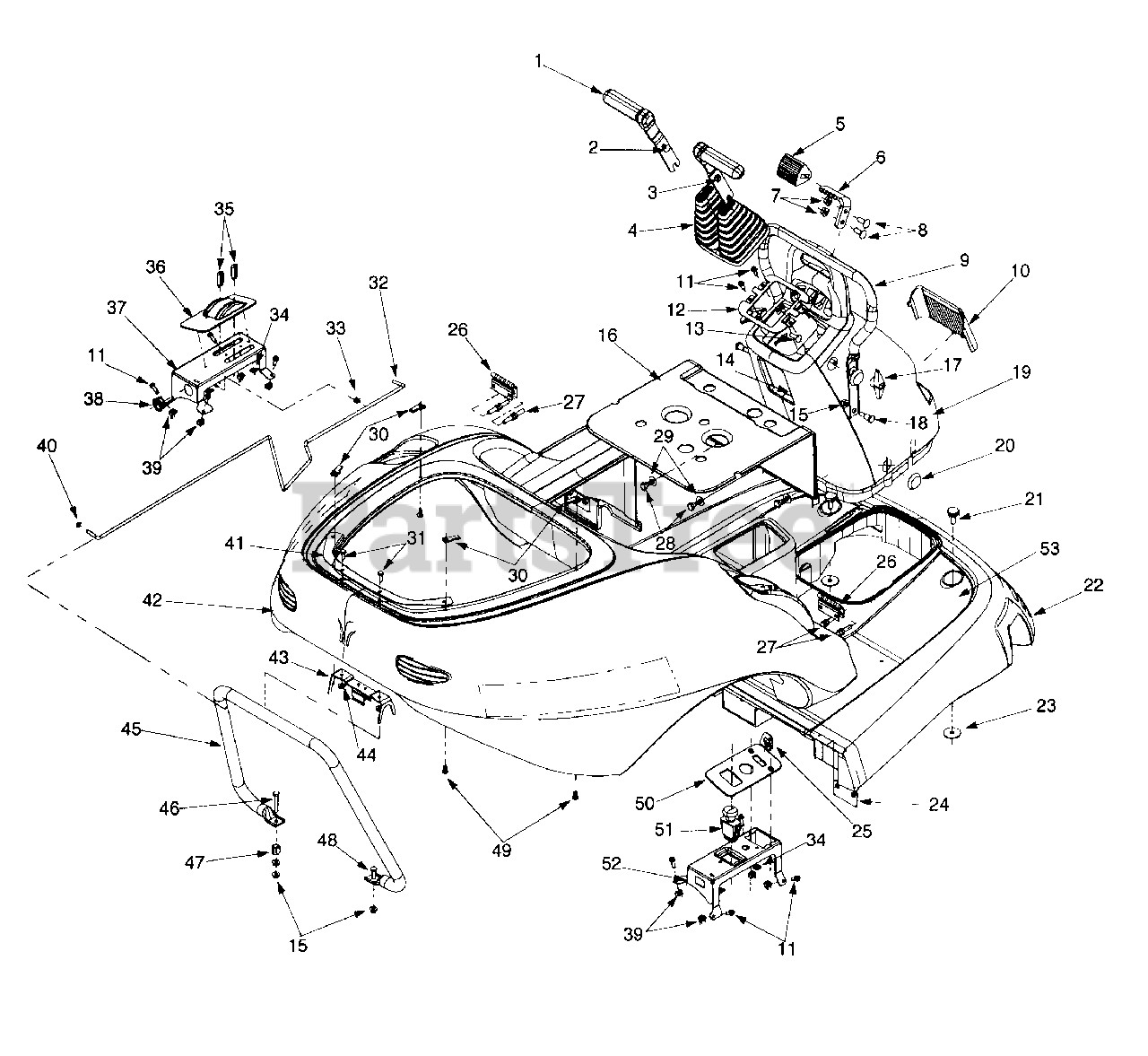

Body Cover Panels Parts Diagram

  • Title

1

Cub Cadet 731-3263

Control Handle
(Superseded to 931-3263)

$

$

Not available

2

Cub Cadet 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 731-3185

Control Bellow

$

$

Not available

5

Cub Cadet 735-0251

Foot Pad

$

$

Not available

6

Cub Cadet 703-2807B

Foot Pad Mounting Bracket

Variations

Cub Cadet 703-2807B-0637

BRACKET, MGT. FOOTPAD(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3168

Carriage Bolt 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 749-3081

Cruise Control Tube

Variations

Cub Cadet 749-3081-0637

TUBE-CRUISE CONTRO - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet 731-3128A

Lens

$

$

Not available

11

Cub Cadet 710-0642

Hex Washer Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 703-2648

Bellow Retainer Bracket

Variations

Cub Cadet 703-2648-0637

BRACKET:RET:BELLOWS (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet 710-0276

Carriage Screw 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 703-3288

Control Tube Mounting Bracket

Variations

Cub Cadet 703-3288-0637

CONTROL TUBE MOUNT BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

15

Cub Cadet 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 731-3264

Seatbase Cover

$

$

Not available

17

Cub Cadet 720-0241

Wingnut Knob Assembly 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

18

Cub Cadet 738-0754

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 731-3284

Console

$

$

Not available

20

Cub Cadet 726-0289

Plug

$

$

Not available

21

Cub Cadet 738-3163A

Shoulder Screw 3/8-16 x .75

$

$

Not available

22

Cub Cadet 731-3286

Body

$

$

Not available

23

Cub Cadet 736-3039

Flat Washer .406 ID x 1.5 OD

$5.49

$

In Stock, Qty 7

0

24

Cub Cadet 603-0578

Body Plate Assembly

$

$

Not available

25

Cub Cadet 703-1345A

Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

26

Cub Cadet 703-2928

Body Hinge

$

$

Not available

27

Cub Cadet 710-0376

Hex Cap Screw 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 738-0296

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0226

Flat Washer .474 ID x .879 OD
(Superseded to 936-0226)

$3.99

$

In Stock, only 2 left!

0

30

Cub Cadet 712-0185

U-Type Nut 1/4-20

$

$

Not available

31

Cub Cadet 710-3015

Hex Cap Screw 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 747-3303

Support Rod

$

$

Not available

33

Cub Cadet 732-0830

Clip
(Superseded to 932-0830)

$

$

Not available

34

Cub Cadet 726-3047

Push Nut
(Superseded to 926-3047)

$4.49

$

In Stock, only 4 left!

0

35

Cub Cadet 720-0302

Lever Knob

$

$

Not available

36

Cub Cadet 731-3195A

Control Panel Cover - LH

$

$

Not available

37

Cub Cadet 603-0424

Control Panel Assembly - LH

Variations

Cub Cadet 603-0424-0637

CONTROL PANEL ASSEMBLY (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

38

Cub Cadet 723-3042

Snap Bushing

$4.49

$

In Stock, only 1 left!

0

39

Cub Cadet 712-0453

Retainer Nut 1/4-20

$

$

Not available

40

Cub Cadet 726-0106

Cap Nut

$3.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 703-3078

Latch Mounting Plate

$

$

Not available

42

Cub Cadet 731-3187

Rear Body

$

$

Not available

43

Cub Cadet 603-0643

Clip Spring Bracket Assembly

$

$

Not available

44

Cub Cadet 712-3027

Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 749-3082

Engine Tube Support

Variations

Cub Cadet 749-3082-0637

TUBE-ENG COMPARTME(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

46

Cub Cadet 710-3180

Hex Cap Screw 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

47

Cub Cadet 750-3200

Spacer

$

$

Not available

48

Cub Cadet 710-3078

Hex Cap Screw 5/16-18 x 1.0

$

$

Currently unavailable

49

Cub Cadet 710-0946

Screw 1/4-20 x .625

$3.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 731-3196

Cover Panel - RH
(Superseded to 731-3196A)

$

$

Not available

51

Cub Cadet 725-3233

Electric Switch PTO
(Superseded to 925-3233A)

$51.99

$

In Stock, Qty 6

0

52

Cub Cadet 603-0425

Control Panel Assembly - RH

Variations

Cub Cadet 603-0425-0637

PANEL ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

53

Cub Cadet 735-0259

Floor Pad LH

$

$

Not available

Cub Cadet 735-0260

Floor Pad RH

$

$

Not available
