Z48 (53AC355M100) - Cub Cadet 48" Zero-Turn Mower 48" Deck Drive And Spindle Assembly Parts Diagram

48" Zero-Turn Mower

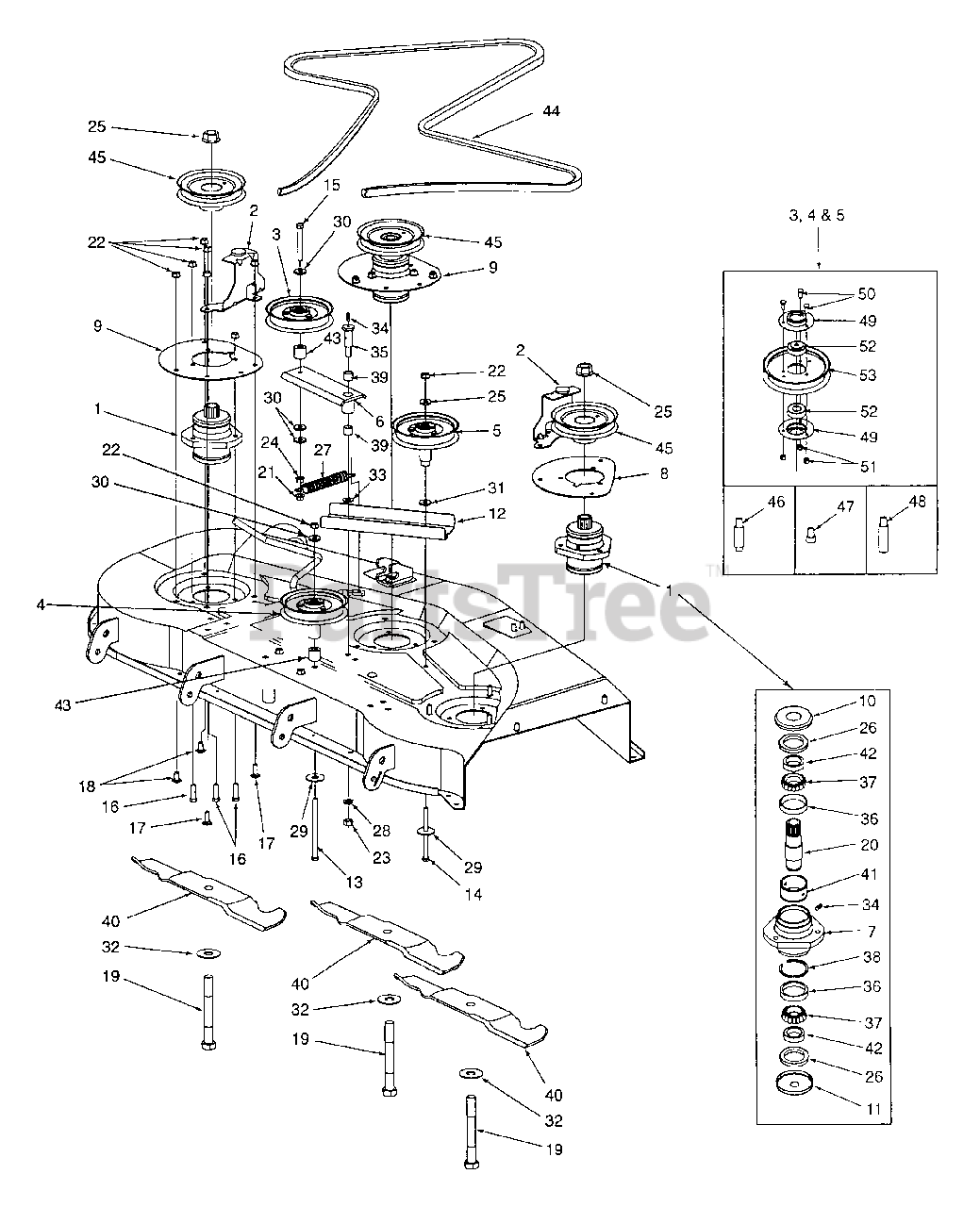

48" Deck Drive And Spindle Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0043A

Spindle Ass'y, Complete

$

$

Not available

2

Cub Cadet 603-0326

Bracket, Belt Cover Support

Note: CODE: 0498

Variations

Cub Cadet 603-0326-0498

BRACKET SUPT. - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0326-0637

BRACKET SUPT. - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 603-0362

Pulley Ass'y, 5" Idler
(Superseded to 903-0362)

Note: [Includes Ref No 47 & 49 Thru 53]

$

$

Not available

4

Cub Cadet 603-0406

Pulley Ass'y, 5" Idler

Note: [Includes Ref No 48 8 49 Thru 53]

$

$

Not available

5

Cub Cadet 603-0407

Pulley Ass'y, 5" Idler

Note: [Includes Ref No 46 & 49 Thru 53]

$

$

Not available

6

Cub Cadet 603-0469

Arm Ass'y, Idler

Note: [Includes Ref No 39 (Qty 2)]

Variations

Cub Cadet 603-0469-0498

ARM ASS'Y, IDLER - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0469-0637

ARM ASS'Y, IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 619-3022

Spindle Housing

$

$

Not available

8

Cub Cadet 703-2178

Cover Plate, RH Side
(Superseded to 703-2178-0637)

Variations

Cub Cadet 703-2178-0637

COVER PLATE (RH) - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 703-2179A

Cover Plate

Variations

Cub Cadet 703-2179A-0637

COVER PLATE - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet 703-2184

Cup, Spindle Top

$11.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-2185

Cup, Spindle Bottom
(Superseded to 703-2185-0637)

Variations

Cub Cadet 703-2185-0637

Spindle Cup, Bottom - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-2849

Channel
(Superseded to 703-2849-0637)

Variations

Cub Cadet 703-2849-0637

CHANNEL - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet 710-0615A

Screw, Hex Cap, 3/8-16 x 5.0 GR5

$6.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0693

Screw, Hex Cap, 3/8-16 x 4.5 GR5

$14.99

$

In Stock, only 2 left!

0

15

Cub Cadet 710-0902

Screw, Hex Cap, 3/8-24 x 3.75

$7.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 10

0

17

Cub Cadet 710-3168

Bolt, Carriage, 3/8-16 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-3178

Bolt, Carriage, 3/8-16 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-3252

Bolt, Hex Head, 3/4-16 x 6.0

$

$

Not available

20

Cub Cadet 711-3342

Shaft, Spindle

$

$

Not available

21

Cub Cadet 712-0262

Nut, Hex Center Lock Jam, 3/8-24

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-3019

Nut, Hex, 7/16-14

$6.99

$

In Stock, only 1 left!

0

24

Cub Cadet 712-3054

Nut, Hex Top Lock, 3/8-24

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 712-3078

Nut, Hex Flange, 3/4-16

$9.99

$

In Stock, Qty 20+

0

26

Cub Cadet 721-0385

Oil Seal
(Superseded to 921-0385)

$27.99

$

In Stock, only 2 left!

0

27

Cub Cadet 732-0942

Spring, Extension

$

$

Not available

28

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, only 4 left!

0

29

Cub Cadet 736-0227

Washer, Flat, 3/8 x 1.5 x .134

$6.49

$

In Stock, Qty 13

0

30

Cub Cadet 736-0258

Washer, Flat, .385 x 1.0 x .135

$4.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0316

Washer, Flat

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 736-3014

Washer, Flat, .78 x 2.0 x .105

$4.49

$

In Stock, only 4 left!

0

33

Cub Cadet 736-3015

Washer, Flat, .469 x .875 x .105
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 737-0280

Fitting, Grease

$7.99

$

In Stock, Qty 8

0

35

Cub Cadet 738-3108

Shoulder Bolt
(Superseded to 738-05004)

$22.99

$

In Stock, Qty 6

0

36

Cub Cadet 741-3050

Cup, Bearing
(Superseded to 941-3050)

$23.99

$

In Stock, only 2 left!

0

37

Cub Cadet 741-3051

Bearing, Cone
(Superseded to 941-3051)

$48.99

$

In Stock, only 2 left!

0

38

Cub Cadet 741-3052

Spacer, Bearing
(Superseded to 941-3052)

$

$

Not available

39

Cub Cadet 741-3063

Bearing, Sleeve

$17.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 759-3826

Mower Blade
(Superseded to 742P3025)

$46.99

$

In Stock, Qty 9

0

41

Cub Cadet 750-3073

Spacer, Bearing Cup

$

$

Not available

42

Cub Cadet 750-3187

Ring, Seal
(Superseded to 950-3187)

$49.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 750-3211

Spacer, .410 x 1.0 x .80

$

$

Not available

44

Cub Cadet 754-3079

V-Belt, B Section 153.0 Lg
(Superseded to 954-3079)

$134.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 756-3082

Pulley, Spindle

$

$

Not available

46

Cub Cadet 750-3175

Spacer, Front Deck Idler Pulley

$

$

Not available

47

Cub Cadet 750-3176

Spacer, Idler Arm Pulley

$

$

Not available

48

Cub Cadet 750-3177

Spacer, Rear Deck Idler Pulley

$

$

Not available

49

Cub Cadet 703-2907

Cup, Bearing

$

$

Not available

50

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62 GR5

$3.99

$

In Stock, Qty 20+

0

51

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

52

Cub Cadet 741-0600

Bearing, Ball
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

53

Cub Cadet 756-3085

Pulley, Flat Idler

$

$

Not available
