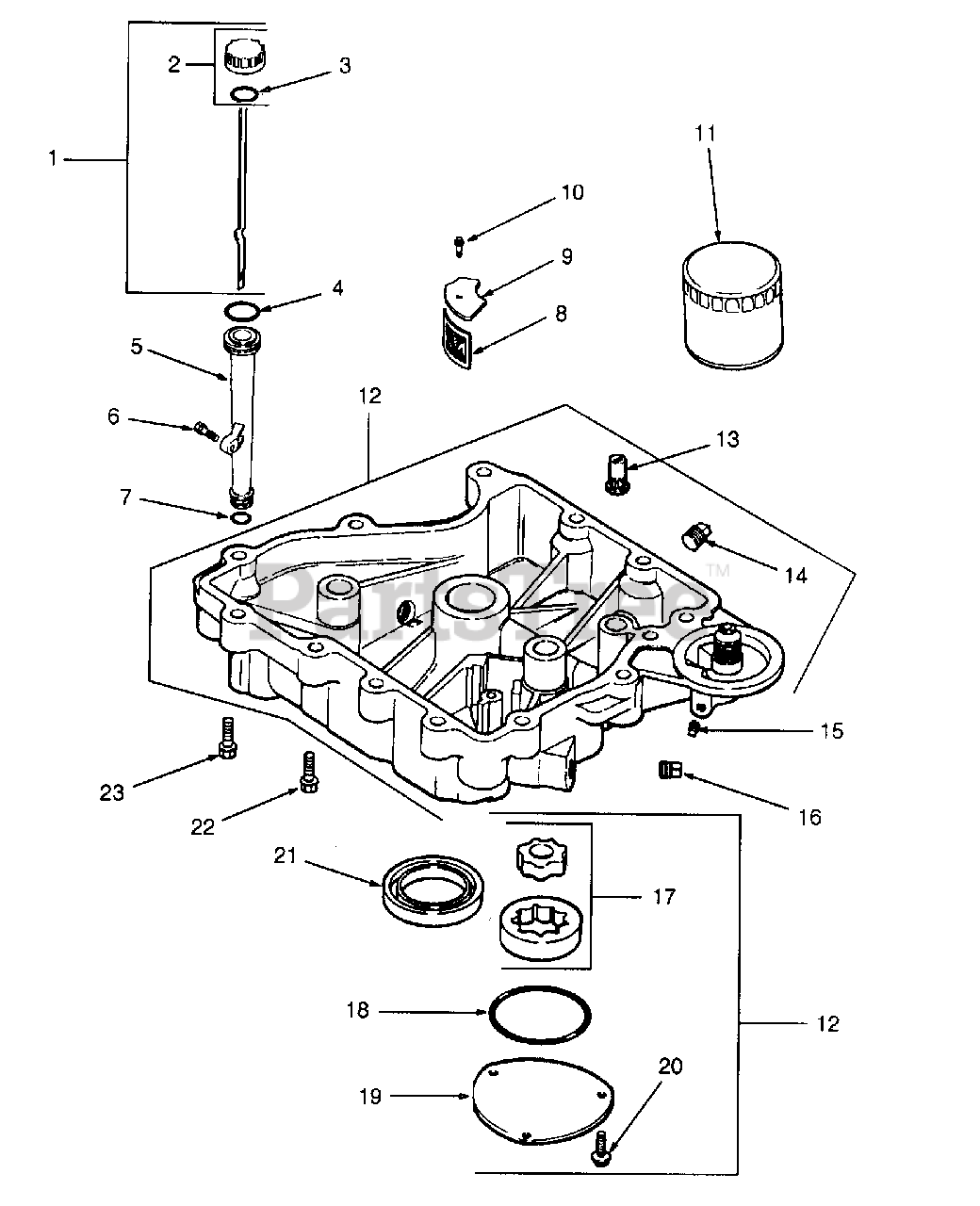

Z42 (53BA1B2G100) - Cub Cadet 42" Zero-Turn Mower (1999) Oil Pan And Lubrication Parts Diagram

42" Zero-Turn Mower

Oil Pan And Lubrication Parts Diagram

  • Title
1

Cub Cadet KH-12-038-01

Dipstick Ass'y

Note: (Includes 2-3)

$

$

Not available

2

Cub Cadet KH-25-755-13

Cap Kit, Oil Fill

Note: (Includes 3)

$

$

Not available

3

Cub Cadet KH-12-153-03

O-Ring, Dipstick
(Superseded to KH-25-153-02-S)

$2.49

$

In Stock, only 1 left!

0

4

Cub Cadet KH-12-153-02

O-Ring,Upper Oil Fill Tube
(Superseded to KH-12-153-02-S)

$2.49

$

In Stock, Qty 8

0

5

Cub Cadet KH-12-123-04

Tube, Oil Fill
(Superseded to KH-32-755-04-S)

$

$

Not available

6

Cub Cadet KH-M-0545020

Screw, Hex Flange, M5 x 0.8 x 20

$

$

Not available

7

Cub Cadet KH-12-153-01

O-Ring, Lower Oil Fill Tube
(Superseded to KH-12-153-01-S)

$4.99

$

In Stock, Qty 16

0

8

$

$

Not available

9

Cub Cadet KH-12-096-03

Cover, Oil Pick-up Screen

$

$

Not available

10

Cub Cadet KH-M-0545016

Screw, Hex Flange, M5 x 0.8 x 16
(Superseded to KH-25-086-426-S)

$2.49

$

In Stock, Qty 15

0

11

Cub Cadet KH-52-050-02

Filter, Oil
(Superseded to KH-52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

12

Cub Cadet KH-12-199-45

Pan Ass'y, Oil

Note: (Incl. 13,14, 17-20)

$

$

Not available

13

Cub Cadet KH-25-462-09

Valve, Oil Pressure

$

$

Not available

14

Cub Cadet KH-X-75-2

Plug, Pipe 1

$

$

Not available

15

Cub Cadet KH-X-75-1

Plug, Square Hd 1/8

$

$

Not available

16

Cub Cadet KH-X-75-10

Plug, Square Hd 3/8
(Superseded to KH-25-139-57-S)

$2.49

$

In Stock, only 3 left!

0

17

Cub Cadet KH-12-393-01

Pump Ass'y, Oil

$

$

Not available

18

Cub Cadet KH-12-153-06

O-Ring, Oil Pump Cover

$

$

Not available

19

Cub Cadet KH-12-096-34

Cover, Oil Pump

$

$

Not available

20

Cub Cadet KH-M-0545016

Screw, Hex Flange, M5 x 0.8 x 16
(Superseded to KH-25-086-426-S)

$2.49

$

In Stock, Qty 15

0

21

Cub Cadet KH-12-032-03

Seal, Oil (PTO End)
(Superseded to KH-12-032-03-S)

$10.99

$

Usually ships in 3-6 days

0

22

Cub Cadet KH-24-086-16

Screw, Hex Flange, M8 x 1.25 x 45
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 7

0

23

Cub Cadet KH-24-086-17

Screw, Hex Flange, M8 x 1.25 x 45
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 7

0
