Z42 (53BA1B2G100) - Cub Cadet 42" Zero-Turn Mower (1999) Fuel System Parts Diagram

42" Zero-Turn Mower

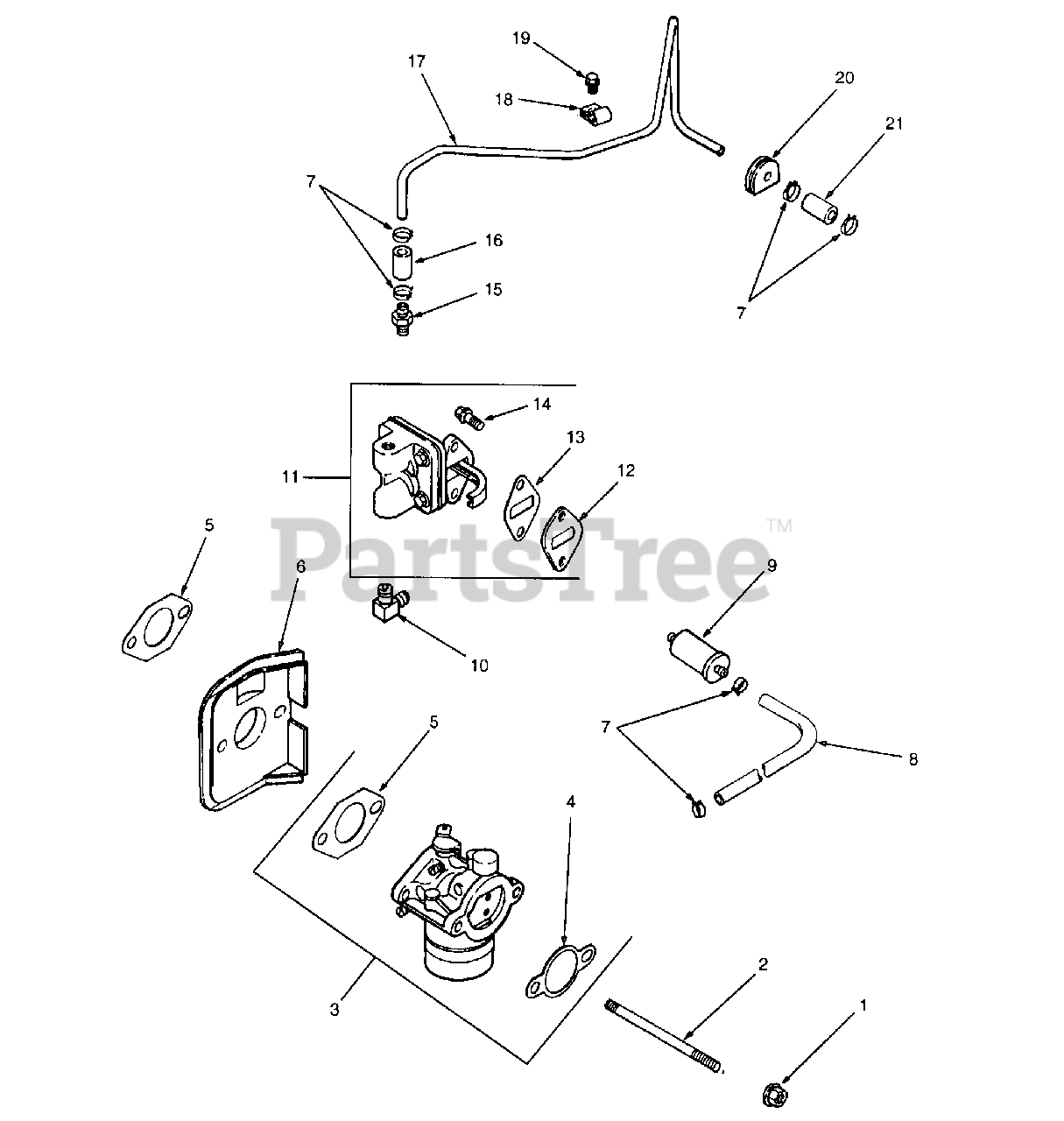

Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-M-0641060

Nut, Hex Flange, M6 x 1.0
(Superseded to KH-M-641060-S)

$4.99

$

In Stock, Qty 6

0

2

Cub Cadet KH-M-0629122

Stud, M6 x 1.0 x 122

$

$

Not available

3

Cub Cadet KH-12-853-80

Kit, Carburetor w/Gaskets
(Superseded to KH-12-853-139-S)

Note: (Includes 4 and 5 (qty. 1))

$305.99

$

In Stock, only 1 left!

0

4

Cub Cadet KH-12-041-02

Gasket, Air Cleaner

$2.99

$

In Stock, Qty 10

0

5

Cub Cadet KH-12-041-01

Gasket, Carburetor

$2.49

$

In Stock, Qty 6

0

6

Cub Cadet KH-12-265-04

Deflector, Heat
(Superseded to KH-12-265-08-S)

$9.49

$

In Stock, only 2 left!

0

7

Cub Cadet KH-X-426-9

Clamp, Fuel Line
(Superseded to KH-25-237-31-S)

$5.49

$

In Stock, only 2 left!

0

8

Cub Cadet KH-25-353-02

Line, Fuel 3"

$

$

Not available

9

Cub Cadet KH-25-050-02

Filter, Fuel
(Superseded to KH-25-050-07-S)

$12.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-25-155-02

Connector, 90° Hose

$

$

Not available

11

Cub Cadet KH-12-559-01

Kit, Fuel Pump
(Superseded to KH-12-559-02-S)

Note: (Includes 12-14)

$56.99

$

In Stock, only 2 left!

0

12

Cub Cadet KH-12-112-05

Spacer, Fuel Pump

$

$

Not available

13

Cub Cadet KH-25-041-09

Gasket, Fuel Pump
(Superseded to KH-25-041-10-S)

$3.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-M-0645020

Screw, Hex Flange, M6 x 1.0 x 20
(Superseded to KH-25-086-396-S)

$2.99

$

In Stock, Qty 7

0

15

Cub Cadet KH-X-380-1

Connector, Straight Hose
(Superseded to KH-25-326-03-S)

$5.49

$

In Stock, only 2 left!

0

16

Cub Cadet KH-12-353-10

Line, Fuel 2-1/2"

$

$

Not available

17

Cub Cadet KH-12-123-19

Line, Fuel

$

$

Not available

18

Cub Cadet KH-12-154-01

Clamp, Fuel Line

$

$

Not available

19

Cub Cadet KH-M-0545010

Screw, Hex Flange, M5 x 0.8 x 10

$

$

Not available

20

Cub Cadet KH-12-313-01

Grommet

$

$

Not available

21

Cub Cadet KH-12-353-01

Line, Fuel 1-1/4"
(Superseded to 751-10349-13)

$18.99

$

In Stock, only 2 left!

0

Cub Cadet KH-12-757-03

Kit, Carburetor Repair w/Gaskets

Note: (Not Shown)

$45.99

$

In Stock, only 2 left!

0

Cub Cadet KH-12-757-08

Kit, Choke Repair

Note: (Not Shown)

$

$

Not available

Cub Cadet KH-12-757-02

Kit, Float

Note: (Not Shown)

$

$

Not available
