Z42 (53BA1B2G100) - Cub Cadet 42" Zero-Turn Mower (1999) Electric Starter Parts Diagram

42" Zero-Turn Mower

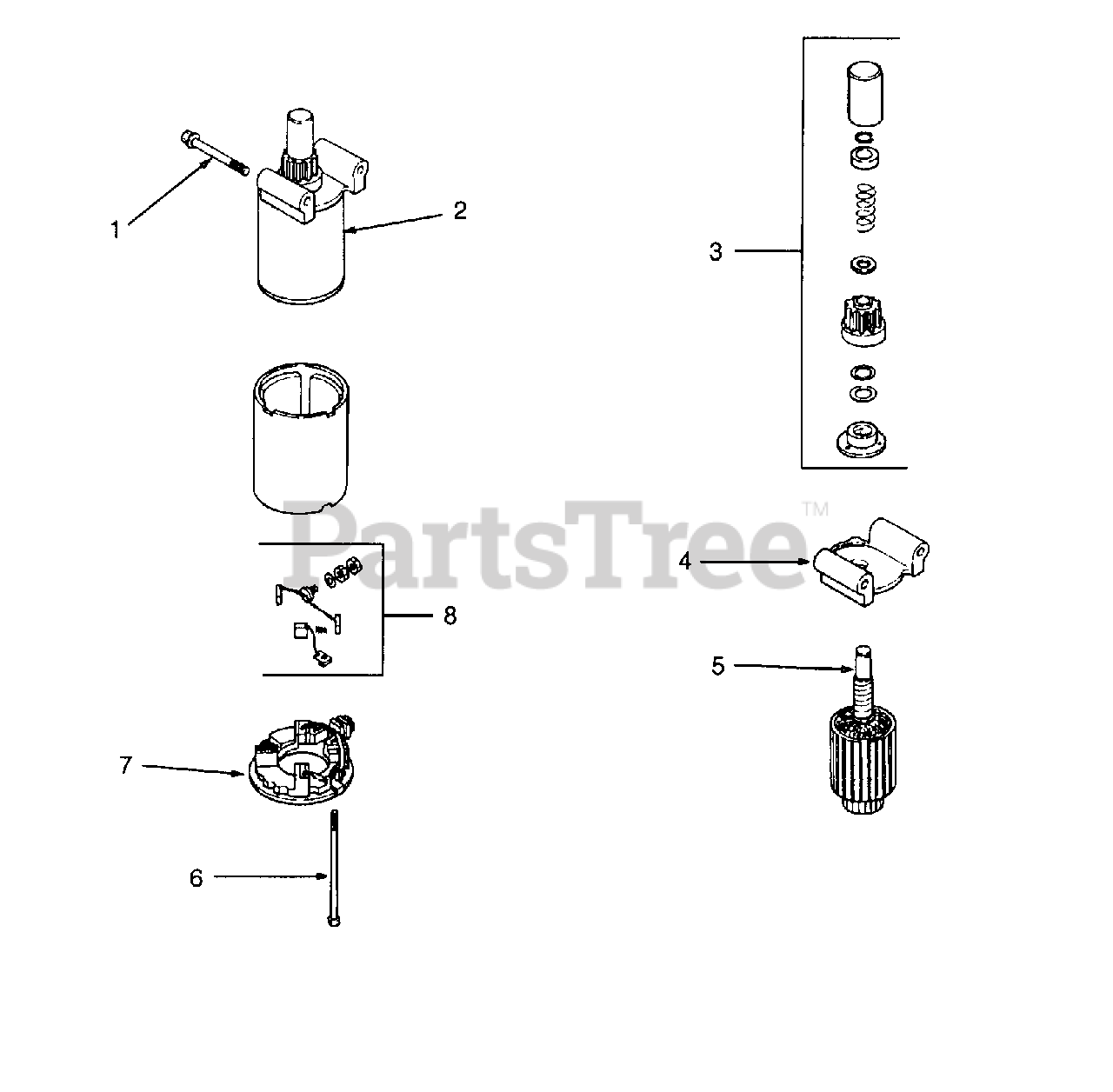

Electric Starter Parts Diagram

  • Title

1

Cub Cadet KH-M-0839070

Screw, Hex Flange, M8 x 1.25 x 70
(Superseded to KH-M-839070-S)

$9.49

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-12-098-13

Starter Assembly
(Superseded to KH-12-098-22-S)

Note: (Includes 3-8)

$275.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-12-755-53

Kit, Drive

$

$

Not available

4

Cub Cadet KH-12-227-05

Cap, End
(Superseded to KH-12-227-16-S)

$

$

Not available

5

Cub Cadet KH-45-170-03

Armature

$

$

Not available

6

Cub Cadet KH-12-086-25

Screw, Hex Flange, 1/4 - 20 x 4-5/8

$

$

Not available

7

Cub Cadet KH-12-227-11

Commutator, End Cap

$

$

Not available

8

Cub Cadet KH-82-755-28

Kit, Brush and Spring

$

$

Not available
