Z42 (53BA1B2G100) - Cub Cadet 42" Zero-Turn Mower (1999) Complete Transmission Assembly (L.H. Shown) Parts Diagram

42" Zero-Turn Mower

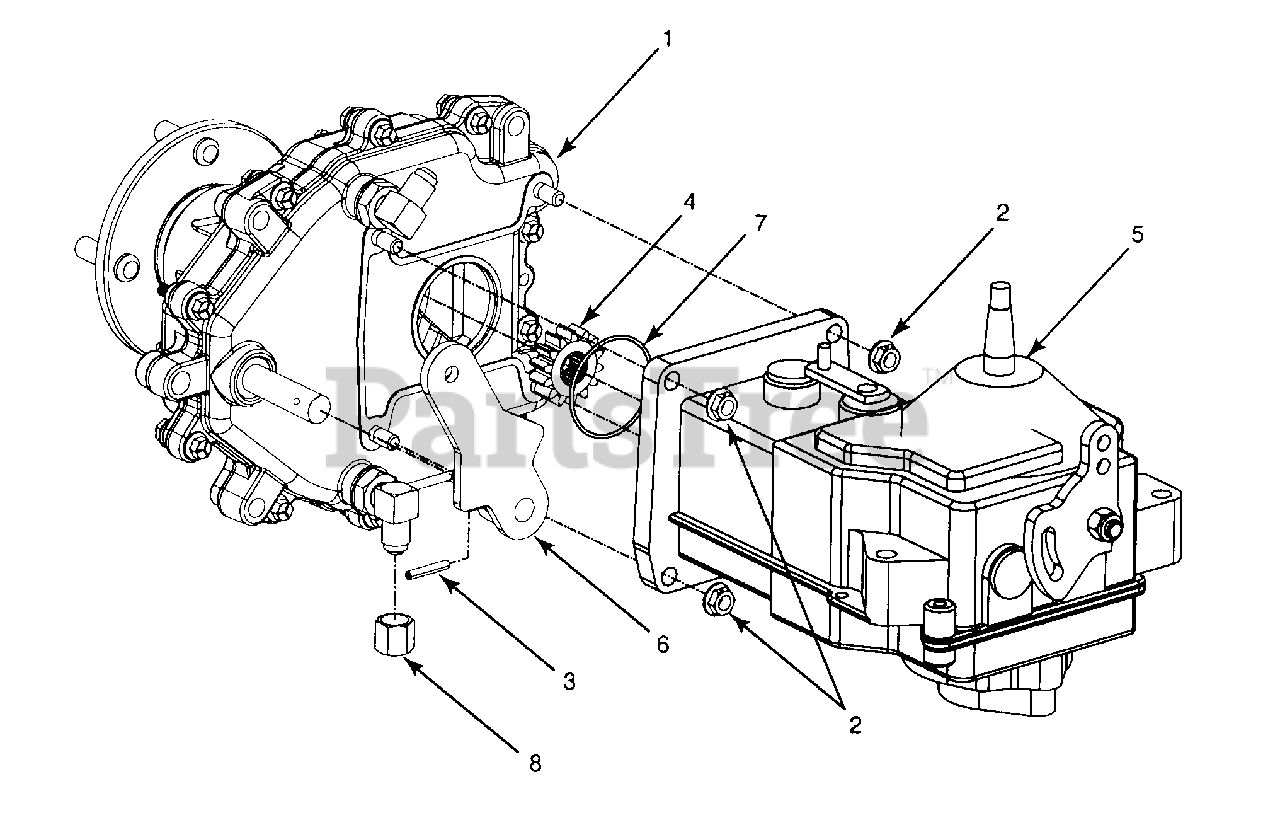

Complete Transmission Assembly (L.H. Shown) Parts Diagram

  • Title
1

Cub Cadet 618-3110A

Drive Ass'y Complete

$

$

Not available

2

Cub Cadet 712-3004A

Hex Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 715-0136

Spirol Pin 3/16 x 1.25
(Superseded to 915-0136)

$

$

Not available

4

Cub Cadet 717-3396

Spur Gear 14T
(Superseded to 917-3396)

$

$

Not available

5

Cub Cadet 717-3455

Hydro Transmission
(Superseded to 917-3455)

$

$

Not available

6

Cub Cadet 718-3053

Parking Brake Lever

$

$

Not available

7

Cub Cadet 721-0343

O-Ring 2.0 Dia.

$

$

Not available

8

Cub Cadet 727-3125

Cap Nut 3/8
(Superseded to 927-3125)

$

$

Not available
