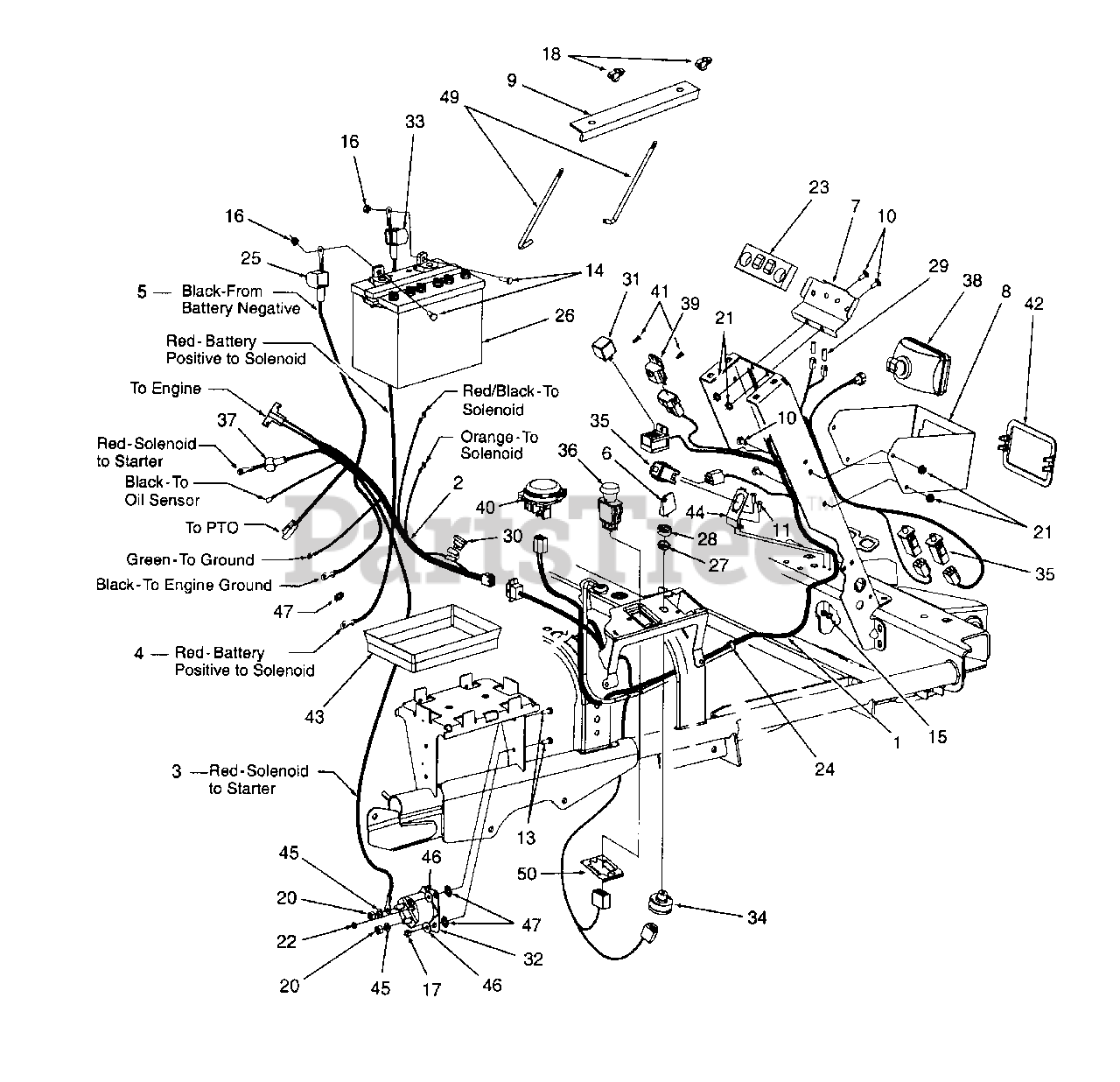

Z42 (53BA1B2G100) - Cub Cadet 42" Zero-Turn Mower (1999) Battery, Electrical Components And Switches Parts Diagram

42" Zero-Turn Mower

Battery, Electrical Components And Switches Parts Diagram

  • Title
1

Cub Cadet 629-3033

Wire Harness, Main

$

$

Not available

2

Cub Cadet 629-3037

Wire Harness, Engine

Note: (Inc. 30)

$

$

Not available

3

Cub Cadet 629-3039

Battery Cable, Red

Note: (Inc. 37)

$

$

Not available

4

Cub Cadet 629-3040

Battery Cable, Red

Note: (Inc. 33)

$

$

Not available

5

Cub Cadet 629-3041

Battery Cable, Black

Note: (Inc. 25)

$

$

Not available

6

Cub Cadet 759-3476A

Key, Ignition
(Superseded to 925-0201)

Note: (Set of 2)

$9.49

$

In Stock, only 1 left!

0

7

Cub Cadet 703-2809

Bracket, Indicator Bulb Mtg.

Variations

Cub Cadet 703-2809-0637

BRACKET, INDICATOR LG(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 703-2836

Bracket, Headlight Mtg.

Variations

Cub Cadet 703-2836-0498

BRACKET-HEADLIGHT - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2836-0637

BRACKET-HEADLIGHT (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 703-3149

Strip, Battery Retainer

$

$

Not available

10

Cub Cadet 710-0134

Bolt, Carriage, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0425

Screw, Machine, #10-24 x 5/8

$4.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62 GR5

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0161

Nut, Hex Insert Lock, #10-24

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0291

Nut, Hex Center Lock, 1/4-20

$4.49

$

In Stock, Qty 8

0

18

Cub Cadet 712-0397

Nut, Nylon Wing, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-3010

Nut, Hex, 5/16-18

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

22

Cub Cadet 712-3071

Nut, Hex Sems, #10-32
(Superseded to 712-3071A)

$3.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 723-0455

Foam Protector, Indicator Light

$

$

Not available

24

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 725-0340

Cover, Battery Terminal - Black

$

$

Not available

26

$

$

Not available

27

Cub Cadet 725-1346

Nut, Ignition Switch, 5/8-32
(Superseded to 925-1346)

$

$

Not available

28

Cub Cadet 725-1347

Cap, Ignition Switch

$4.99

$

In Stock, only 1 left!

0

29

Cub Cadet 725-1365

Bulb, Indicator
(Superseded to 925-1365)

$10.99

$

In Stock, only 1 left!

0

30

Cub Cadet 725-1656

Fuse, Mini, 20Amp

$

$

Not available

31

Cub Cadet 725-1718

Relay
(Superseded to 925-1718)

$73.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 725-3001

Solenoid Switch
(Superseded to 925-3001)

$58.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 725-3007A

Cover, Battery Terminal - Red

$

$

Not available

34

Cub Cadet 725-3163

Switch, Ignition
(Superseded to 925-3163)

$48.99

$

In Stock, Qty 20+

0

35

Cub Cadet 725-3164A

Switch, Plunger Safety
(Superseded to 925-3164A)

$40.99

$

In Stock, Qty 20+

0

36

Cub Cadet 725-3233

Switch, PTO
(Superseded to 925-3233A)

$51.99

$

In Stock, Qty 9

0

37

Cub Cadet 725-3237

Cover, Terminal - Red

$10.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 725-3250

Headlight Assembly
(Superseded to 925-3250)

$

$

Not available

Cub Cadet 759-3864

Bulb, Headlight - Only
(Superseded to 925-1759)

$51.99

$

In Stock, only 1 left!

0

39

Cub Cadet 725-3251

Sensor, Voltage
(Superseded to 925-3251)

$49.99

$

In Stock, only 1 left!

0

40

Cub Cadet 725-3253

Switch, Seat
(Superseded to 925-3253)

$61.99

$

In Stock, only 1 left!

0

41

Cub Cadet 726-0349

Retainer, Ratcheet

$

$

Not available

42

Cub Cadet 731-3184

Bezel, Headlight

$

$

Not available

43

Cub Cadet 731-3233

Tray, Battery

$

$

Not available

44

Cub Cadet 732-0816

Spring, Switch Mounting

$

$

Not available

45

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

46

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet 736-3006

Washer, Int./Ext. Lock, 1/4 ID

$6.49

$

Usually ships in 3-6 days

0

49

Cub Cadet 747-3347

Rod, Battery Retainer

$

$

Not available

50

Cub Cadet 783-0462

Bracket, PTO Switch Retainer

$

$

Not available
