Z42 (53AC305G100) - Cub Cadet 42" Zero-Turn Mower Hydraulic Drive, Lines & Filter w/Hydraulic Mounting Bracket Parts Diagram

42" Zero-Turn Mower

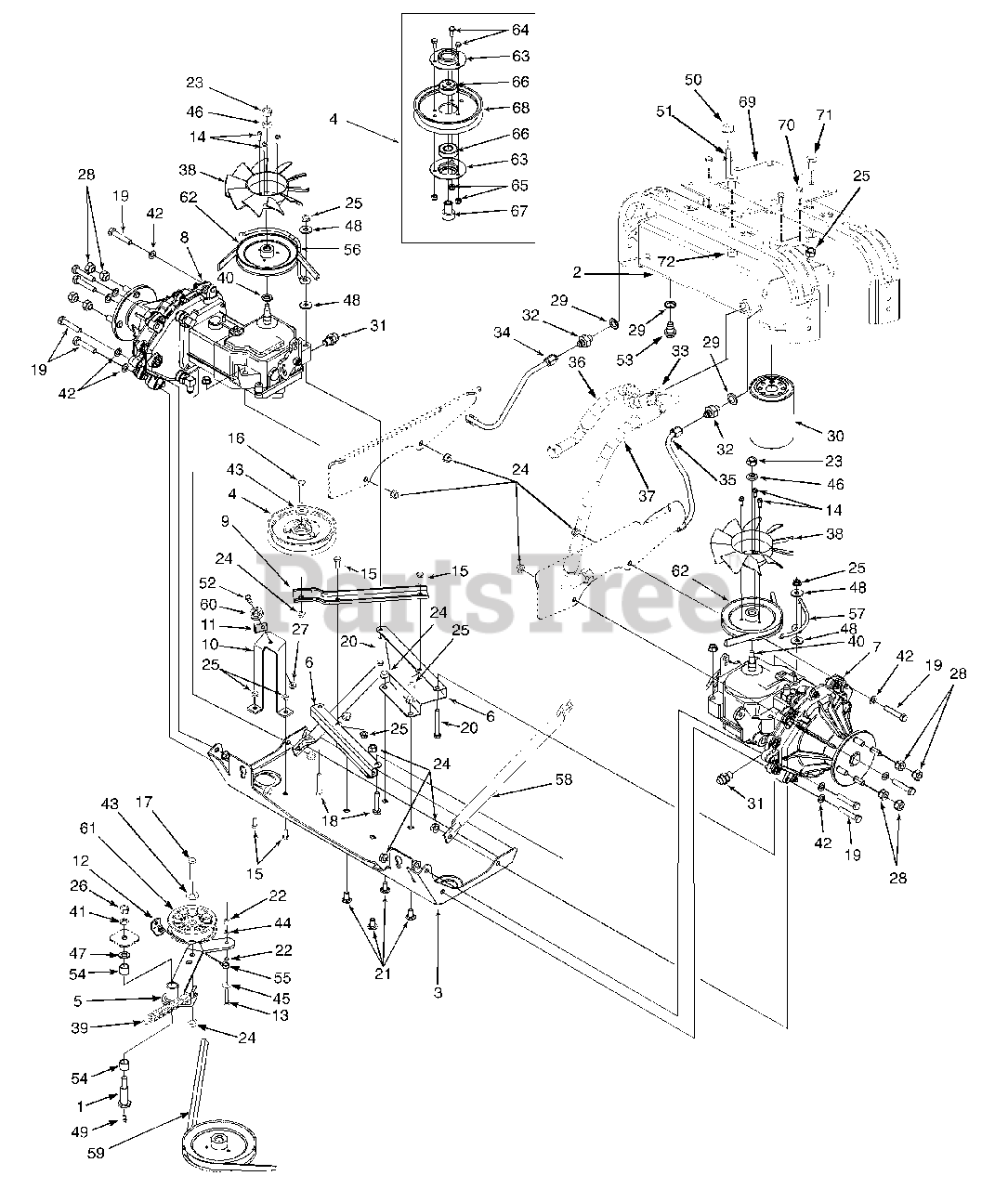

Hydraulic Drive, Lines & Filter w/Hydraulic Mounting Bracket Parts Diagram

  • Title

1

Cub Cadet 738-3108

Shoulder Bolt, Special
(Superseded to 738-05004)

$22.99

$

In Stock, Qty 6

0

2

Cub Cadet 603-0339

Tank Ass'y, Hydraulic

Note: Code 0648

$

$

Currently unavailable

Cub Cadet 737-3055

Oil, Drive System
(Superseded to 490-000-C051)

$21.99

$

In Stock, Qty 10

0

3

Cub Cadet 603-0358B

Plate Ass'y, Skid
(Superseded to 603-0358B-0637)

Note: Code 0648

Variations

Cub Cadet 603-0358B-0637

PLATE ASY-SKID - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 603-0362

Pulley Ass'y, Idler 5.0 in.
(Superseded to 903-0362)

$

$

Not available

5

Cub Cadet 603-0377A

Arm Ass'y, Idler

Note: Includes Ref. No. 54 (2)

Variations

Cub Cadet 603-0377A-0637

IDLER ARM ASSEMBLY W/B(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 603-0450

Support Ass'y, Pump
(Superseded to 603-0450-0637)

Variations

Cub Cadet 603-0450-0637

ASM: SUPPORT PUMP - POWDER BLACK (0637)

$

$

Not available

$

$

7

Transmission Ass'y RH

Note: See Component Lists

$

$

Not available

8

Transmission Ass'y LH

Note: See Component Lists

$

$

Not available

9

Cub Cadet 703-2888

Bracket, Idler

Variations

Cub Cadet 703-2888-0637

IDLER BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet 703-3168

Bracket, Pulley Mounting

$

$

Not available

11

Cub Cadet 703-3169

Bracket, Cable Retainer

$

$

Not available

12

Cub Cadet 703-3174

Bracket, Cable Mtg.

$

$

Not available

13

Cub Cadet 710-0428

Screw, Hex Cap 1/4-28 x 1.25 GR5

$2.49

$

In Stock, only 1 left!

0

14

Cub Cadet 710-1189

Screw, Hex Wash. Hd. Tapp #12-24 x .62

$

$

Not available

15

Cub Cadet 710-3008

Screw, Hex Cap 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-3011

Screw, Hex Cap 3/8-16 x 2-1/4 GR5

$6.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3037

Screw, Hex Cap 3/8-16 x 1-3/4 GR5
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-3103

Screw, Hex Cap 5/16-18 x 2.0 GR5

$4.49

$

In Stock, only 4 left!

0

19

Cub Cadet 710-3144

Screw, Hex Cap 3/8-16 x 2.0 GR5

$4.49

$

In Stock, Qty 7

0

20

Cub Cadet 710-3156

Screw, Hex Cap 5/16-18 x 2.50 GR5

$

$

Not available

21

Cub Cadet 710-3178

Bolt, Carriage, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-0138

Nut, Hex, 1/4-28

$6.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 712-0333

Nut, Hex, 1/2-20
(Superseded to 912-0333)

$

$

Not available

24

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 712-3019

Nut, Hex, 7/16-14

$6.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 712-3050

Nut, Lug, 7/16-14

$9.99

$

In Stock, Qty 6

0

29

Cub Cadet 721-0223

Seal, Drain Plug
(Superseded to 921-0223)

$

$

Not available

30

Cub Cadet 723-3071

Filter Element, Oil

$68.99

$

In Stock, only 1 left!

0

31

Cub Cadet 727-3100

Fitting, Connector 1/2 x 3/8
(Superseded to 01002606)

$

$

Not available

32

Cub Cadet 727-3116

Fitting, Connector

$

$

Not available

33

Cub Cadet 727-3155

Fitting, Tee, 1/2 x 1/2 x 3/4

$

$

Not available

34

Cub Cadet 727-3120

Tube, Inlet LH

$

$

Not available

35

Cub Cadet 727-3121A

Tube, Inlet RH

$

$

Currently unavailable

36

Cub Cadet 727-3153

Hose, Outlet LH

$

$

Not available

37

Cub Cadet 727-3154

Hose, Outlet RH

$

$

Not available

38

Cub Cadet 731-1449A

Fan, 10 Blade
(Superseded to 931-1449A)

$35.99

$

In Stock, Qty 9

0

39

Cub Cadet 732-0478

Spring, Extension
(Superseded to 932-0478)

$12.99

$

In Stock, Qty 12

0

40

Cub Cadet 732-0729

Wire Ring

$4.99

$

In Stock, Qty 5

0

41

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, only 4 left!

0

42

Cub Cadet 736-0185

Washer, Flat, .406 x .75 x .06

$3.99

$

In Stock, only 2 left!

0

43

Cub Cadet 736-0258

Washer, Flat, .385 x 1.0 x .135

$4.49

$

In Stock, only 3 left!

0

44

Cub Cadet 736-0329

Washer, Lock, 1/4 ID
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

45

Cub Cadet 736-0342

Washer, Flat, .283 x .75 x .030

$7.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 5

0

47

Cub Cadet 736-3015

Washer, Flat, .469 x .875 x .105
(Superseded to 936-3015)

$4.49

$

In Stock, only 1 left!

0

48

Cub Cadet 736-3089

Washer, Flat, 5/16 x .934 x .100

$

$

Not available

49

Cub Cadet 737-0280

Fitting, Grease

$7.99

$

In Stock, Qty 8

0

50

Cub Cadet 737-3069

Plug, Pipe, w/Vent 3/4 NPTF

$

$

Not available

51

Cub Cadet 737-3070A

Tube, Dipstick

$

$

Not available

52

Cub Cadet 738-0924

Bolt, Shoulder, 1/4-28: .375
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

53

Cub Cadet 738-0940

Plug, Oil Drain

$8.49

$

Usually ships in 3-6 days

0

54

Cub Cadet 741-3063

Bearing, Sleeve, .628 x .75 x .625

$17.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 746-3080

Cable, Declutching

$

$

Not available

56

Cub Cadet 747-3360

Rod, Belt Retaining RH

$

$

Not available

57

Cub Cadet 747-3361

Rod, Belt Retaining LH

$

$

Not available

58

Cub Cadet 749-3040

Strut, Frame

Note: Code 0648

Variations

Cub Cadet 749-3040-0498

USE 749-3040-0637 STRUT:FRM - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 749-3040-0637

STRUT:FRM - POWDER BLACK (0637)

$

$

Not available

$

$

59

Cub Cadet 754-3076

V - Belt, Transmission Drive A-Section x 54.24 Lg
(Superseded to 954-3076)

$71.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 756-0625

Cable Roller

$9.49

$

In Stock, Qty 16

0

61

Cub Cadet 756-0627

Pulley, Flat Idler 3.5 in.
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

62

Cub Cadet 756-0974

Pulley, Transmission

$

$

Not available

63

Cub Cadet 703-2907

Cup, Bearing

$

$

Not available

64

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62 GR5

$3.99

$

In Stock, Qty 20+

0

65

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

66

Cub Cadet 741-0600

Bearing, Ball
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

67

Cub Cadet 750-3176

Spacer, Idler

$

$

Not available

68

Cub Cadet 756-3085

Pulley, Idler 5.0 in.

$

$

Not available

69

Cub Cadet 703-3290

Hydraulic Tank Mount Bracket

$

$

Currently unavailable

70

Cub Cadet 710-3008

Carriage Bolt 5/16-18

$4.49

$

In Stock, Qty 20+

0

71

Cub Cadet 710-3043

Hex Head Screw 1/2-13 x .750

$

$

Not available

72

Cub Cadet 712-3022

Hex Nut Centerlock 1/2 - 13

$3.99

$

In Stock, Qty 8

0
