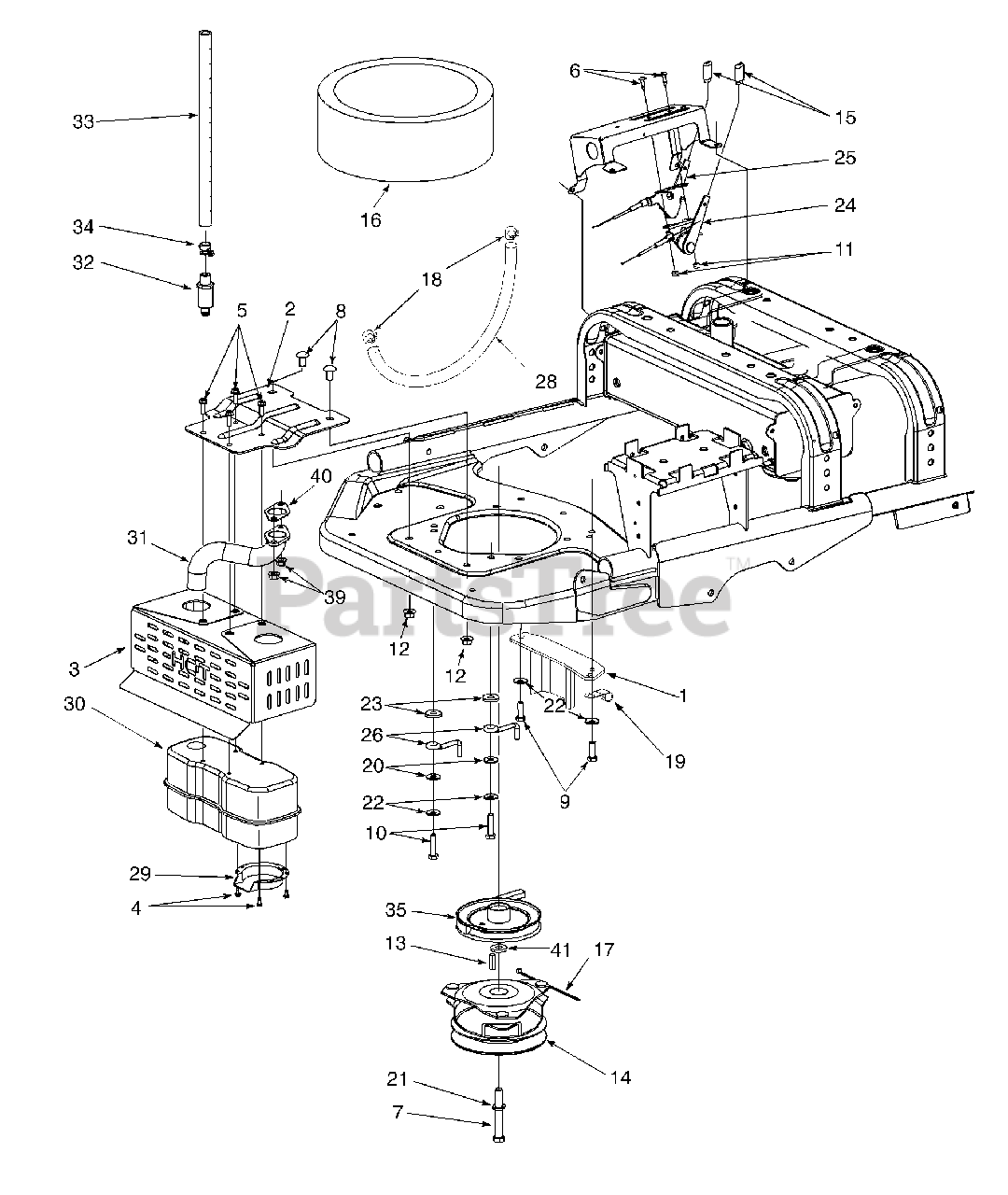

Z42 (53AC305G100) - Cub Cadet 42" Zero-Turn Mower Engine Mounting, Muffler, Controls & PTO Clutch Mfg. 4-20-98 & After Parts Diagram

42" Zero-Turn Mower

Engine Mounting, Muffler, Controls & PTO Clutch Mfg. 4-20-98 & After Parts Diagram

  • Title

1

Cub Cadet 603-0317

Retainer, PTO Clutch Assembly

Variations

Cub Cadet 603-0317-0637

RETAINER-CLUTCH (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 703-2859

Bracket, Muffler Support

$

$

Not available

3

Cub Cadet 703-3004

Shield, Muffler
(Superseded to 703-3004-0637)

Variations

Cub Cadet 703-3004-0637

SHIELD-MUFFLER - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 710-0148

Screw, Hex Wash Hd Tapp #8-32 x .38

$4.49

$

In Stock, Qty 16

0

5

Cub Cadet 710-0642

Screw, Hex Wash Hd Tapp 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3009

Screw, Phil. Pan Hd,10-24 x .75

$7.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-3157

Screw, Hex Cap 7/16-20 x 3.25 GR5
(Superseded to 710-3157A)

$10.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3178

Bolt, Carriage, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3206A

Screw, Hex Cap, M8-1.25 x 25 Gr 8.8

$3.99

$

In Stock, Qty 13

0

10

Cub Cadet 710-3207

Screw, Hex Cap, M8-1.25 x 35 Gr 8.8

$

$

Not available

11

Cub Cadet 712-0161

Nut, Hex, #10-24

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 714-0128

Key, Square, 1/4 x 1.0

$4.99

$

In Stock, Qty 6

0

14

Cub Cadet 717-3467

Clutch Assembly, PTO

$830.99

$

In Stock, only 1 left!

0

15

Cub Cadet 720-0302

Knob

$

$

Not available

16

Cub Cadet 723-0457

Seal Ring, Foam Gasket

$

$

Not available

17

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 726-3008

Clip, Cable

$4.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-0159

Washer, Flat 5/16

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, only 4 left!

0

22

Cub Cadet 736-0242

Washer, Bell, .340 x .872 x .06

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0258

Washer, Flat, .385 x 1.0 x .135

$4.49

$

In Stock, only 2 left!

0

24

Cub Cadet 746-3073

Cable, Choke Control

$

$

Not available

25

Cub Cadet 746-3074

Cable, Throttle Control

$

$

Not available

26

Cub Cadet 747-3362

Rod, Rear Belt Retainer

$

$

Not available

28

Cub Cadet 751-0535-9

Fuel Line Hose 9" Length
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

29

Cub Cadet 751-0564

Deflector, Muffler
(Superseded to 751-0564B)

$13.99

$

In Stock, only 4 left!

0

30

Cub Cadet 751-0617

Muffler, Single Inlet
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

31

Cub Cadet 751-0621

Pipe, Exhaust
(Superseded to 751-0621A)

$

$

Not available

32

Cub Cadet 751-3140

Drain, Oil
(Superseded to 951-10517A)

$24.99

$

In Stock, only 2 left!

0

33

Cub Cadet 751-3141-13

Extension Hose, Oil Drain 13" Lg
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

34

Cub Cadet 751-3142

Cap, Oil Drain

$4.49

$

In Stock, Qty 14

0

35

Cub Cadet 756-3060

Pulley, Transmission Drive
(Superseded to 756-3060A)

$97.99

$

Usually ships in 3-6 days

0

39

Cub Cadet KH-M-0841080

Nut, Hex Flange, M8 x 1.25
(Superseded to 712-3086)

$4.49

$

In Stock, only 2 left!

0

40

Cub Cadet KH-12-041-03

Gasket, Exhaust Manifold

$

$

Not available

41

Cub Cadet 736-0250

Washer, Flat

$4.49

$

In Stock, Qty 20+

0
