Z42 (53AC305G100) - Cub Cadet 42" Zero-Turn Mower Crankcase And Crankshaft Parts Diagram

42" Zero-Turn Mower

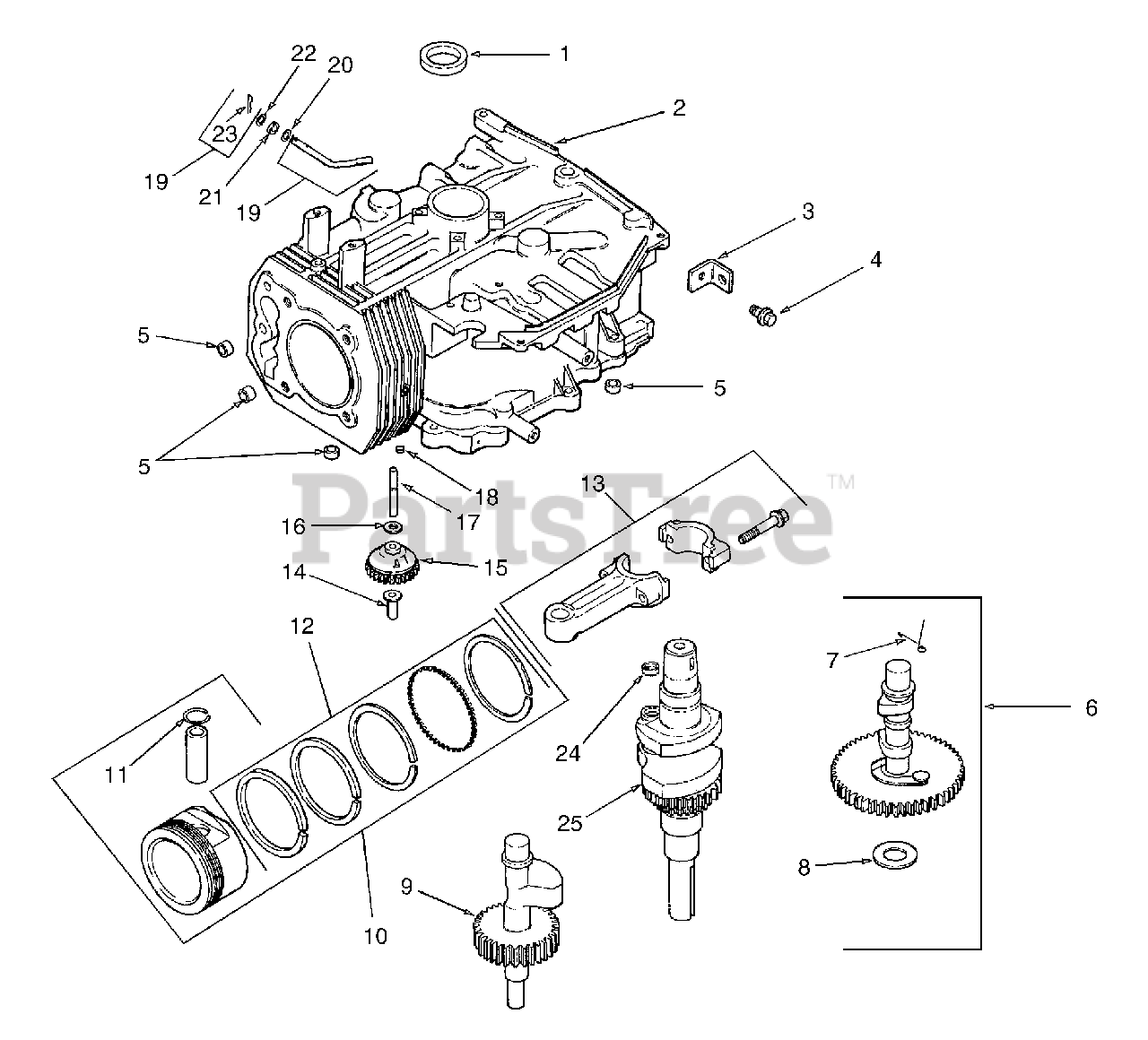

Crankcase And Crankshaft Parts Diagram

  • Title

Cub Cadet KH-41535

Engine, Complete

$

$

Currently unavailable

Cub Cadet KH-12-522-18

Short Block

$1933.99

$

Usually ships in 2-5 days

0

1

Cub Cadet KH-12-032-03

Seal, Crankshaft Oil
(Superseded to KH-12-032-03-S)

$10.99

$

Usually ships in 3-6 days

0

2

Cylinder Block

Note: (Use: Shortblock)

$

$

Not available

3

Cub Cadet KH-12-445-02

Strap, Lifting

$

$

Not available

4

Cub Cadet KH-M-0839025

Screw, Hex Flange, M8 x 1.25 x 25

$

$

Not available

5

Cub Cadet KH-12-380-17

Dowal, Locating
(Superseded to KH-24-380-16-S)

$4.49

$

In Stock, only 3 left!

0

6

Cub Cadet KH-12-755-49

Camshaft Kit

Note: (Includes 7-8)

$

$

Not available

7

Cub Cadet KH-12-089-18

Spring, Actuating
(Superseded to KH-12-089-37-S)

$2.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-12-422-09

Shim, Crankshaft, .032 (Red)
(Superseded to KH-12-422-09-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-13

Shim, Crankshaft, .040 (Black)
(Superseded to KH-12-422-13-S)

$2.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-07

Shim, Crankshaft, .028 (White)
(Superseded to KH-12-422-07-S)

$4.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-08

Shim, Crankshaft, .030 (Blue)
(Superseded to KH-12-422-08-S)

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-12-422-10

Shim, Crankshaft, .034 (Yellow)
(Superseded to KH-12-422-10-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-11

Shim, Crankshaft, .036 (Green)
(Superseded to KH-12-422-11-S)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-12

Shim, Crankshaft, .038 (Gray)
(Superseded to KH-12-422-12-S)

$2.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-144-27

Shaft, Balance

$

$

Not available

10

Cub Cadet KH-12-874-07

Piston, w/Ring Set, Std

Note: (Incl. 11-12)

$

$

Not available

Cub Cadet KH-12-874-08

Piston, w/Ring Set, .010 Over

$

$

Not available

Cub Cadet KH-12-874-09

Piston, w/Ring Set, .020 Over

$

$

Not available

11

Cub Cadet KH-12-018-02

Retainer, Piston Pin

$

$

Not available

12

Cub Cadet KH-12-108-07

Ring Set, Std.
(Superseded to KH-12-108-07-S)

$82.99

$

In Stock, only 1 left!

0

Cub Cadet KH-12-108-08

Ring Set, .010 Over

$

$

Not available

Cub Cadet KH-12-108-09

Ring Set, .020 Over

$

$

Not available

13

Cub Cadet KH-12-067-05

Rod Ass'y, Connecting, Std.

$

$

Not available

Cub Cadet KH-12-067-06

Rod Ass'y, Connecting, .010 Under

$

$

Not available

14

Cub Cadet KH-12-380-01

Pin, Governor Regulating

$

$

Not available

15

Cub Cadet KH-12-043-05

Gear Ass'y, Governor

$

$

Not available

16

Cub Cadet KH-M-631005

Washer, Plain 6mm

$

$

Not available

17

Cub Cadet KH-12-144-02

Shaft, Governor Gear

$

$

Not available

18

Cub Cadet KH-52-139-09

Plug, Cup
(Superseded to KH-52-139-09-S)

$4.99

$

In Stock, only 2 left!

0

19

Cub Cadet KH-12-755-64

Cross Shaft Kit, Governor

Note: (Incl. 23)

$

$

Not available

20

Cub Cadet KH-X-25-102

Washer, Plain 1/4
(Superseded to KH-X-25-102-S)

$2.49

$

In Stock, Qty 5

0

21

Cub Cadet KH-12-032-01

Seal, Governor Cross Shaft

$

$

Not available

22

Cub Cadet KH-M-631015

Washer, Plain 6mm
(Superseded to KH-M-631015-S)

$2.49

$

In Stock, Qty 7

0

23

Cub Cadet KH-12-154-05

Clip, Hitch Pin
(Superseded to KH-12-154-05-S)

$2.99

$

Usually ships in 3-6 days

0

24

Cub Cadet KH-12-139-01

Plug, Cup

$

$

Not available

25

Cub Cadet KH-12-014-30

Crankshaft

Note: (Includes 24)

$

$

Not available

Cub Cadet KH-12-755-82

Gasket Set
(Superseded to KH-12-755-93-S)

$89.99

$

Usually ships in 2-5 days

0
