Z42 (53AC305G100) - Cub Cadet 42" Zero-Turn Mower Complete Transmission Assembly (L.H. Shown) Parts Diagram

42" Zero-Turn Mower

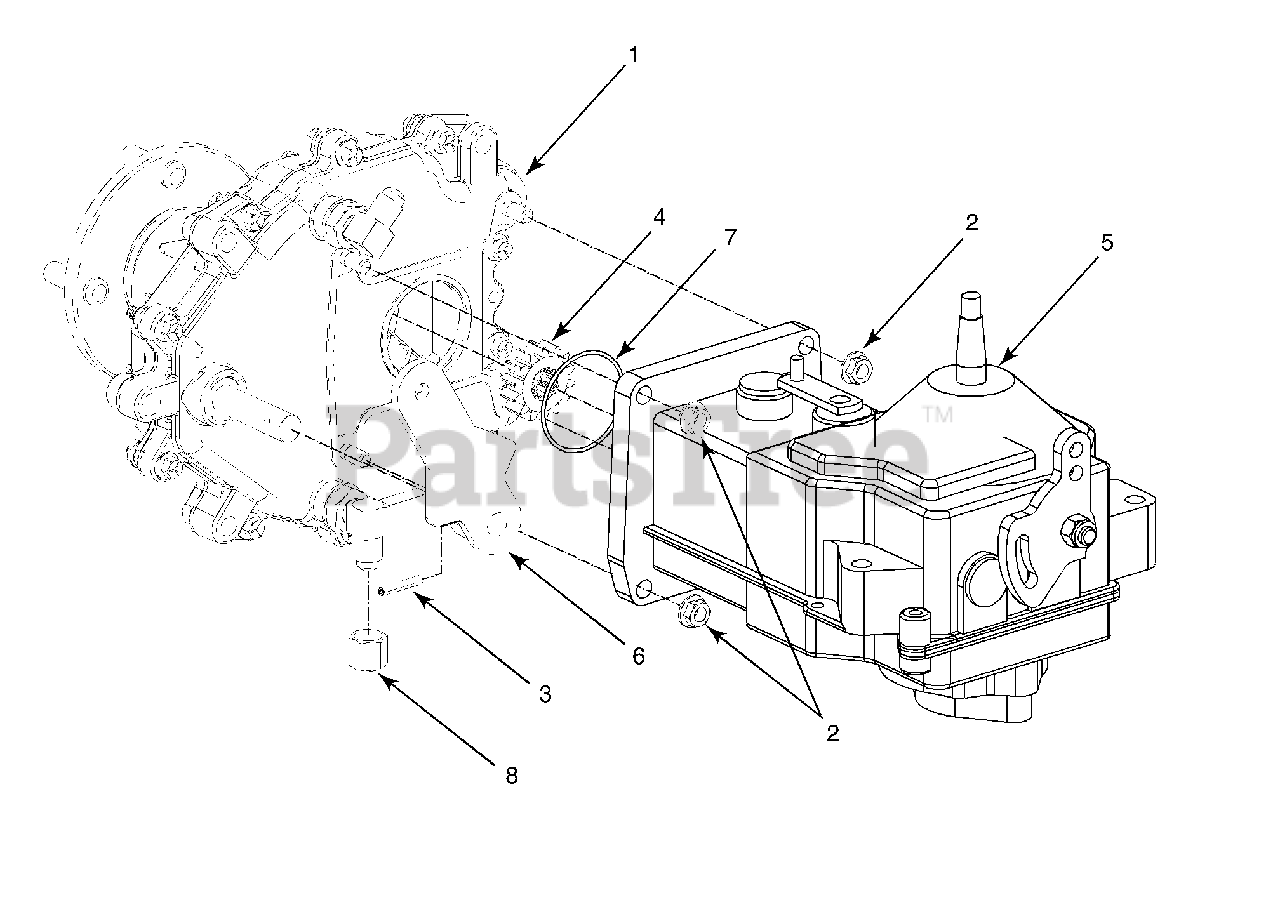

Complete Transmission Assembly (L.H. Shown) Parts Diagram

  • Title
1

Cub Cadet 618-3110A

Drive Ass'y, Complete Final

$

$

Not available

2

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 715-0120

Pin, Spirol, 3/16 x 1.0 HD

$10.99

$

In Stock, only 1 left!

0

4

Cub Cadet 717-3396

Gear, Spur, 14T
(Superseded to 917-3396)

$

$

Not available

5

Cub Cadet 717-3402

Transmission, Hydro: BDR
(Superseded to 917-3455)

$

$

Not available

6

Cub Cadet 718-3053

Lever, Park Brake

$

$

Not available

7

Cub Cadet 721-0343

O-Ring, 2.0 Dia.

$

$

Not available

8

Cub Cadet 727-3125

Nut, Cap, 3/8
(Superseded to 927-3125)

$

$

Not available
