Z2-7 - Husqvarna Z Grass Catcher (2003-04) Top/Frame Assembly 540200853 Parts Diagram

Z Grass Catcher

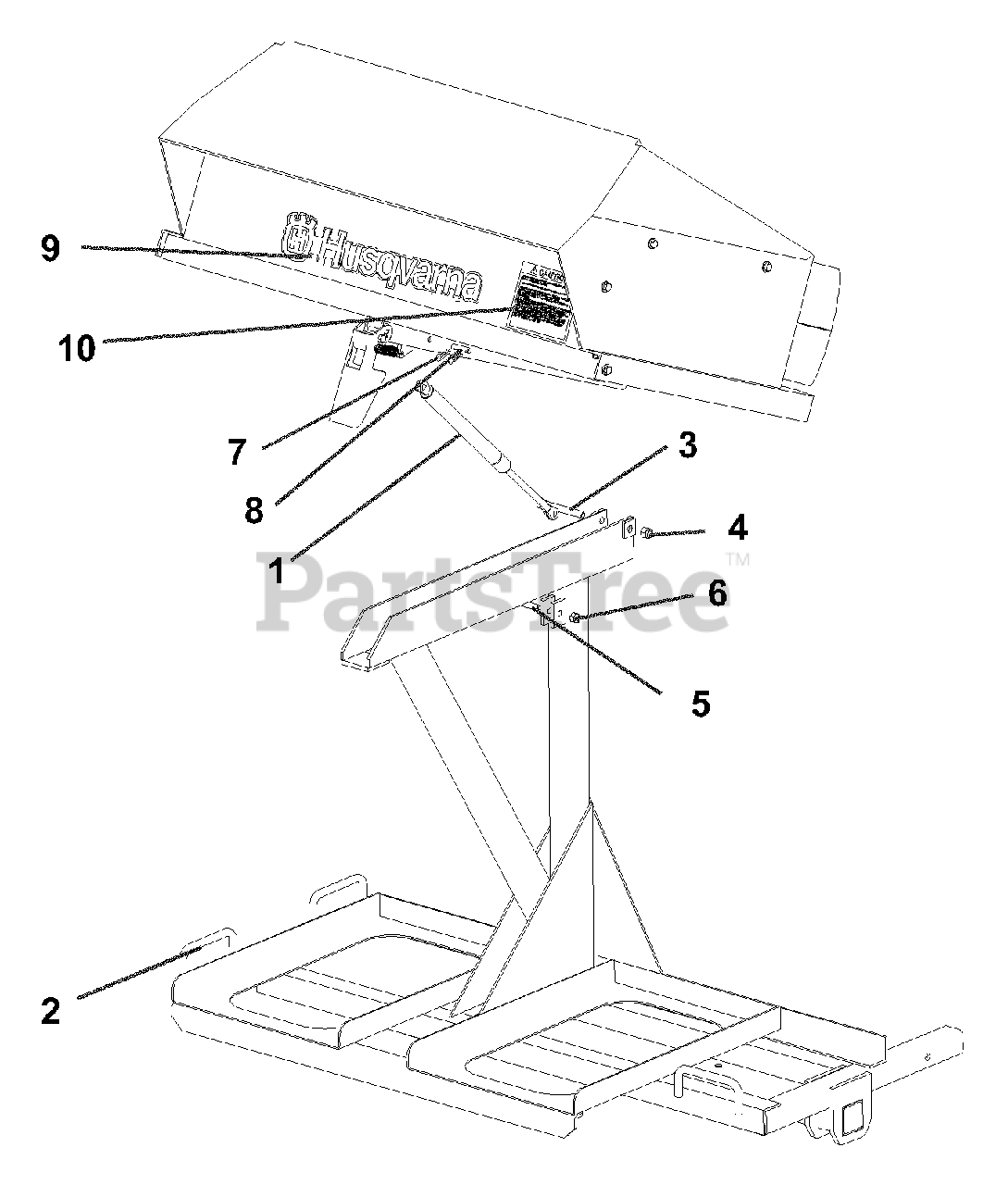

Top/Frame Assembly 540200853 Parts Diagram

  • Title
1

Husqvarna 540092704

Gas Spring

$

$

Not available

$613.99

$

Usually ships in 3-10 days

0

3

Husqvarna 540001765

Bolt, Hex, 3/8"-16 x 3"

$

$

Currently unavailable

4

Husqvarna 540099065

Nut, Hex, Nylon Lock, 3/8"-16
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 540099015

Bolt, Hex, 5/16"-18 x 1-1/2"

$

$

Currently unavailable

6

Husqvarna 540099079

Nut, Hex, Nylon Lock, 5/16"-18
(Superseded to 539990717)

$1.99

$

Usually ships in 3-10 days

0

7

Husqvarna 540099082

Pin, Cotter, #13

$

$

Not available

8

Husqvarna 540099102

Pin, Clevis, 5/16" x 1-1/4" w/ 2 holes

$

$

Currently unavailable

9

Husqvarna 540104804

Decal, Husqvarna
(Superseded to 539104804)

$11.99

$

Usually ships in 3-10 days

0

10

Husqvarna 540200027

Decal, Caution List
(Superseded to 539008318)

$4.99

$

Usually ships in 3-10 days

0

Husqvarna 540200853

Top/Frame Assembly

$

$

Not available
