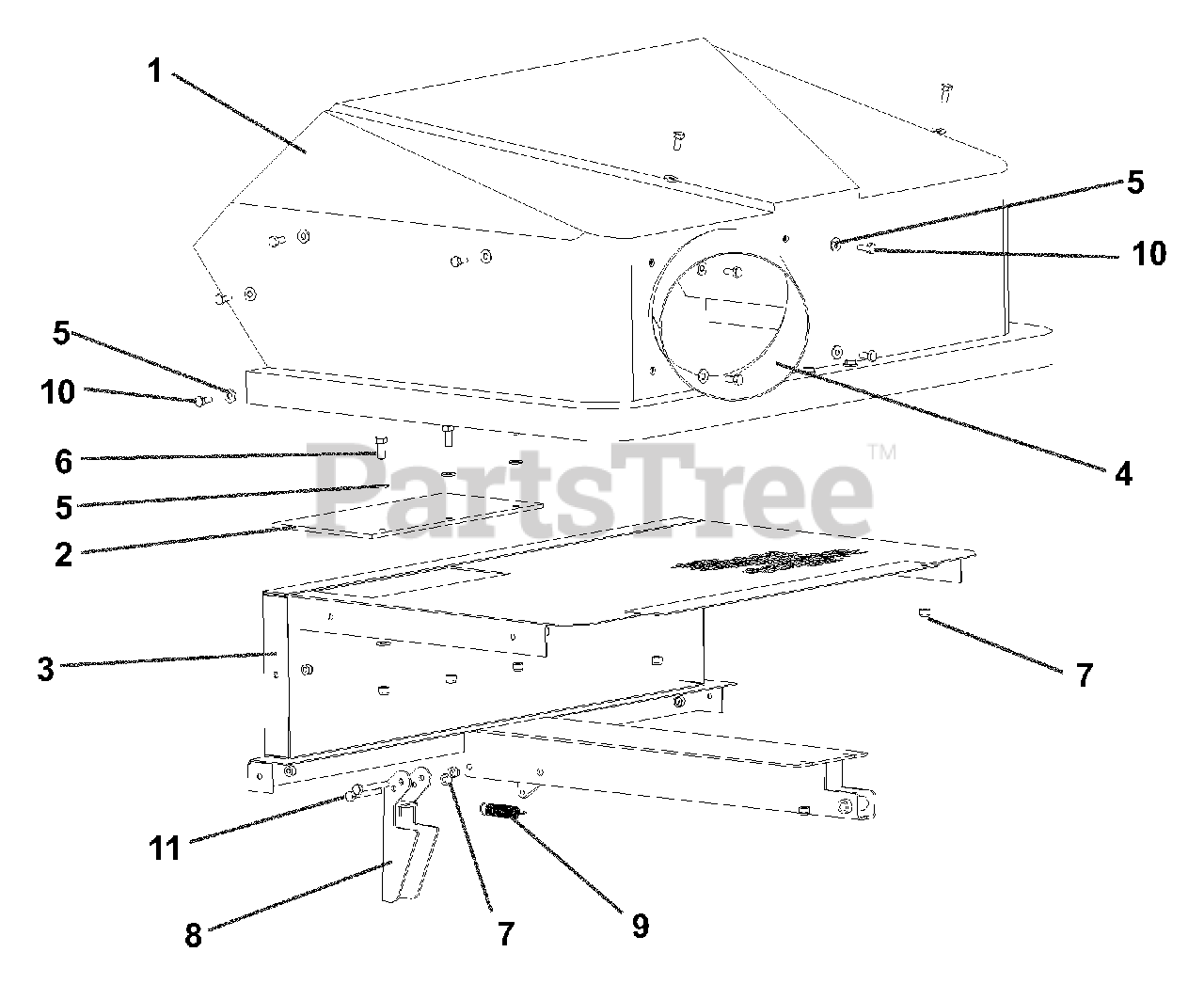

Z2-7 - Husqvarna Z Grass Catcher (2003-04) Top Assembly 540092675 Parts Diagram

Z Grass Catcher

Top Assembly 540092675 Parts Diagram

  • Title

1

Husqvarna 540092720

Top, Plastic

$217.99

$

Usually ships in 3-10 days

0

2

Husqvarna 540092761

Rubber Flap

$11.99

$

Usually ships in 3-10 days

0

3

Husqvarna 540092754

Top Insert

$

$

Not available

4

Husqvarna 540092535

Inlet

$30.99

$

Usually ships in 3-10 days

0

5

Husqvarna 540099074

Washer, Flat, 1/4"

$

$

Currently unavailable

6

Husqvarna 540000122

Bolt, Hex, 1/4"-20 x 3/4", Gd. 5

$

$

Currently unavailable

7

Husqvarna 540099072

Nut, Hex, Nylon Lock, 1/4"-20

$

$

Currently unavailable

8

Husqvarna 540092702

Latch

$17.99

$

Usually ships in 3-10 days

0

9

Husqvarna 540093210

Spring

$8.99

$

Usually ships in 3-10 days

0

10

Husqvarna 540000124

Bolt, Hex, 1/4"-20 x 5/8"

$

$

Currently unavailable

11

Husqvarna 540000134

Bolt, Hex, 1/4"-20 x 2"
(Superseded to 539101313)

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 540093610

Weatherstripping, 1/2" x 1"
(Superseded to 539093610)

Note: Not shown

$

$

Not available

Husqvarna 540093611

Weatherstripping, 1/2" x 2"
(Superseded to 539093611)

Note: Not shown

$

$

Not available

Husqvarna 540092675

Top Assembly

$

$

Not available
