Z1-24OE05 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 020000001 - 029999999) (1992) PISTON AND ROD Parts Diagram

Zero-Turn Mower, Drive Unit Only

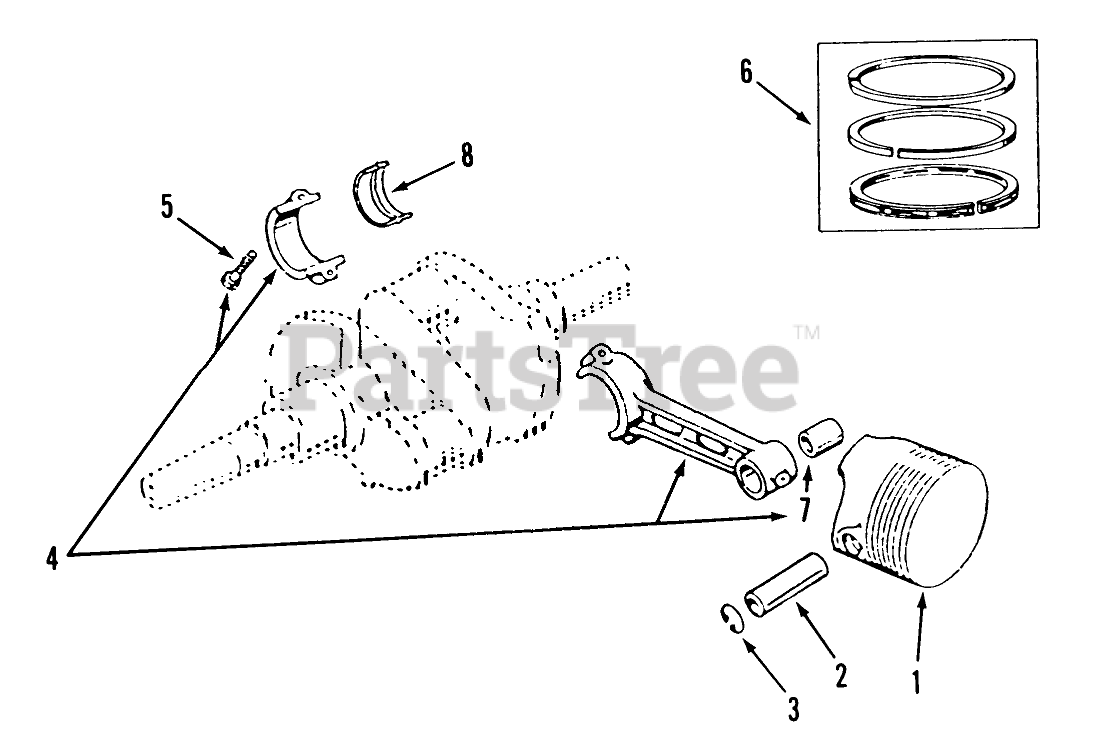

PISTON AND ROD Parts Diagram

1

Piston & Pin (Incl. Pin & Retaining Ring) Spec. D Engine

$

$

Not available

Toro NN10094

Standard
(Superseded to 92-9804)

$621.99

$

Usually ships in 3-6 days

0

Toro NN10096

.010 Oversize
(Superseded to 92-0935)

Note: Not illustrated

$

$

Not available

Toro NN10097

.020 Oversize
(Superseded to 92-0936)

Note: Not illustrated

$

$

Not available

Toro NN10098

.030 Oversize
(Superseded to 92-0937)

Note: Not illustrated

$

$

Not available

Piston & Pin (Incl. Pin & Retaining Ring) Spec. E Engine

Note: Not illustrated

$

$

Not available

Toro NN10265

Standard
(Superseded to 62-2760)

Note: Not illustrated

$

$

Not available

Toro 92-0934

PISTON (.005)

Note: Not illustrated

$

$

Not available

Toro 92-0935

PISTON (.010)

Note: Not illustrated

$

$

Not available

Toro 92-0936

PISTON (.020)

Note: Not illustrated

$

$

Not available

Toro 92-0937

PISTON (.030)

Note: Not illustrated

$

$

Not available

2

Toro 82-0290

PIN - PISTON

$112.99

$

Usually ships in 3-6 days

0

Toro 92-0938

PIN-PISTON

Note: Not illustrated

$

$

Not available

3

Toro NN10344

Retaining Ring
(Superseded to 82-1200)

$

$

Not available

4

Toro 82-0470

Rod-Connecting (Incl. Bolts)

$

$

Not available

5

Toro 82-1470

BOLT-PLACE

$

$

Not available

6

Set-Piston Ring Spec. D Engine

$

$

Not available

Toro 82-0360

RING SET - PISTON, STD

Note: Not illustrated

$

$

Not available

Toro 82-0380

RING SET-PISTON (.020)

Note: Not illustrated

$

$

Not available

Toro 82-0390

RING SET-PISTON (.030)

Note: Not illustrated

$

$

Not available

Toro 82-0400

.030 Oversize
(Superseded to NN10108)

Note: Not illustrated

$50.10

$

In Stock, only 1 left!

0

Set-Piston Ring Spec. E Engine

Note: Not illustrated

$

$

Not available

Toro 92-0939

PISTON RING KIT

Note: Not illustrated

$

$

Not available

Toro 92-0940

PISTON RING KIT (.005)

Note: Not illustrated

$

$

Not available

.010 Oversize

Note: Not illustrated

$

$

Not available

.020 Oversize

Note: Not illustrated

$

$

Not available

.030 Oversize

Note: Not illustrated

$

$

Not available

7

Toro 82-0410

BUSHING-PISTON PIN

$

$

Not available

8

Bearing-Connecting Rod, Half

$

$

Not available

Toro 82-0420

BEARING

Note: Not illustrated

$

$

Not available

Toro 82-0430

BEARING

Note: Not illustrated

$

$

Not available

Toro 82-0440

BEARING

Note: Not illustrated

$

$

Not available

Toro 82-0450

BEARING

Note: Not illustrated

$

$

Not available

Toro 82-0460

BEARING

Note: Not illustrated

$

$

Not available
