Z1-24OE05 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 020000001 - 029999999) (1992) FRAME, REAR HUB AND FRONT WHEEL FORK Parts Diagram

Zero-Turn Mower, Drive Unit Only

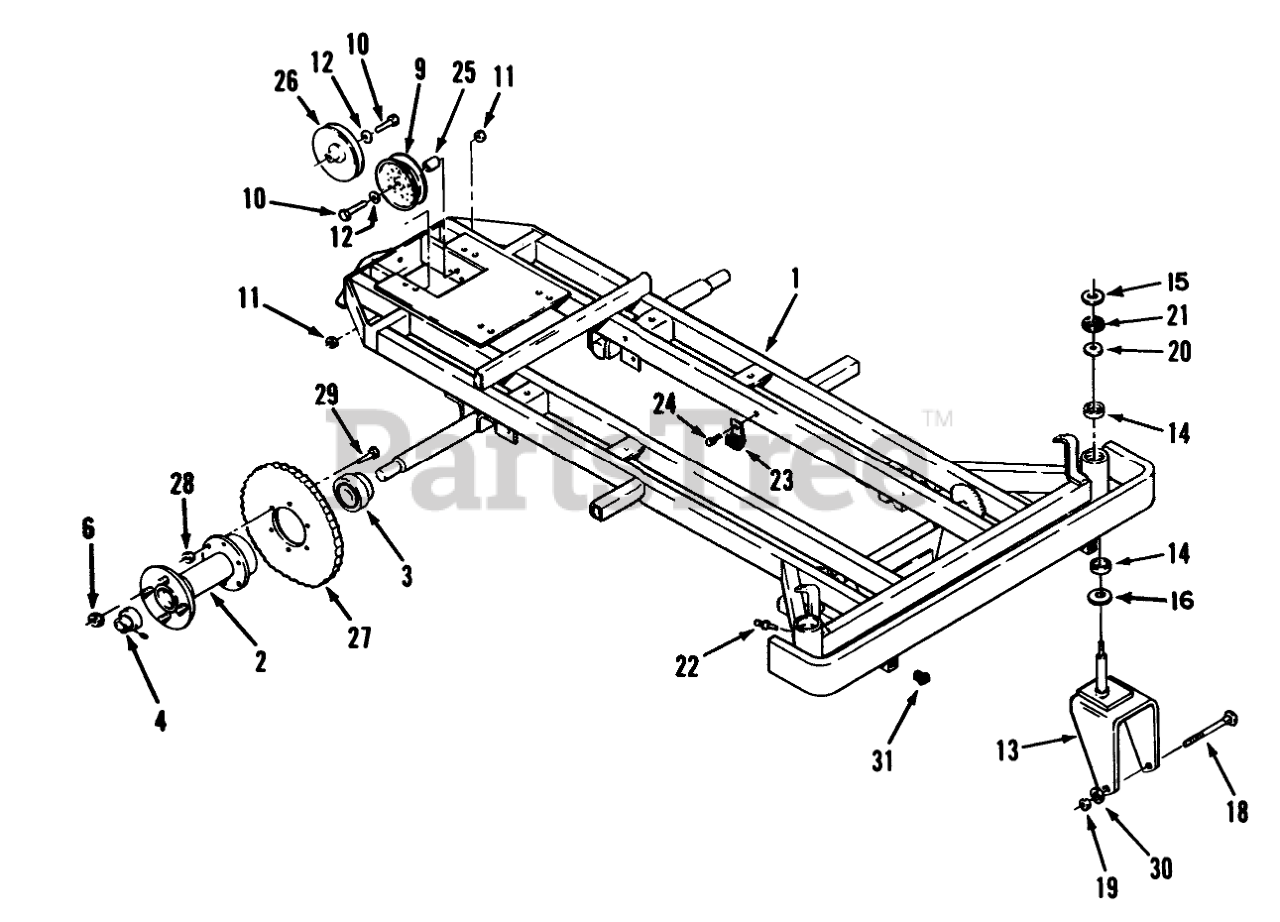

FRAME, REAR HUB AND FRONT WHEEL FORK Parts Diagram

  • Title

1

Toro 78-9180

WLDMT-FRAME B

$

$

Not available

2

Toro 114293

Hub-Rear Wheel
(Superseded to 92-4845)

$

$

Not available

3

Toro 113529

BEARING-REAR AXLE

$

$

Not available

4

Toro 113530

BEARING-REAR AXLE

$

$

Not available

6

Toro 114190

Nut-Lug 1/2-20
(Superseded to 242-50)

$1.99

$

In Stock, Qty 20+

0

9

Toro 113633

PULLEY FLAT B
(Superseded to 113633-03)

$134.99

$

Usually ships in 3-6 days

0

10

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 19

0

12

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

13

Toro 79-4210

Fork-Front Wheel
(Superseded to 79-4210-01)

$389.99

$

Usually ships in 3-6 days

0

14

Toro 79-6050

BUSHING-PIVOT

$156.99

$

Usually ships in 3-6 days

0

15

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

16

Toro 9548

WASHER-THRUST

$

$

Not available

18

Toro 327-15

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

19

Toro 3217-30

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

20

Toro 920251

USE 920251P WASHER

$3.49

$

In Stock, only 2 left!

0

21

Toro 9547

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

22

Toro 302-16

ZERK FITTING

$

$

Not available

23

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

24

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

25

Toro 115101

BUSHING

$

$

Not available

26

Toro 115102

PULLEY-IDLER V

$

$

Not available

27

Toro 114295

SPROCKET-REAR HUB B

$249.99

$

In Stock, only 2 left!

0

28

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 19

0

29

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

30

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

31

Toro 115226

PLUG-SQUARE PLASTIC

$

$

Not available
