Z1-24OE05 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 020000001 - 029999999) (1992) FENDERS AND COVERS Parts Diagram

Zero-Turn Mower, Drive Unit Only

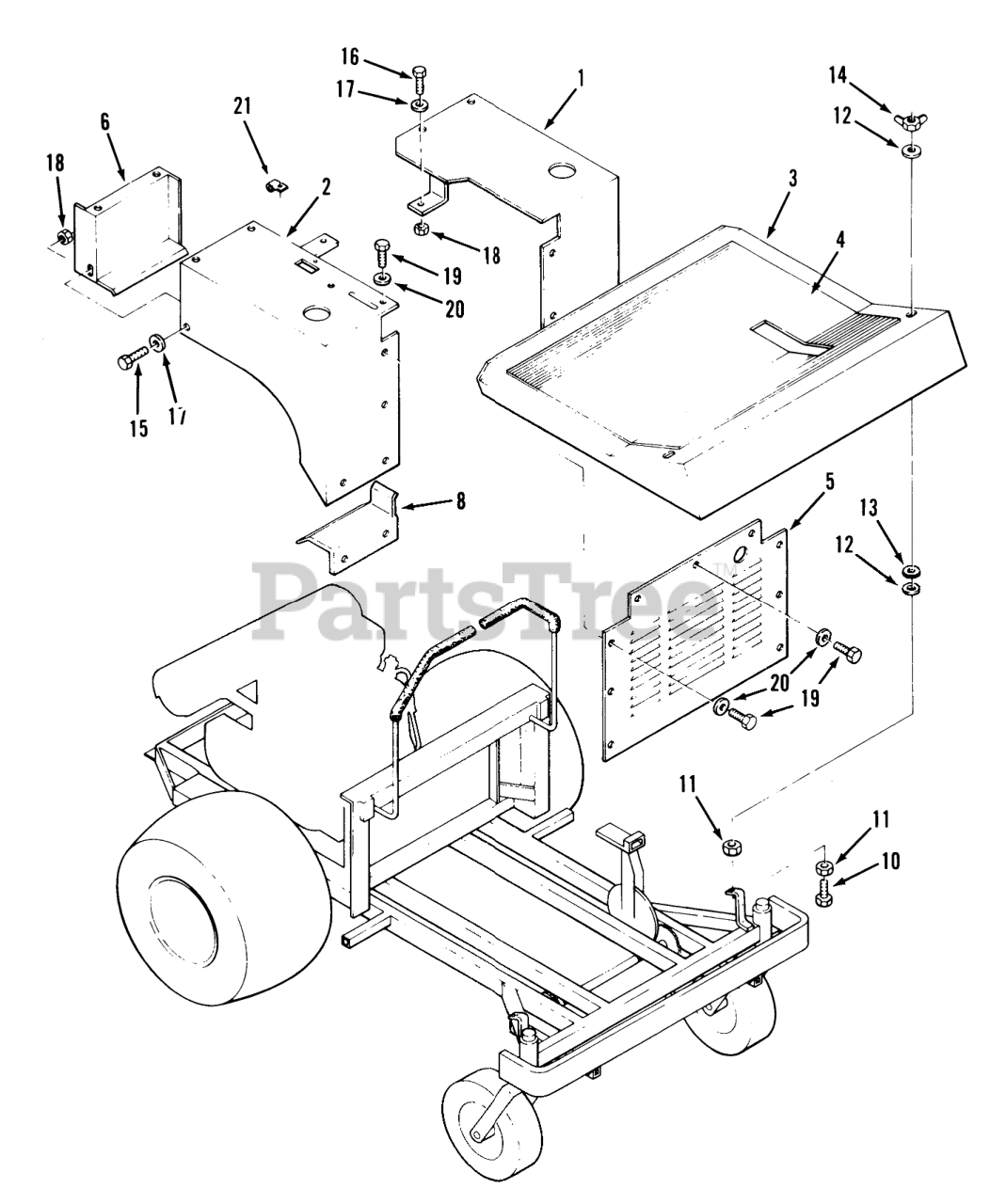

FENDERS AND COVERS Parts Diagram

  • Title

1

Toro 113659

Fender LH
(Superseded to 113659-01)

$

$

Not available

2

Toro 79-5630

FENDER WA RH R

$313.99

$

Usually ships in 3-6 days

0

3

Toro 111891

Floor Pan
(Superseded to 111891-01)

$

$

Not available

4

Toro 114192

Black Carpet
(Superseded to 93-3226)

$191.99

$

Usually ships in 3-6 days

0

5

Toro 79-2710

Front Panel
(Superseded to 79-2710-01)

$

$

Not available

6

Toro 111909

Bracket-Fender Rear RH
(Superseded to 111909-01)

$

$

Not available

Toro 111910

Bracket-Fender Rear LH
(Superseded to 111910-01)

Note: Not illustrated

$

$

Not available

8

Toro 111911

Bracket-Fender Frt RH
(Superseded to 111911-01)

$

$

Not available

Toro 111912

Bracket-Fender Frt LH
(Superseded to 111912-01)

Note: Not illustrated

$

$

Not available

10

Toro 322-41

SCREW-HH
(Superseded to 323-4)

$3.99

$

In Stock, only 3 left!

0

11

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

12

Toro 920249

Washer
(Superseded to 9202494)

$5.99

$

In Stock, only 2 left!

0

13

Toro 107675

WASHER

$3.49

$

In Stock, Qty 18

0

14

Toro 915585

WING NUT

$0.99

$

Usually ships in 3-6 days

0

15

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

16

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

17

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

18

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

19

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

20

Toro 920037

WASHER

$

$

Not available

21

Toro 111357

J-CLIP

$

$

Not available
