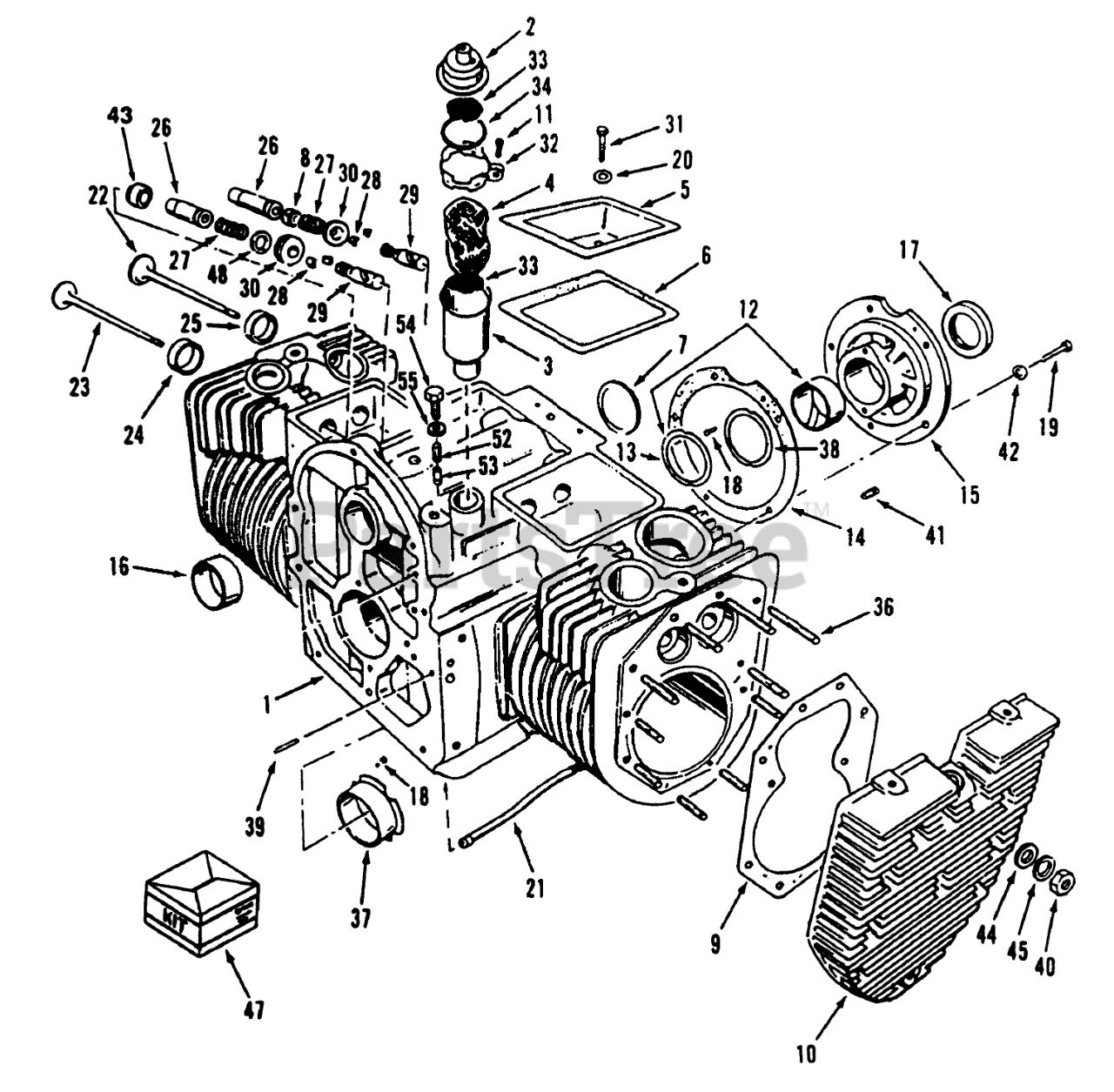

ENGINE CYLINDER BLOCK P224 G SPEC. E Parts Diagram

  • Title

1

Toro 92-0924

Block-Short 24 HP. Spec. E (Incl. Items 3, 7, 13-16, 18, 21, 24-26, 30, 36, 38, & 39)

$

$

Not available

2

Toro 82-0550

BREATHER-CAP AND VALVE

$

$

Not available

3

Toro 82-0540

TUBE-BREATHER

$

$

Not available

4

Toro 57-8580

FILTER

$6.99

$

Usually ships in 3-6 days

0

5

Toro NN10045

VALVE COMPARTMENT

$

$

Not available

6

Toro 82-0260

GASKET-VALVE COVER

$

$

Not available

7

Toro NN10536

Plug
(Superseded to 57-9690)

$8.49

$

Usually ships in 3-6 days

0

8

Toro 82-0270

SEAL-INTAKE VALVE

$

$

Not available

9

Toro 82-0130

GASKET-CYLINDER HEAD

$49.99

$

Usually ships in 3-6 days

0

10

Toro 82-0210

HEAD-CYLINDER

$

$

Not available

11

Toro 82-1480

SCREW-TAPPING, ROUND HEAD

$

$

Not available

12

Toro 57-8050

BEARING KIT (STANDARD SLEEVE)

$236.99

$

Usually ships in 3-6 days

0

Toro 59-0020

BEARING-CRANKSHAFT (.002)

Note: Not illustrated

$

$

Not available

Toro 57-8060

BEARING KIT (.010)

Note: Not illustrated

$

$

Not available

Toro 59-0030

BEARING-CRANKSHAFT (.020)

Note: Not illustrated

$

$

Not available

Toro 59-0040

BEARING-CRANKSHAFT (.030)

Note: Not illustrated

$

$

Not available

13

Toro NN10476

Thrust Washer
(Superseded to 57-8160)

$

$

Not available

14

Toro 57-8010

GASKET

$28.99

$

In Stock, only 2 left!

0

15

Toro 57-8040

Plate-Bearing
(Superseded to 82-0020)

$

$

Not available

16

Toro 57-8000

SLEEVE-BEARING

$153.99

$

Usually ships in 3-6 days

0

17

Toro NN10321

Oil Seal
(Superseded to 57-9590)

$41.99

$

In Stock, only 2 left!

0

18

Toro 59-0730

PIN-DRIVE

$

$

Not available

19

Toro 59-0880

HEX HD CAPSCREW

$

$

Not available

20

Toro NN10359

Washer
(Superseded to 57-9740)

$

$

Not available

21

Toro 82-0480

TUBE-OIL, CRANKCASE

$

$

Not available

22

Toro 82-0220

Intake Valve

$

$

Not available

23

Toro 82-0230

Exhaust Valve
(Superseded to 99-8089)

$

$

Not available

24

Toro 82-0080

INSERT

$

$

Not available

Toro 82-0090

INSERT

Note: Not illustrated

$

$

Not available

Toro 82-0100

INSERT

Note: Not illustrated

$

$

Not available

Toro 82-0110

INSERT

Note: Not illustrated

$

$

Not available

Toro 82-0120

INSERT

Note: Not illustrated

$

$

Not available

25

Toro 82-0160

INSERT-VALVE SEAT

$

$

Not available

Toro 82-0180

INSERT-VAL SEAT

$43.99

$

Usually ships in 3-6 days

0

Toro 92-0925

INSERT-VALVE SEAT, INTAKE

Note: Not illustrated

$

$

Not available

Toro 92-0926

INSERT-VALVE SEAT, INTAKE

Note: Not illustrated

$

$

Not available

Toro 92-0927

INSERT-VALVE SEAT, INTAKE

Note: Not illustrated

$

$

Not available

26

Toro 82-0140

GUIDE-VALVE, EXHAUST

$

$

Not available

Toro 82-0150

GUIDE-VALVE, INTAKE

Note: Not illustrated

$

$

Not available

27

Toro NN10040

Spring-Valve
(Superseded to 57-8250)

$

$

Not available

28

Toro 82-0250

LOCK-VALVE SPRING

$

$

Not available

29

Toro 57-8450

TAPPET

$

$

Not available

Toro 59-0270

.005" Oversize
(Superseded to 59-0260)

Note: Not illustrated

$

$

Not available

30

Toro 57-8270

ROTOCAP

$

$

Not available

31

Toro 82-1380

SCREW - CAP HEX HEAD

$

$

Not available

32

Toro 82-0530

Clamp

$

$

Not available

33

Toro 82-0560

SCREEN-BREATHER TUBE

$

$

Not available

34

Toro 82-0570

SEAL - O-RING

$7.49

$

Usually ships in 3-6 days

0

36

Toro 92-0928

STUD-CYLINDER HEAD

$

$

Not available

Toro 92-0929

Stud-Cylinder Head Top
(Superseded to 82-1230)

Note: Not illustrated

$

$

Not available

Toro 92-0932

Stud-Cylinder Head Mid.
(Superseded to 82-1240)

Note: Not illustrated

$6.99

$

Usually ships in 3-6 days

0

37

Toro 57-8020

KIT-BEARING, SLEEVE
(Superseded to 57-8030)

$

$

Not available

Toro 57-9360

BEARING-CRANKSHAFT

Note: Not illustrated

$

$

Not available

Toro 57-8030

BEARING KIT (.010)

Note: Not illustrated

$

$

Not available

Toro 57-9800

BEARING-CRANKSHAFT

Note: Not illustrated

$

$

Not available

Toro 59-0010

BEARING-CRANKSHAFT

Note: Not illustrated

$

$

Not available

38

Toro NN10023

Shim 0.005"
(Superseded to 57-8170)

$8.49

$

Usually ships in 3-6 days

0

39

Toro NN10336

Pin
(Superseded to 59-0750)

$7.99

$

Usually ships in 3-6 days

0

40

Toro 82-0040

NUT-HEX

$

$

Not available

41

Toro NN10385

Screw
(Superseded to 3247-4)

$5.99

$

Usually ships in 3-6 days

0

42

Toro 82-1310

WASHER-FLAT

$

$

Not available

43

Toro 82-0240

Cap-Exhaust Valve

$

$

Not available

44

Washer-Lock

$

$

Not available

47

Toro NN10923

KIT-GASKET CARB REM

$

$

Not available

48

Toro 82-0070

WASHER

$

$

Not available
