Z1-24OE05 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 020000001 - 029999999) (1992) ELECTRICAL SYSTEM Parts Diagram

Zero-Turn Mower, Drive Unit Only

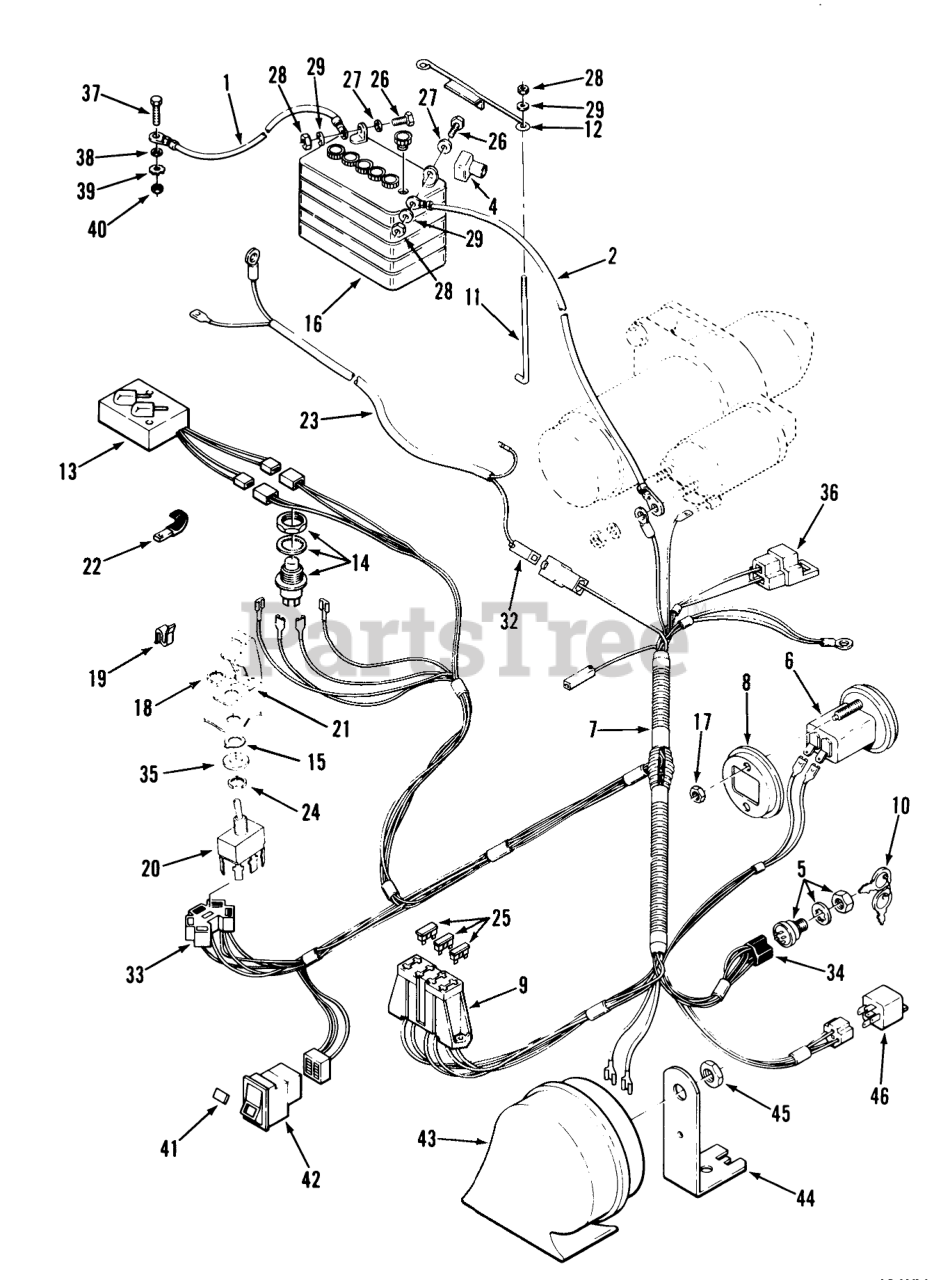

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro 111078

WIRE -BLACK

$27.99

$

Usually ships in 3-6 days

0

2

Toro 115023

ASS'Y-WIRE BATTERY

$

$

Not available

4

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

5

Toro 111216

Switch-Ignition (Incl. #101884 Nut)
(Superseded to 103990)

$28.99

$

In Stock, only 4 left!

0

6

Toro 78-0020

Hourmeter (Incl. Item #8)
(Superseded to 66-2950)

$

$

Not available

7

Toro 116725

MAIN-HARNESS & DIAG

$

$

Not available

8

Toro 78-3320

CLAMP-HOUR METER

$11.99

$

Usually ships in 3-6 days

0

9

Toro 109117

AUTO-FUSEBLOCK TERM

$

$

Not available

10

Toro 116738

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 20+

0

11

Toro 113969

HOOK-BATTERY RETAIN

$16.99

$

In Stock, only 2 left!

0

12

Toro 113010

HOLDDOWN-BATTERY

$27.99

$

In Stock, only 3 left!

0

13

Toro 116237

SWITCH-ASS'Y NEUTRAL

$

$

Not available

14

Toro 116194

SWITCH-PLUNGER

$

$

Not available

15

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

16

Toro 115877

Battery
(Superseded to 104-8162)

$

$

Not available

17

Toro 915962

Hex Nut
(Superseded to 32149-9)

$1.99

$

Usually ships in 3-6 days

0

18

Toro 113179

DISC

$

$

Not available

19

Toro 519337

CLIP-CABLE

$

$

Not available

20

Toro 78-9670

SWITCH-ELECT CLUTCH

$

$

Not available

21

Toro 113050

COVER-PTO SWITCH

$

$

Not available

22

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

23

Toro NN10295

ENG WIRING HARNESS

$

$

Not available

24

Toro 105805

NUT-HEX, SPECIAL
(Superseded to 218-498)

$0.99

$

In Stock, only 2 left!

0

25

Toro 109355

FUSE-BLADE, 15 AMP

$3.99

$

Usually ships in 3-6 days

0

Toro 109102

FUSE-BLADE, 25 AMP

Note: Not illustrated

$5.99

$

In Stock, Qty 17

0

Toro NN10277

FUSE-30 AMP

Note: Not illustrated

$9.99

$

Usually ships in 3-6 days

0

26

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 116497

Nut
(Superseded to 32103-22)

$2.99

$

In Stock, Qty 17

0

29

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

32

Toro NN10282

MALE CONNECTOR

$

$

Not available

33

Toro 105303

CONNECTOR 5 WAY

$5.49

$

Usually ships in 3-6 days

0

34

Toro 105302

CONNECTOR-5 WAY-SERV
(Superseded to 32160-014)

$5.99

$

In Stock, only 2 left!

0

35

Toro 920242

WASHER

$6.49

$

Usually ships in 3-6 days

0

36

Toro 109357

CONNECTOR BODY

$

$

Not available

37

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

38

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

39

Toro 920154

LCKWSHR 1/4 INT TTH

$

$

Not available

40

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

41

Toro 116753

LENS-ENG TEMP

$

$

Not available

42

Toro 116752

SWITCH-TEST

$

$

Not available

43

Toro 116749

HORN

$140.99

$

Usually ships in 3-6 days

0

44

Toro 116755

BRACKET-HORN

$

$

Not available

45

Toro 116797

Nut 1/2-20" (Part of item 43)
(Superseded to 3296-65)

$

$

Not available

46

Toro 116397

RELAY

$40.99

$

In Stock, only 1 left!

0
