Z1-24OE05 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 020000001 - 029999999) (1992) CARBURETOR COMONENTS Parts Diagram
Zero-Turn Mower, Drive Unit Only

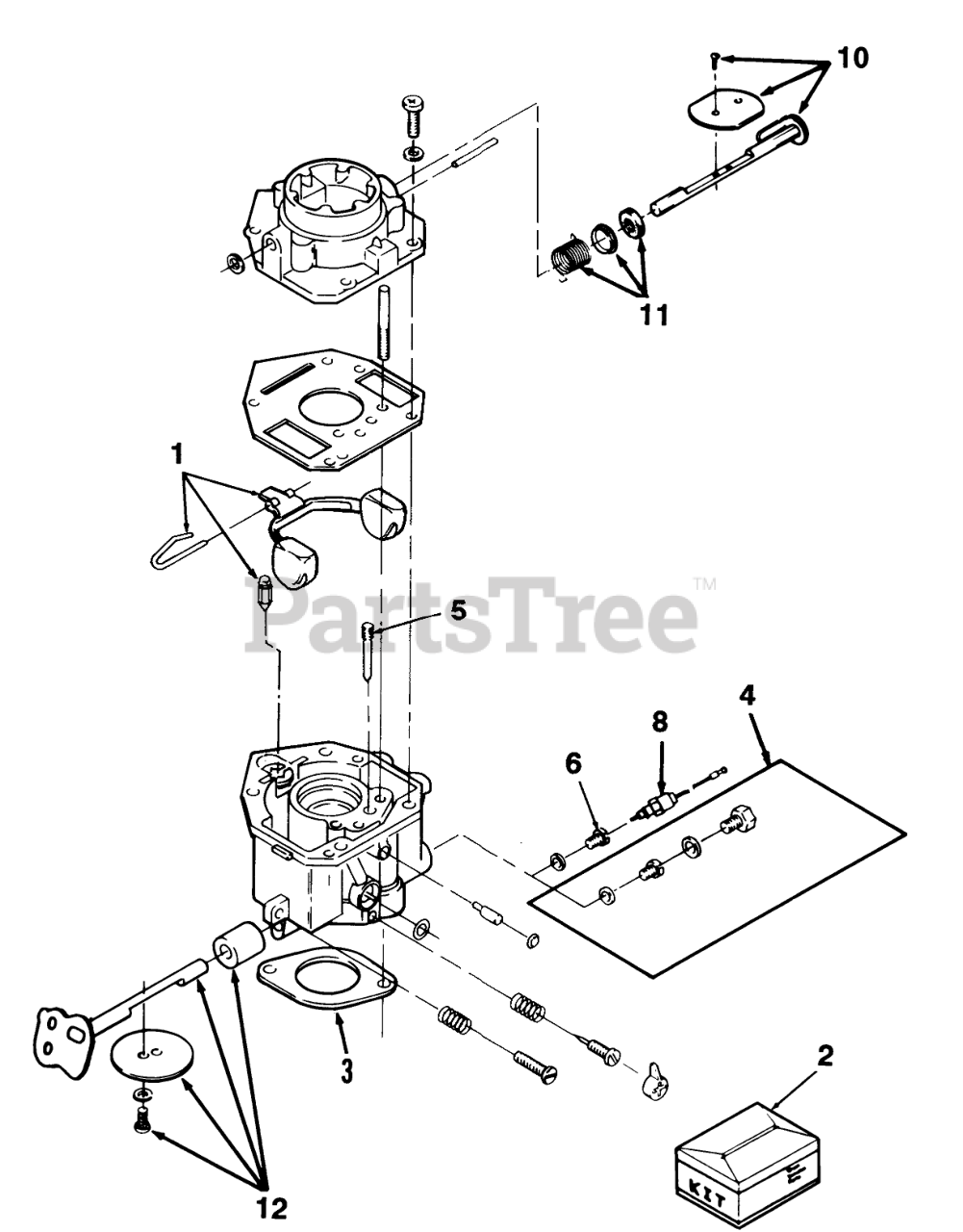

CARBURETOR COMONENTS Parts Diagram
Toro 62-2800
Kit-Float (Incl. Float, Pin, & Valve)
$164.99
$
Usually ships in 3-6 days
Toro 82-0780
Kit-Repair (Incl. Screw & Plug Package, Gasket Package, Float Valve, Idle Adjustment Needle & Spring, Mounting Gaskets, & Idle Limit Cap)
$716.99
$
Usually ships in 3-6 days
Toro 82-0850
GASKET-CARBURETOR
$12.99
$
In Stock, only 1 left!
Toro 82-0740
JET-FIXED, HIGH ALTITUDE
$
$
Not available
Toro 82-0750
JET-IDLE
$
$
Not available
Toro 82-0790
JET-POWER
$
$
Not available
Toro 82-0800
Solenoid-Fuel Cut-Off (Incl. Gasket)
$272.99
$
In Stock, only 1 left!
Toro 72-3860
Kit-Choke Shaft (Incl. Choke Valve, Valve Set Screw, & Air Filter)
$
$
Not available
Toro 72-3870
Kit-Choke Lever (Incl. Choke Lever Ring, Choke Spring, & Choke Collar)
$
$
Not available
Toro 82-0810
Kit-Throttle Shaft (Incl. Valve Set Screw, Air Filter, & Throttle Valve)
$
$
Not available
