Z1-24OE05 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 020000001 - 029999999) (1992) AIR CLEANER AND CARBURETOR Parts Diagram

Zero-Turn Mower, Drive Unit Only

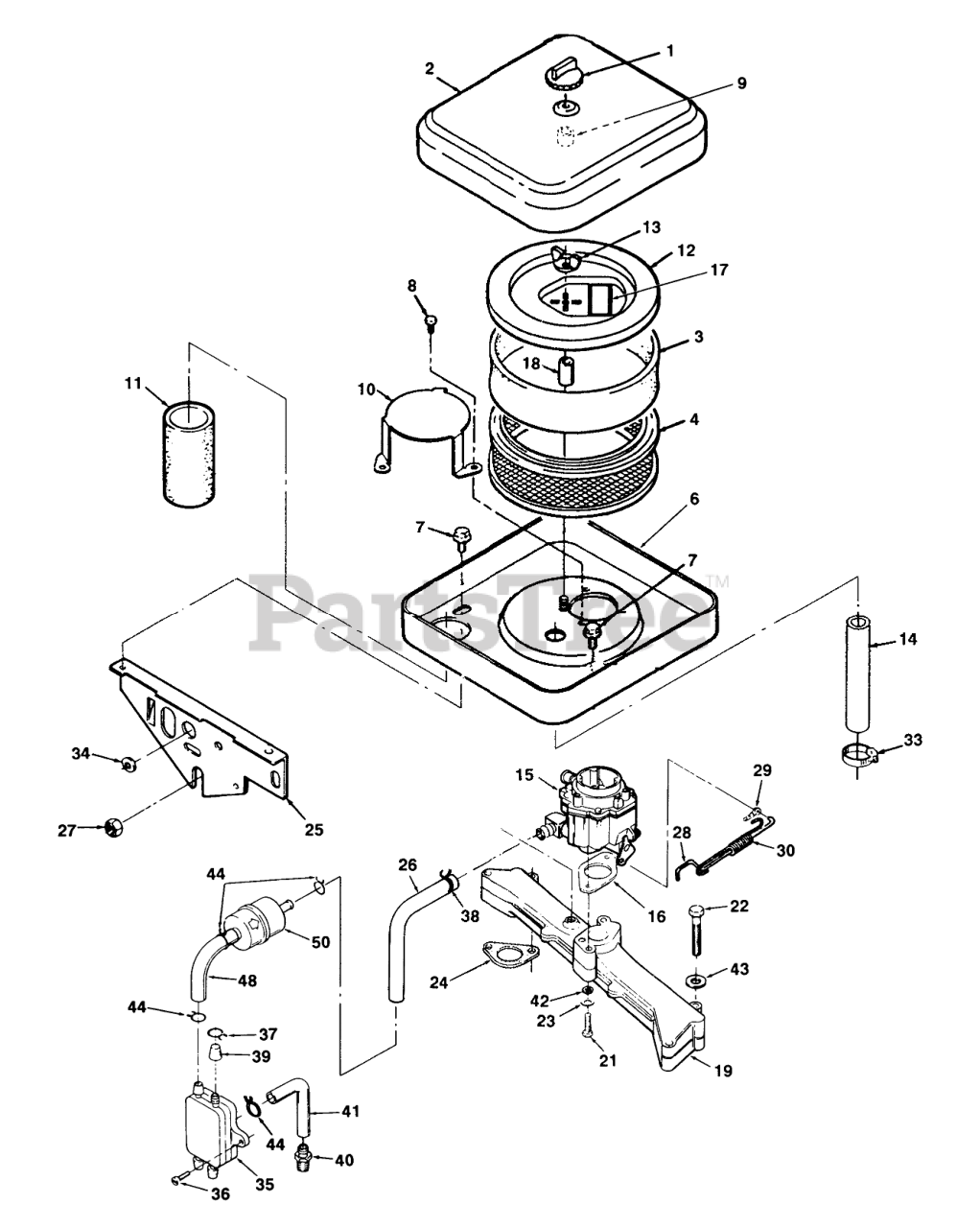

AIR CLEANER AND CARBURETOR Parts Diagram

  • Title

1

Toro 82-1760

Knob
(Superseded to 82-1670)

$

$

Not available

2

Toro 82-0690

COVER-AIR CLEANER

$

$

Not available

3

Toro 82-0670

WRAPPER-AIR CLEANER ELEMENT

$285.99

$

Usually ships in 3-6 days

0

4

Toro 82-0660

ELEMENT-AIR CLEANER

$33.99

$

Usually ships in 3-6 days

0

6

Toro NN10926

HOUSING-AIR CLEANER

$

$

Not available

7

Toro 79-6540

Screw-Hex Washer Hd

$

$

Currently unavailable

8

Toro 82-1770

Screw-HWH
(Superseded to 92-0915)

$

$

Not available

9

Toro 79-6520

SPACER-RUBBER

$

$

Not available

10

Toro 82-0730

Air Deflector Plate
(Superseded to 92-0946)

$

$

Not available

Toro 92-0946

PLATE-AIR DEFLECTOR

Note: Not illustrated

$

$

Not available

11

Toro 82-0700

TUBE-AIR INTAKE

$

$

Not available

12

Toro 92-0914

Cover-Element
(Superseded to 82-0650)

$

$

Not available

13

Toro 92-0913

1/4-20 WING NUT

$

$

Not available

14

Toro 82-1120

HOSE-RUBBER, BREATHER

$

$

Not available

Toro 92-0945

HOSE-BREATHER

Note: Not illustrated

$

$

Not available

15

Toro 82-0770

Carburetor
(Superseded to 93-1676)

$724.99

$

Usually ships in 3-6 days

0

16

Toro 82-0850

GASKET-CARBURETOR

$12.99

$

In Stock, only 1 left!

0

17

Toro 82-0010

DECAL-PERIODIC MAINTENANCE

$

$

Not available

18

Toro 82-0980

SPACER-AIR CLEANER STUD

$

$

Not available

19

Toro 82-0870

MANIFOLD - INTAKE

$765.99

$

Usually ships in 3-6 days

0

21

Toro NN10927

HEX HD CAP SCR

$

$

Not available

22

Toro 82-1430

Screw-Hex Hd Cap
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0

23

Toro 82-1350

WASHER-FLAT

$

$

Not available

24

Toro 82-0860

GASKET-MANIFOLD TO BLOCK

$

$

Not available

25

Toro 82-0720

SUPPORT-AIR CLEANER

$

$

Not available

26

Toro 82-1110

HOSE - FUEL

$

$

Not available

27

Toro 82-1690

NUT

$

$

Not available

28

Toro NN10928

ROD-GOV CONTROL

$

$

Not available

29

Toro 57-9700

CLIP

$5.49

$

In Stock, only 1 left!

0

30

Toro 82-1740

Spring-Governor Rod
(Superseded to NN10928)

$

$

Not available

33

Toro 82-1090

CLAMP-HOSE, BREATHER

$

$

Not available

34

Toro 71-6140

GROMMET

$

$

Not available

35

Toro NN10842

Pump-Fuel (Incl. Hose Clamp & Fuel Cap)

$

$

Not available

37

Toro 57-9550

CLAMP

$

$

Not available

39

Toro 59-0370

CAP-FUEL OUTLET

$

$

Not available

40

Toro 82-1060

CNCTR. - HOSE

$

$

Not available

Toro 82-1070

FITTING-BARB

Note: Not illustrated

$

$

Not available

41

Toro 71-6100

HOSE-VACUUM

$11.99

$

Usually ships in 3-6 days

0

42

Toro 82-1340

WASHER-FLAT

$

$

Not available

43

Toro 82-1310

WASHER-FLAT

$

$

Not available

44

Toro 82-1080

CLAMP-HOSE

$7.49

$

In Stock, only 3 left!

0

48

Toro 71-6120

HOSE

$

$

Not available

50

Toro 71-5960

FILTER-FUEL

$32.99

$

In Stock, Qty 6

0
