Z1-24OE04 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 010000001 - 019999999) (1991) WHEELS AND TIRES Parts Diagram

Zero-Turn Mower, Drive Unit Only

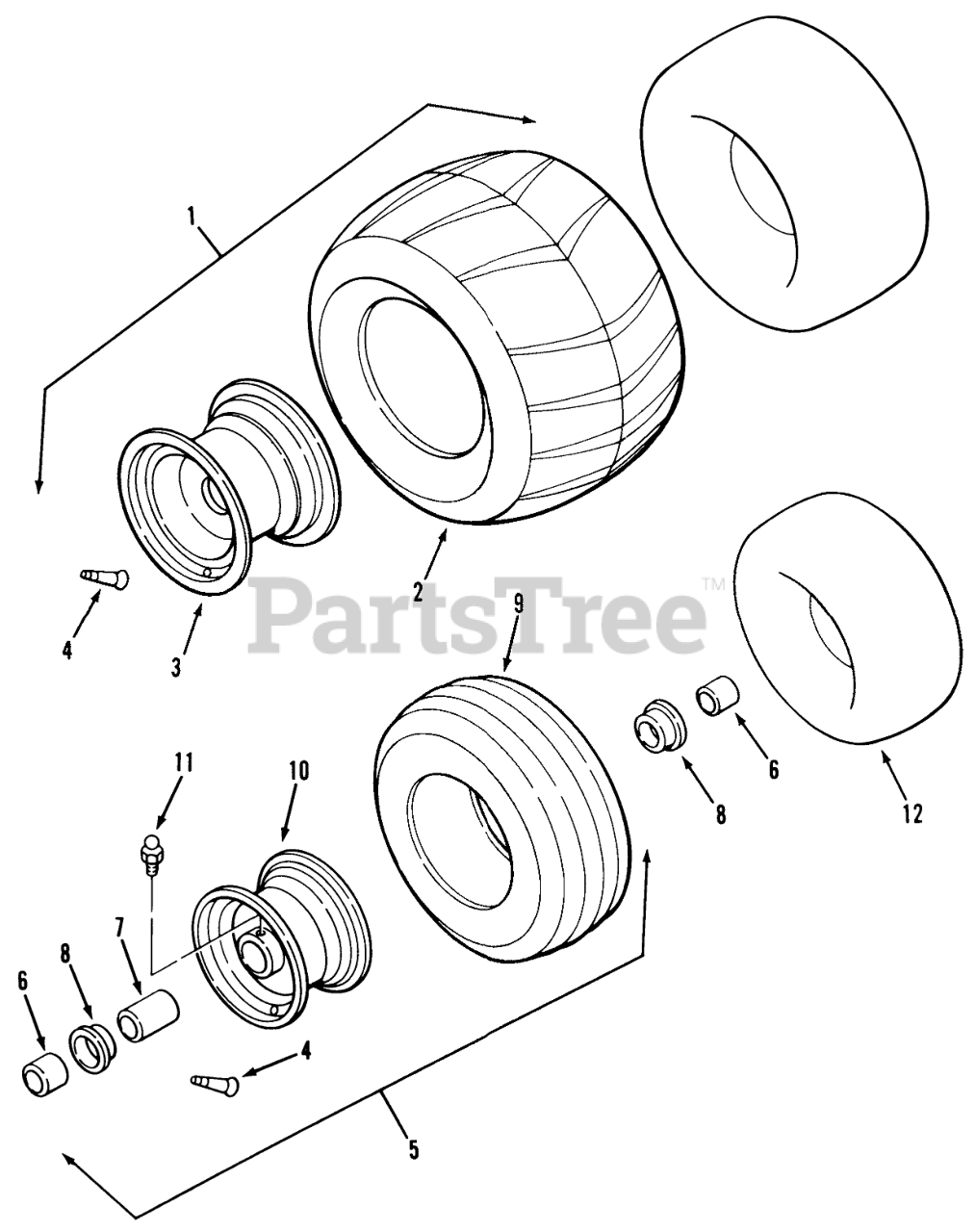

WHEELS AND TIRES Parts Diagram

  • Title

1

Toro 116972

Rear Wheel and Tire 21 x 11.00-8 (Includes items 2, 3, & 4)
(Superseded to 99-5858)

$787.99

$

Usually ships in 3-6 days

0

2

Toro 116973

TIRE 22 X 11.00-8
(Superseded to 121-9072)

$163.99

$

Usually ships in 3-6 days

0

3

Toro 117006

Wheel-Rear, Silver

$

$

Not available

4

Toro 5108

VALVE

$6.99

$

In Stock, Qty 14

0

5

Toro 111921

Front Wheel and Tire Ass-y (Includes items 7, 8, 9 & 10)
(Superseded to 99-5852)

$

$

Not available

6

Toro 100005

Tube-Wheel
(Superseded to 92-1715)

$10.99

$

Usually ships in 3-6 days

0

7

Toro 10204

SPACER FRT WHEEL INN

$

$

Not available

8

Toro 10205

BEARING BALL

$

$

Not available

9

Toro 10157

Front Tire 13 x 5.00-6

$

$

Not available

10

Toro 111916

WHEEL FT SLUV 10239K

$

$

Not available

11

Toro 1030

Zerk

$

$

Not available

12

Toro 5712

INNER TUBE

$

$

Not available
