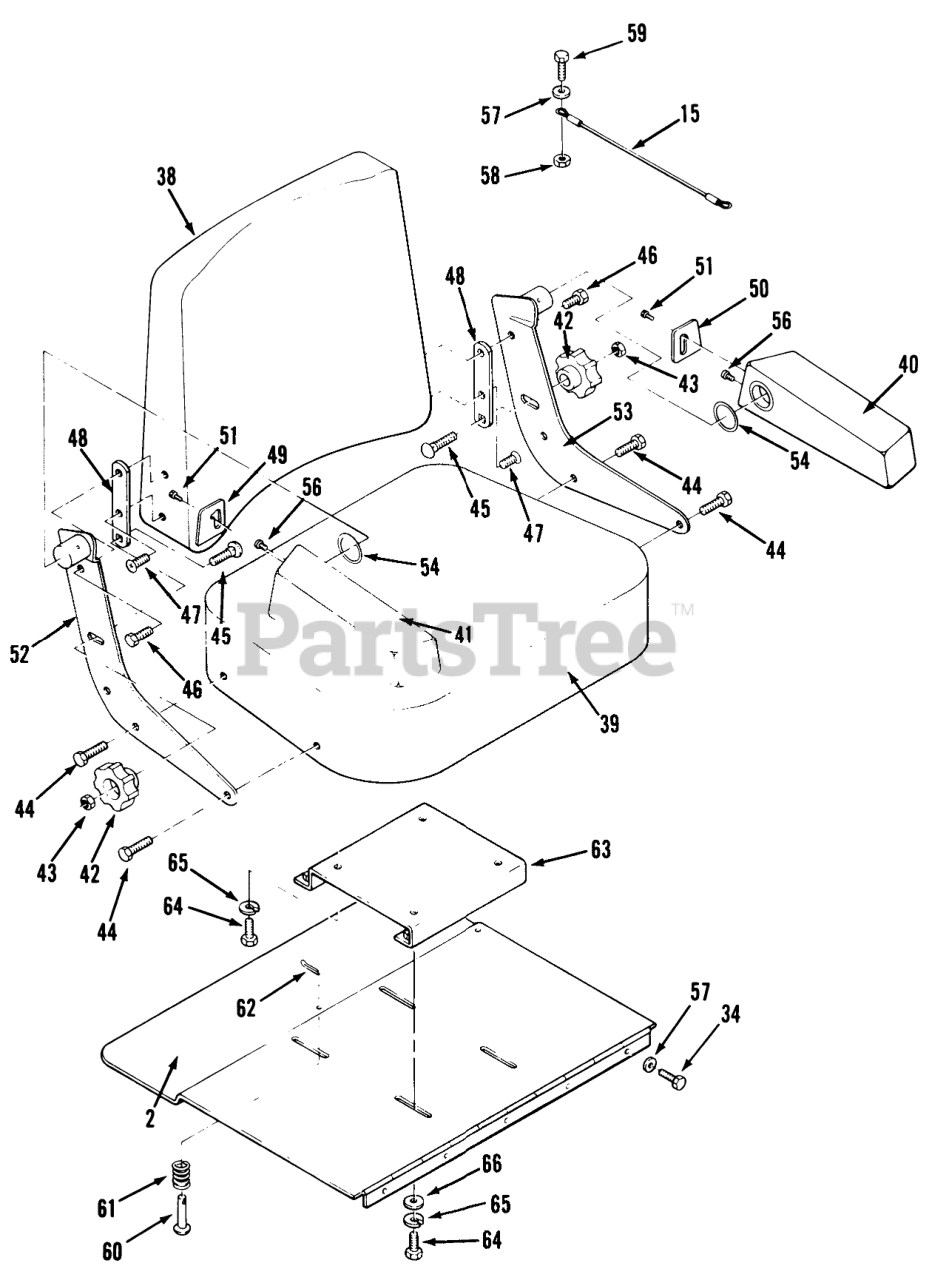

Z1-24OE04 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 010000001 - 019999999) (1991) SEAT Parts Diagram

Zero-Turn Mower, Drive Unit Only

SEAT Parts Diagram

  • Title
2

Toro 78-7800

Bracket-Seat Mounting
(Superseded to 92-4075)

$421.99

$

Usually ships in 3-6 days

0

15

Toro 115850

Cable

$

$

Not available

34

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

38

Toro 40101

Seat Back

$

$

Not available

39

Toro 40102

Seat Bottom

$

$

Not available

40

Toro 40103

ARM REST LH

$

$

Not available

41

Toro 40104

ARM REST RH

$

$

Not available

42

Toro 40105

Knob-Lumbar Control

$

$

Not available

43

Toro 40106

LOCK NUT

$

$

Not available

44

Toro 908058

Bolt
(Superseded to 325-5)

$1.49

$

In Stock, Qty 6

0

45

Toro 900065

Bolt
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0

46

$

$

Not available

47

Toro 908848

Screw-Phillips Hd
(Superseded to 908849)

$

$

Not available

48

Toro 40223

Lumbar Friction Plate

$

$

Not available

49

Toro 40224

ARM REST PLATE RH

$

$

Not available

50

Toro 40225

ARM REST PLATE LH

$

$

Not available

51

Toro S102

SCREW PAN HD 10-16X5

$

$

Not available

52

Toro 40227

Back Support LH

$

$

Not available

53

Toro 40226

BACK SUPT LH

$

$

Not available

54

Toro W114

WASHER

$

$

Not available

56

Toro 911037

SHCS 1/4-20 X 1/2

$

$

Not available

57

Toro 920037

WASHER

$

$

Not available

58

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 10

0

59

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

60

$7.99

$

Usually ships in 3-6 days

0

61

Toro 116195

SPRING-COMPRESSION

$

$

Not available

62

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

63

Toro 113585

ASS'Y-SUPPORT SEA B

$

$

Not available

64

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

65

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

66

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 14

0

Toro 113698

Seat Assy (Includes all items except 2, 34, 57, & 60 thru 66)

$

$

Not available
