Z1-24OE04 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 010000001 - 019999999) (1991) CRANKSHAFT, CAMSHAFT & FLYWHEEL Parts Diagram

Zero-Turn Mower, Drive Unit Only

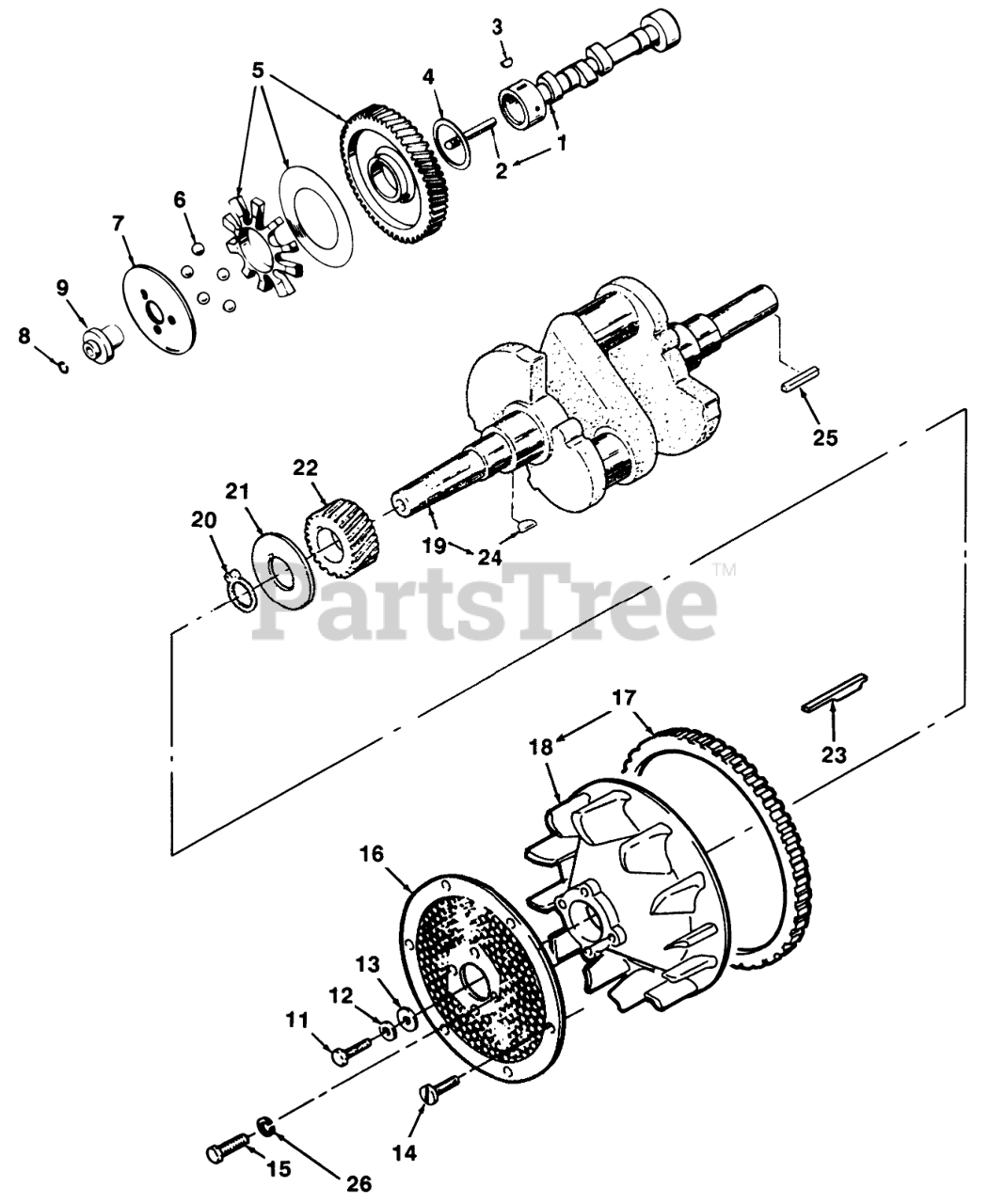

CRANKSHAFT, CAMSHAFT & FLYWHEEL Parts Diagram

  • Title

1

Toro 82-0880

Camshaft (Includes Center Pin)

$

$

Not available

2

Toro 59-0400

PIN-CENTER

$

$

Not available

3

Toro 57-9660

KEY

$7.99

$

Usually ships in 3-6 days

0

4

Toro 57-8230

WASHER-THRUST

$

$

Not available

5

Toro 57-8210

Camshaft Gear (Includes Plate and Spacer)

$

$

Not available

6

Toro 57-9640

BEARING

$

$

Not available

7

Toro 59-0450

CUP-GOVERNOR

$

$

Not available

8

Toro 57-9090

RING

$

$

Not available

9

Toro 57-9130

HUB-GOVERNOR CUP

$

$

Not available

11

Toro 57-8150

SCREW

$

$

Not available

12

Toro 82-1320

WASHER-FLAT

$

$

Not available

13

Toro 59-0810

WASHER-FLAT

$

$

Not available

14

Toro NN10409

Bolt
(Superseded to 71-6340)

$

$

Not available

15

Toro 59-1120

HX HD LOCK CAPSCREW

$

$

Not available

16

Toro 71-5900

AIR INLET SCREEN
(Superseded to 79-6440)

$166.99

$

Usually ships in 3-6 days

0

17

Toro 57-8110

Ring Gear
(Superseded to 71-6360)

$

$

Not available

18

Toro 82-0610

Flywheel (Includes Ring Gear)

$1845.99

$

Usually ships in 3-6 days

0

19

Toro NN10026

Crankshaft (Includes Keys)

$576.99

$

In Stock, only 2 left!

0

20

Toro 57-9710

RING

$

$

Not available

21

Toro 57-8140

WASHER

$

$

Not available

22

Toro 57-8130

GEAR

$

$

Not available

23

Toro 71-6190

KEY-FLYWHEEL

$

$

Not available

24

Toro 57-9660

KEY

$7.99

$

Usually ships in 3-6 days

0

25

Toro NN10331

Key
(Superseded to 82-1160)

$

$

Not available

26

Toro 82-1630

WASHER - LOCK (5/16")

$

$

Not available
