Z1-24OE04 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 010000001 - 019999999) (1991) CHOKE LINKAGE Parts Diagram

Zero-Turn Mower, Drive Unit Only

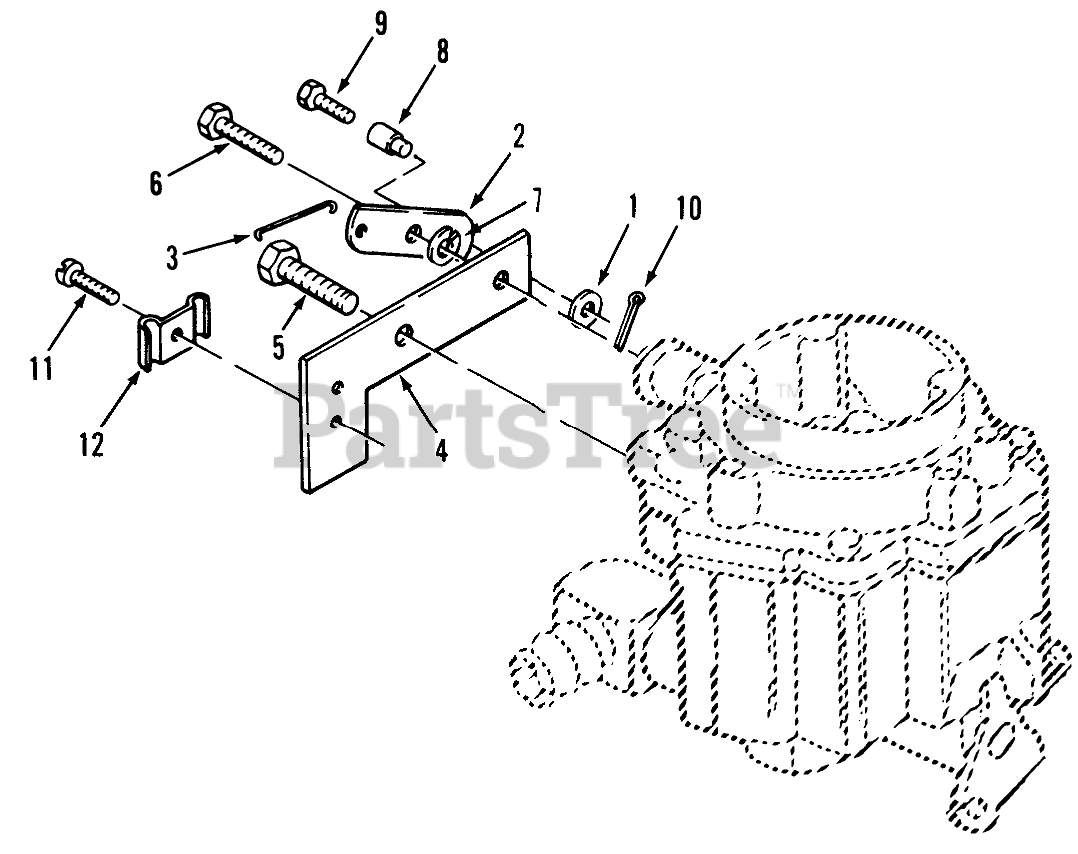

CHOKE LINKAGE Parts Diagram

  • Title
1

Toro 59-0850

Washer

$

$

Not available

2

Toro 59-0460

SWIVEL-CHOKE

$

$

Not available

3

Toro 57-9180

LINK-CHOKE

$

$

Not available

4

Toro 59-0470

BRACKET

$

$

Not available

5

Toro 72-3880

SCREW-HWH

$

$

Not available

6

Toro 59-1020

BOLT-SHOULDER

$

$

Not available

7

Toro 82-1660

WASHER-LOCK

$

$

Not available

8

Toro 57-9170

SWIVEL

$

$

Not available

9

Toro 72-3890

SCREW

$

$

Not available

10

Toro 59-0720

PIN-COTTER

$

$

Not available

11

Toro 72-3900

SCREW-TAPPING

$

$

Not available

12

$

$

Not available
