Z1-24OE04 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 010000001 - 019999999) (1991) BLOWER HOUSING ASSEMBLY Parts Diagram

Zero-Turn Mower, Drive Unit Only

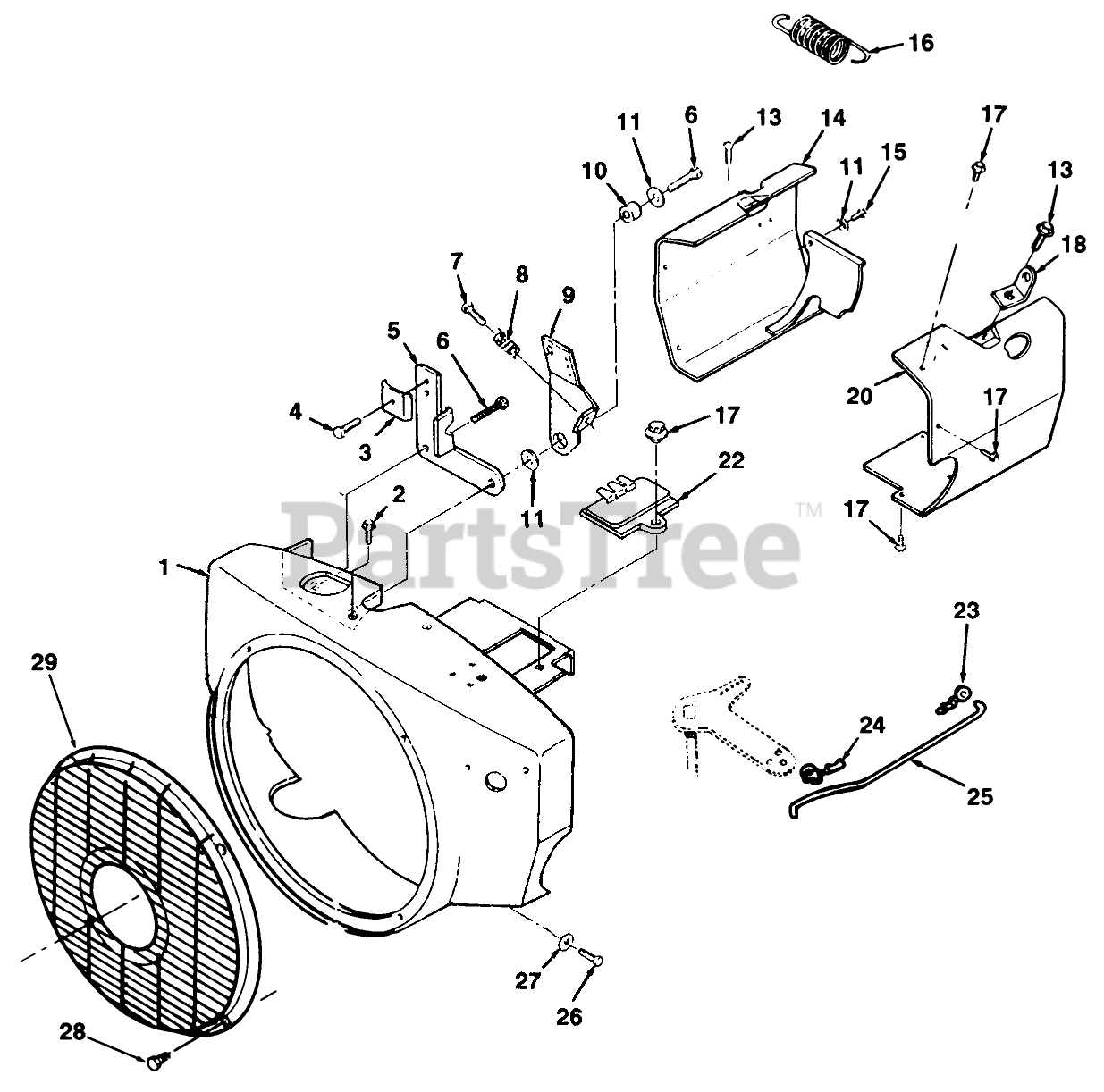

BLOWER HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 82-0630

HOUSING - BLOWER

$682.99

$

Usually ships in 3-6 days

0

2

Toro 59-1100

SCREW-HWH

$

$

Not available

3

$

$

Not available

4

Toro 72-3900

SCREW-TAPPING

$7.99

$

Usually ships in 3-6 days

0

5

Toro 57-9150

BRACKET-GOVERNOR

$

$

Not available

6

Toro 59-1010

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

7

Toro 59-1030

SCREW-TAP

$

$

Not available

8

Toro 59-0430

SPRING

$

$

Not available

9

$

$

Not available

10

Toro 57-9120

BUSHING

$8.49

$

Usually ships in 3-6 days

0

11

Toro 59-0830

WASHER-FLAT

$

$

Not available

13

Toro 82-1600

SCREW-HWH

$

$

Not available

14

Toro 82-0600

HOUSING - CYL AIR, LH

$

$

Not available

15

Toro 59-0980

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

16

Toro 57-9100

SPRING

$

$

Not available

17

Toro 59-1080

SCREW-HWH

$5.99

$

Usually ships in 3-6 days

0

18

Toro 71-6080

BRACKET-LIFTING

$27.99

$

Usually ships in 3-6 days

0

20

Toro 82-0640

HOUSING - CYL AIR, RH

$80.99

$

Usually ships in 3-6 days

0

22

Toro 57-9430

REGULATOR
(Superseded to 117-2742)

$256.99

$

In Stock, only 2 left!

0

23

$

$

Not available

24

$5.99

$

Usually ships in 3-6 days

0

25

Toro NN10928

ROD-GOV CONTROL

$

$

Not available

26

Toro NN10931

Screw-Tapping
(Superseded to 82-1780)

$

$

Not available

27

Toro 59-0820

WASHER-FLAT

$

$

Not available

28

Toro 82-1590

SCREW-PAN HEAD

$

$

Not available

29

Toro 82-0620

GUARD-STATIONARY

$140.99

$

Usually ships in 3-6 days

0
