Z1-24OE03 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1990) TRANSMISSION DRIVE Parts Diagram

Zero-Turn Mower, Drive Unit Only

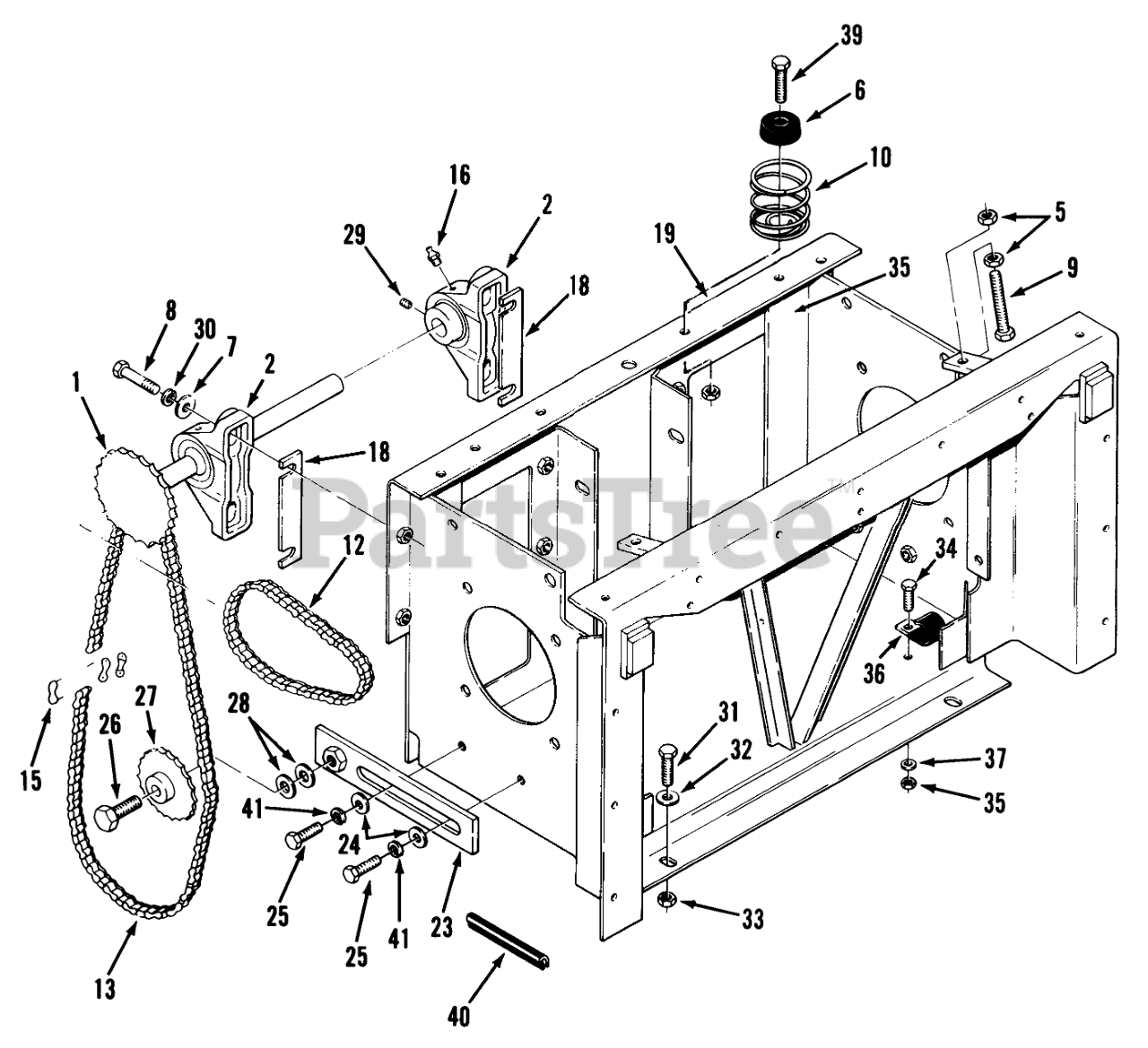

TRANSMISSION DRIVE Parts Diagram

  • Title
1

Toro 113671

ASSY-JACKSHAFT PLT

$

$

Not available

2

Toro 113531

Pillow Block Bearing (Includes items 16 & 29)

$

$

Not available

5

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

6

Toro 116839

BUMPER

$

$

Not available

7

Toro 908039

Bolt
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

8

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

9

Toro 911452

Hex Hd. Mach. Screw 5/16-18 x 2-1/4
(Superseded to 322-11)

$1.49

$

In Stock, Qty 20+

0

10

Toro 114496

SPRING

$

$

Not available

12

Toro 113691

CHAIN-#50 PRIMARY

$

$

Not available

13

Toro 116735

ROLLER-CHAIN #50 SEC

$

$

Not available

15

Toro 109002

CONNECTING LINK
(Superseded to 2710-16)

$8.49

$

Usually ships in 3-6 days

0

16

Toro 113353

Fitting-Grease
(Superseded to 302-2)

$2.49

$

In Stock, only 2 left!

0

18

Toro 113567

SHIM-PILLOW BLOCK

$

$

Not available

19

Toro 116457

Transaxle Frame
(Superseded to 116888)

$2242.99

$

Usually ships in 3-6 days

0

23

Toro 112304

ASSY-CHAIN TENSIO B

$

$

Not available

24

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

25

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

26

Toro 908086

HEX HD CAP SCREW

$

$

Not available

27

Toro 111887

IDLER SPROCKET 20288

$

$

Not available

28

Toro 920013

WASHER
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 5

0

29

Toro 909848

SCREW-SET
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

30

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

31

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

32

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

33

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 19

0

34

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

35

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 11

0

36

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

37

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

39

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

40

Toro 115200

EDGE TRIM

$

$

Not available

41

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0
