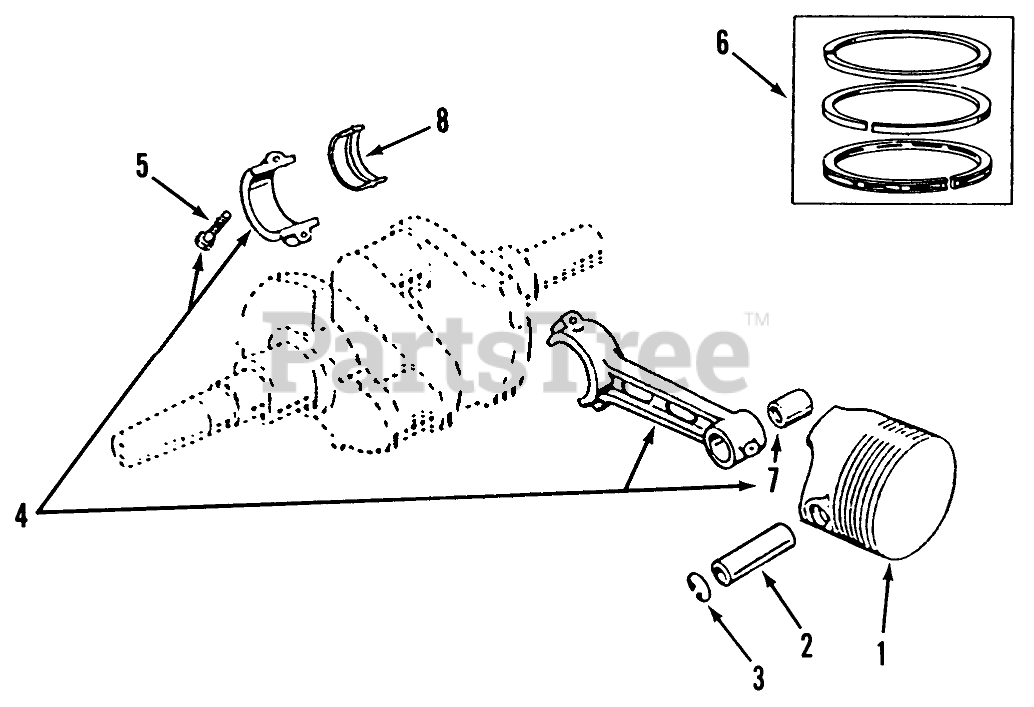

Z1-24OE03 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1990) PISTON AND ROD Parts Diagram

Zero-Turn Mower, Drive Unit Only

PISTON AND ROD Parts Diagram

  • Title

1

Piston and Pin (includes Pin and Retaining Ring)

$

$

Not available

Toro NN10094

Standard
(Superseded to 92-9804)

$592.99

$

Usually ships in 3-6 days

0

Toro NN10095

PISTON .005" OVERSZ

$

$

Not available

Toro NN10096

.010 Oversize
(Superseded to 92-0935)

$

$

Not available

Toro NN10097

.020 Oversize
(Superseded to 92-0936)

$

$

Not available

Toro NN10098

.030 Oversize
(Superseded to 92-0937)

$

$

Not available

Toro NN10099

.040 Oversize

$

$

Not available

2

Toro NN10087

Piston Pin
(Superseded to 82-0290)

$107.99

$

Usually ships in 3-6 days

0

3

Toro NN10344

Retaining Ring
(Superseded to 82-1200)

$

$

Not available

4

Toro NN10119

Connecting Rod (Includes Bolts)
(Superseded to 82-0470)

$

$

Not available

5

Toro NN10386

Rod Cap Bolt
(Superseded to 82-1470)

$

$

Not available

6

Piston Ring Set:

$

$

Not available

Toro NN10107

Standard
(Superseded to 82-0360)

$

$

Not available

Toro NN10108

RING SET .005"

$50.10

$

In Stock, only 1 left!

0

Toro NN10109

.010 Oversize
(Superseded to 82-0370)

$

$

Not available

Toro NN10110

.020 Oversize
(Superseded to 82-0380)

$

$

Not available

Toro NN10111

.030 Oversize
(Superseded to 82-0390)

$

$

Not available

Toro NN10112

.040 Oversize

$

$

Not available

7

Toro NN10113

Piston Pin Bushing
(Superseded to 82-0410)

$

$

Not available

8

Connecting Rod Bearing Half:

$

$

Not available

Toro NN10114

Standard
(Superseded to 82-0420)

$

$

Not available

Toro NN10115

.002 Undersize
(Superseded to 82-0430)

$

$

Not available

Toro NN10116

.010 Undersize
(Superseded to 82-0440)

$

$

Not available

Toro NN10117

.020 Undersize
(Superseded to 82-0450)

$

$

Not available

Toro NN10118

.030 Undersize
(Superseded to 82-0460)

$

$

Not available
