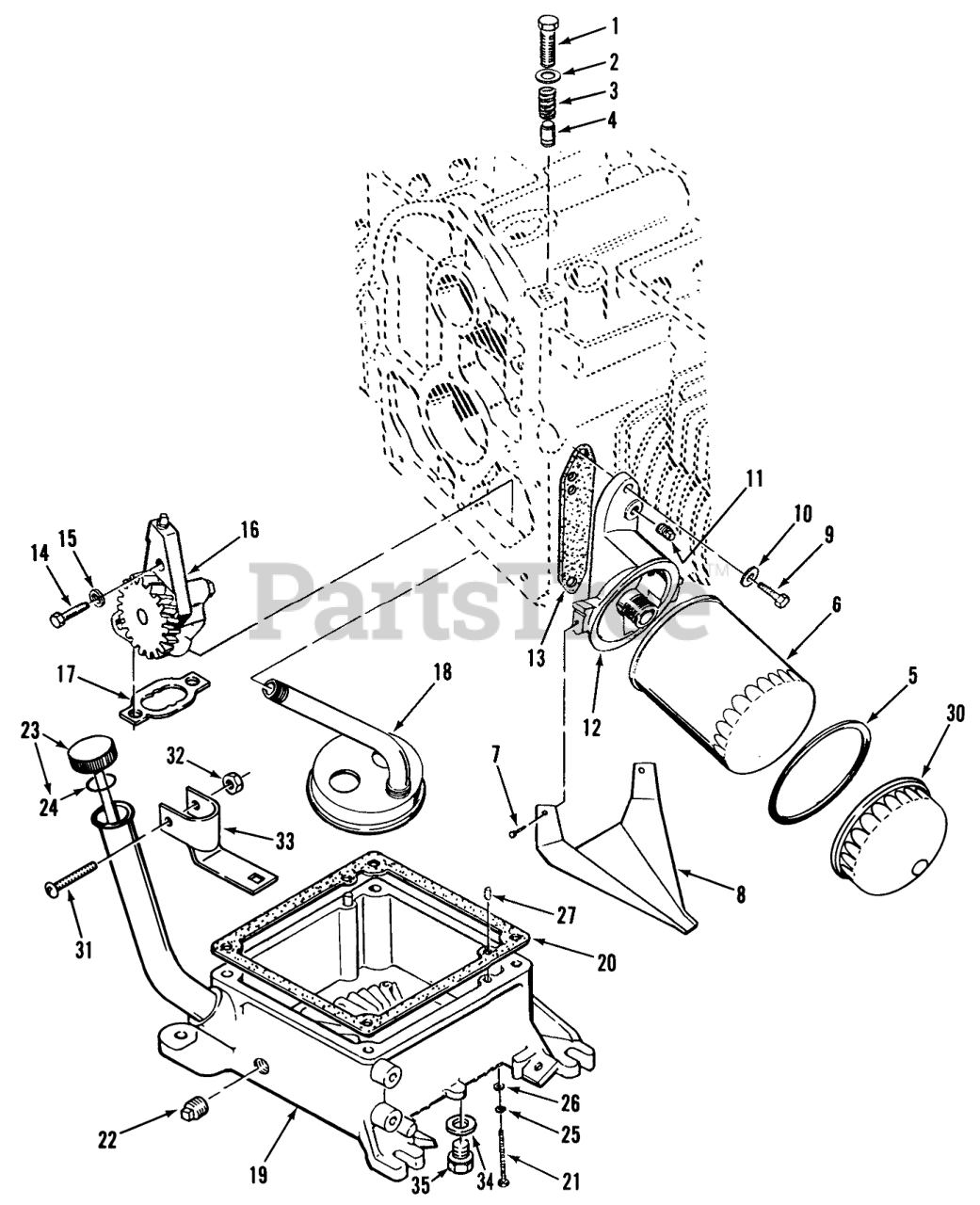

Z1-24OE03 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1990) OIL SYSTEM Parts Diagram

Zero-Turn Mower, Drive Unit Only

OIL SYSTEM Parts Diagram

1

Toro NN10384

Bolt
(Superseded to 59-1160)

$

$

Not available

2

Toro NN10361

Washer
(Superseded to 57-9760)

$

$

Not available

3

Toro NN10133

Spring
(Superseded to 59-0280)

$

$

Not available

4

Toro NN10135

Piunger
(Superseded to 57-8470)

$

$

Not available

5

Toro NN10144

Oil Fiter Seal
(Superseded to 82-0680)

$21.99

$

In Stock, only 2 left!

0

6

Toro NN10143

OIL FILTER
(Superseded to 137-5012)

$19.99

$

In Stock, Qty 7

0

7

Toro NN10391

Bolt
(Superseded to 82-1510)

$

$

Not available

8

Toro NN10145

OIL DRAIN

$

$

Not available

9

Toro NN10373

HHCS 5/16-18 X 1

$

$

Not available

10

Toro NN10360

Washer
(Superseded to 57-9750)

$

$

Not available

11

Toro NN10307

Plug
(Superseded to 700412)

$

$

Not available

12

Toro NN10141

Adapter
(Superseded to 82-0500)

$

$

Not available

13

Toro NN10455

Gasket
(Superseded to 82-0520)

$

$

Not available

14

Toro NN10369

Bolt
(Superseded to 82-1370)

$

$

Not available

15

Toro NN10419

Washer-Lock
(Superseded to 82-1620)

$

$

Not available

16

Toro NN10136

Oil Pump
(Superseded to 57-8480)

$

$

Not available

17

Toro NN10134

Oil Pump Gasket Kit
(Superseded to 57-8460)

$

$

Not available

18

Toro NN10837

Oil Pump Intake Cup
(Superseded to 82-0490)

$

$

Not available

19

Toro NN10845

Oil Base (Includes all plugs and plug gasket)
(Superseded to 82-0030)

$

$

Not available

20

Toro NN10468

Gasket

$

$

Not available

21

Toro NN10836

Screw 3/8-16 x 5-1/2
(Superseded to 323-25)

$14.99

$

Usually ships in 3-6 days

0

22

Toro NN10308

Plug
(Superseded to 82-1130)

$

$

Not available

23

Toro NN10849

Oil Fill Cap and indicator
(Superseded to 114-4138)

$87.99

$

Usually ships in 3-6 days

0

24

Toro NN10323

O-Ring
(Superseded to 57-9610)

$8.49

$

In Stock, only 1 left!

0

25

Toro NN10835

Washer 3/8
(Superseded to 82-1310)

$

$

Not available

26

Toro NN10358

FLAT WASHER

$

$

Not available

27

Toro NN10337

Dowel Pin
(Superseded to 57-9680)

$

$

Not available

30

Toro 114498

Oil Filter Wrench
(Superseded to NN10775)

$

$

Not available

31

Toro NN10407

Screw
(Superseded to 82-1560)

$

$

Not available

32

Toro NN10431

Nut
(Superseded to 82-1700)

$

$

Not available

33

Toro NN10162

FILL TUBE BRACKET

$

$

Not available

34

Toro NN10014

Gasket

$

$

Not available

35

Toro NN10015

Plug
(Superseded to 57-8080)

$

$

Not available
