Z1-24OE03 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1990) GEARCASE AND IGNITION CONTROLS Parts Diagram

Zero-Turn Mower, Drive Unit Only

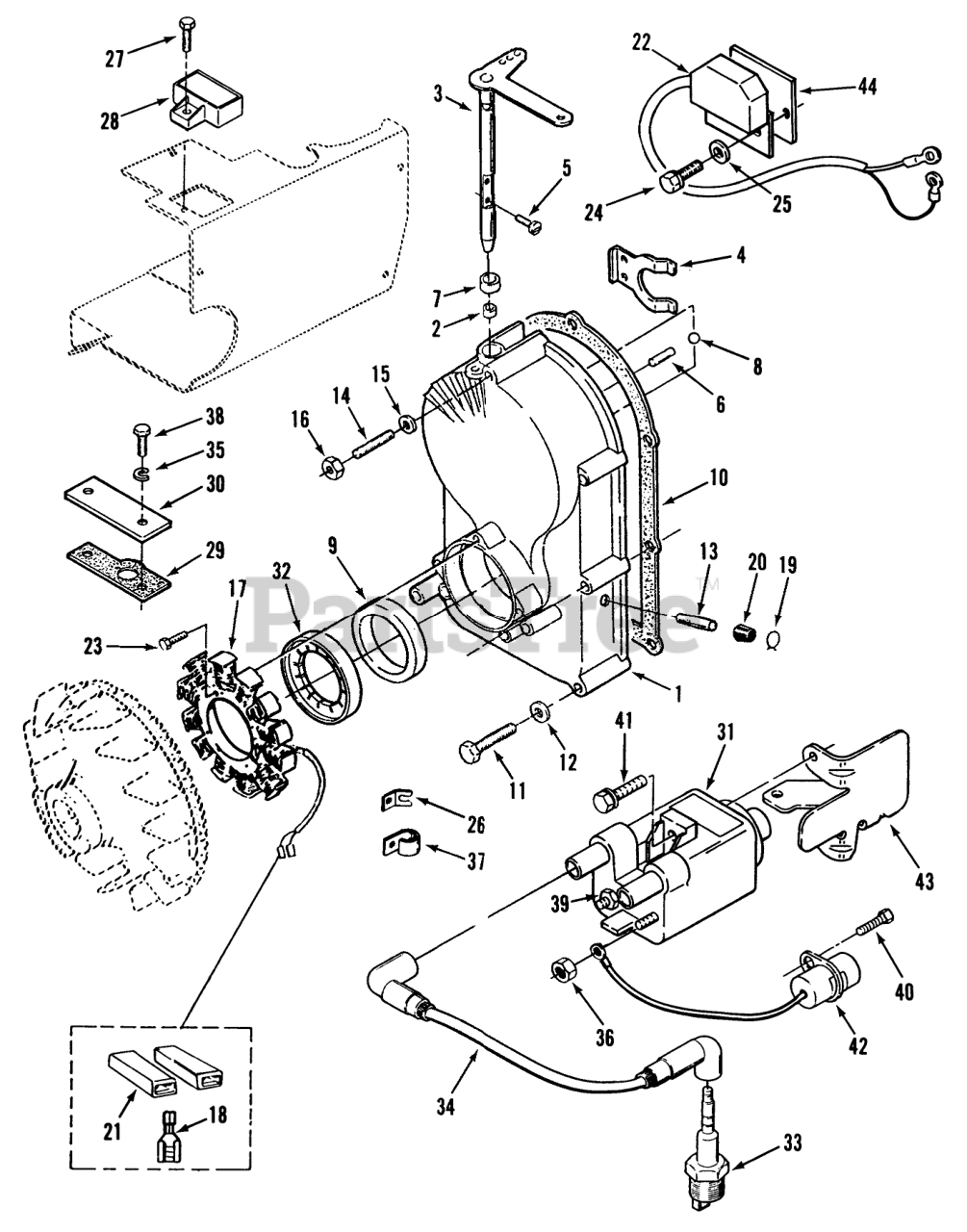

GEARCASE AND IGNITION CONTROLS Parts Diagram

  • Title

1

Toro NN10020

Gearcase Kit (Includes items 2 thru 9)
(Superseded to 71-6350)

$1779.99

$

Usually ships in 3-6 days

0

2

Toro NN10329

Bearing
(Superseded to 57-9650)

$

$

Not available

3

Toro NN10220

Governor Shaft & Arm Chromed
(Superseded to 59-0440)

$

$

Not available

4

Toro NN10216

Yoke
(Superseded to 59-0420)

$

$

Not available

5

Toro NN10388

Screw
(Superseded to 59-0950)

$

$

Not available

6

Toro NN10335

Washer
(Superseded to 59-0740)

$6.49

$

In Stock, only 1 left!

0

7

Toro NN10310

Oil Seal
(Superseded to 57-9570)

$

$

Not available

8

Toro NN10327

Bearing
(Superseded to 57-9630)

$

$

Not available

9

Toro NN10320

Oil Seal
(Superseded to 57-9580)

$

$

Not available

10

Toro NN10019

Gasket
(Superseded to 71-6360)

$

$

Not available

11

Toro NN10374

Screw 5/16-18 1-3/4
(Superseded to NN10545)

$

$

Not available

12

Toro NN10360

Washer
(Superseded to 57-9750)

$

$

Not available

14

Toro NN10352

Stud
(Superseded to 59-0790)

$

$

Not available

15

Toro NN10360

Washer
(Superseded to 57-9750)

$

$

Not available

16

Toro NN10426

Nut
(Superseded to 59-1130)

$

$

Not available

17

Toro NN10260

STATOR

$

$

Not available

18

Toro NN10290

Stator Leads Terminal
(Superseded to 59-0590)

$

$

Not available

19

Toro NN10301

Clamp
(Superseded to 57-9550)

$

$

Not available

20

Toro NN10211

Cap
(Superseded to 59-0370)

$

$

Not available

21

Toro NN10280

Terminal Connector Body Kit (Includes Terminals)
(Superseded to 82-1000)

$

$

Not available

22

Toro NN10444

Control-Ignition
(Superseded to 71-6380)

$457.99

$

Usually ships in 3-6 days

0

23

Toro NN10398

Screw Hex Hd. #10-32 x 1-1/2
(Superseded to 82-1530)

$

$

Not available

24

Toro NN10394

Bolt
(Superseded to 71-6400)

$

$

Not available

25

Toro NN10424

Lockwasher
(Superseded to 82-1660)

$

$

Not available

26

Toro NN10251

Cable Clip
(Superseded to 59-0520)

$

$

Not available

27

Toro NN10413

Hex Washer Hd. Cap Screw 1/4-20 x 1/4
(Superseded to 59-1080)

$

$

Not available

28

Toro NN10261

Regulator
(Superseded to 117-2742)

$271.99

$

In Stock, only 2 left!

0

29

Toro NN10243

Gasket
(Superseded to 57-9260)

$

$

Not available

30

Toro NN10244

Ignition Plunger Cover
(Superseded to 71-5990)

$

$

Not available

31

Toro NN10245

Coil-Ignition
(Superseded to 71-6000)

$

$

Not available

32

Toro NN10247

Rotor
(Superseded to 71-6010)

$107.99

$

Usually ships in 3-6 days

0

33

Toro NN10252

Spark Plug
(Superseded to 57-9340)

$4.49

$

In Stock, only 2 left!

0

34

Toro NN10253

Wire-Plug
(Superseded to 57-9350)

$93.99

$

Usually ships in 3-6 days

0

Toro NN10776

Spark Plug Cable-18" Long
(Superseded to 57-9350)

$93.99

$

Usually ships in 3-6 days

0

35

Toro NN10419

Washer-Lock
(Superseded to 82-1620)

$

$

Not available

36

Toro NN10248

Nut
(Superseded to 71-6430)

$

$

Not available

37

Toro NN10289

Clamp
(Superseded to 59-0580)

$

$

Not available

38

Toro NN10368

Bolt
(Superseded to 82-1360)

$

$

Not available

39

Toro NN10249

Nut
(Superseded to 71-6440)

$

$

Not available

40

Toro NN10390

SCREW #10-32 X 5/8

$

$

Not available

41

Toro NN10408

Bolt
(Superseded to 71-6460)

$

$

Not available

42

Toro NN10275

CONDENSER

$

$

Not available

43

Toro NN10453

Ignition Coil Bracket
(Superseded to 82-0920)

$98.99

$

Usually ships in 3-6 days

0

44

Toro NN10516

Insulator
(Superseded to 71-6410)

$12.99

$

Usually ships in 3-6 days

0
