Z1-24OE03 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1990) ENGINE CYLINDER BLOCK Parts Diagram

Zero-Turn Mower, Drive Unit Only

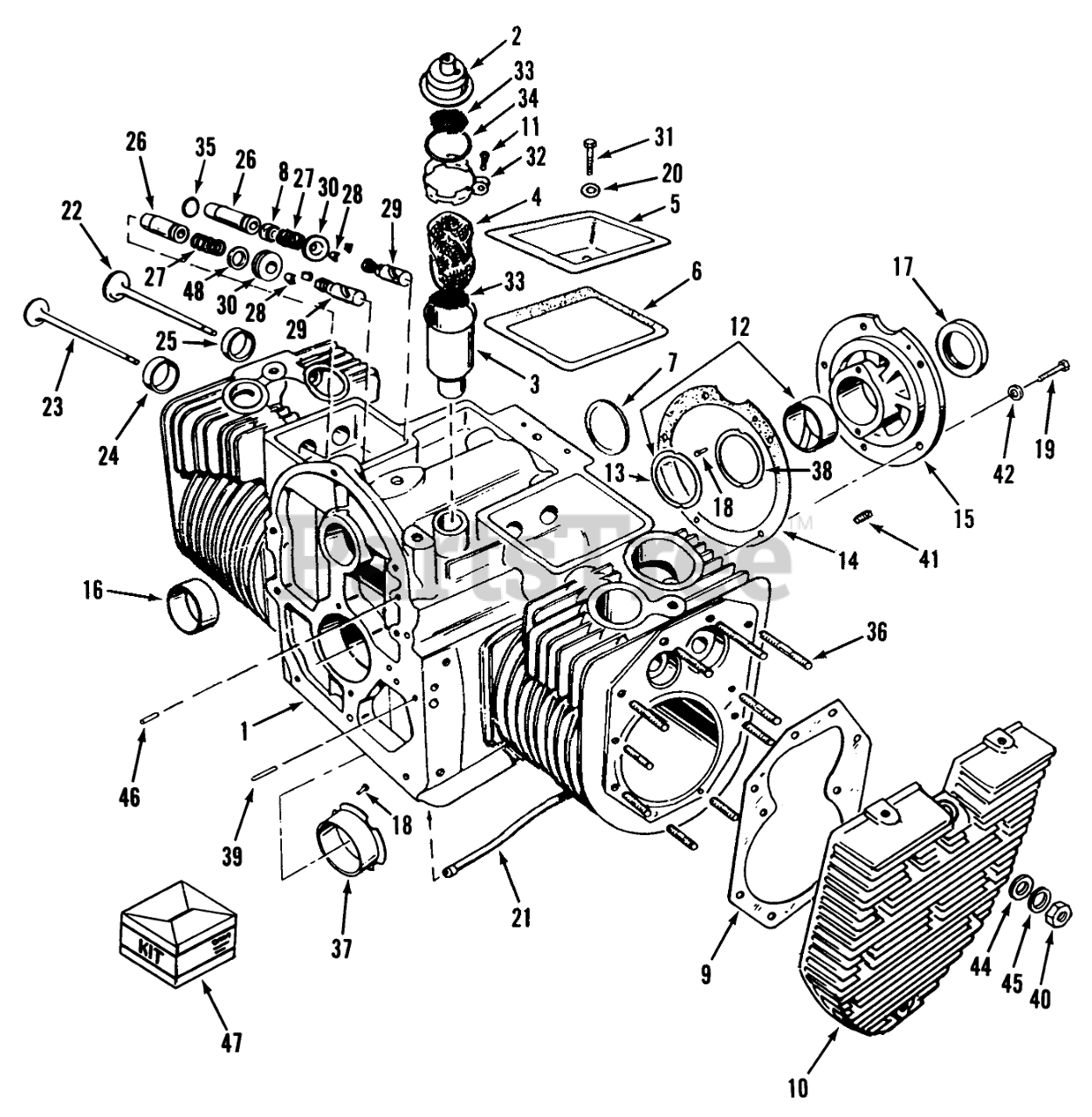

ENGINE CYLINDER BLOCK Parts Diagram

  • Title

1

Toro NN10692

SHORT-BLOCK (T-260)

$

$

Not available

2

Toro NN10150

Breather Cap & Valve
(Superseded to 82-0550)

$

$

Not available

3

Toro NN10149

Breather Tube
(Superseded to 82-0540)

$

$

Not available

4

Toro NN10156

Baffle
(Superseded to 57-8580)

$6.99

$

Usually ships in 3-6 days

0

5

Toro NN10045

VALVE COMPARTMENT

$

$

Not available

6

Toro NN10469

Valve Cover Gasket
(Superseded to 82-0260)

$

$

Not available

7

Toro NN10338

Plug
(Superseded to 57-9690)

$8.49

$

Usually ships in 3-6 days

0

8

Toro NN10436

Intake Valve Seal
(Superseded to 82-0270)

$

$

Not available

9

Toro NN10067

Cylinder Head Gasket
(Superseded to 82-0130)

$49.99

$

Usually ships in 3-6 days

0

10

Toro NN10467

Cylinder Head
(Superseded to 82-0210)

$

$

Not available

11

Toro NN10387

Screw #8 x 3/4
(Superseded to 82-1480)

$

$

Not available

12

Toro NN10009

Rear Crankshaft Bearing-STD
(Superseded to 57-8050)

$236.99

$

Usually ships in 3-6 days

0

Toro NN10010

Rear Crankshaft Brg-.002 under
(Superseded to 59-0020)

$

$

Not available

Toro NN10011

Rear Crankshaft Brg-.010 under
(Superseded to 57-8060)

$

$

Not available

Toro NN10012

Rear Crankshaft Brg-.020 under
(Superseded to 59-0030)

$

$

Not available

Toro NN10013

Rear Crankshaft Brg-.030 under
(Superseded to 59-0040)

$

$

Not available

13

Toro NN10022

ThrustWasher
(Superseded to 57-8160)

$

$

Not available

14

Toro NN10554

Gasket
(Superseded to 57-8010)

$28.99

$

In Stock, only 2 left!

0

15

Toro NN10008

Bearing Plate
(Superseded to 82-0020)

$

$

Not available

16

Toro NN10001

Camshaft Brg
(Superseded to 57-8000)

$153.99

$

Usually ships in 3-6 days

0

17

Toro NN10321

Oil Seal
(Superseded to 57-9590)

$41.99

$

In Stock, only 2 left!

0

18

Toro NN10334

Screw
(Superseded to 59-0730)

$

$

Not available

19

Toro NN10422

SPRING LOCKWASHER

$

$

Not available

20

Toro NN10359

Washer
(Superseded to 57-9740)

$

$

Not available

21

Toro NN10137

Crankcase Oil Tube
(Superseded to 82-0480)

$

$

Not available

22

Toro NN10051

INTAKE VALVE

$

$

Not available

23

Toro NN10052

EXHAUST VALVE

$

$

Not available

24

Toro NN10046

Exhaust Seat Insert-Std
(Superseded to 82-0080)

$

$

Not available

Toro NN10047

Exhaust Seat Insert-.002" Oversize
(Superseded to 82-0090)

$

$

Not available

Toro NN10048

Clamp

$

$

Not available

Toro NN10049

Exhaust Seat Insert-.010" Oversize
(Superseded to 82-0110)

$

$

Not available

Toro NN10050

Exhaust Seat Insert-.025" Oversize
(Superseded to 82-0120)

$

$

Not available

25

Toro NN10443

Intake Seat Insert-STD
(Superseded to 82-0160)

$

$

Not available

Toro NN10449

VALVE SEAT .002"

$

$

Not available

Toro NN10450

VALVE SEAT .005"

$

$

Not available

Toro NN10451

VALVE SEAT .010"

$

$

Not available

Toro NN10454

Intake Seat Insert-.025" Oversize
(Superseded to 92-0927)

$

$

Not available

26

Toro NN10069

Exhaust Valve Guide
(Superseded to 82-0140)

$

$

Not available

Toro NN10068

INTAKE VALVE GUIDE

$

$

Not available

27

Toro NN10040

Spring-Valve
(Superseded to 57-8250)

$

$

Not available

28

Toro NN10041

Valve Spring Lock
(Superseded to 57-8260)

$

$

Not available

29

Toro NN10129

Tappet
(Superseded to 57-8450)

$

$

Not available

Toro NN10131

.005" Oversize
(Superseded to 59-0260)

$

$

Not available

30

Toro NN10043

Rotator-Valve
(Superseded to 57-8270)

$

$

Not available

31

Toro NN10371

Bolt 1/4-20 x 2
(Superseded to 82-1380)

$

$

Not available

32

Toro NN10148

Clamp
(Superseded to 82-0530)

$

$

Not available

33

Toro NN10151

Screen
(Superseded to 82-0560)

$

$

Not available

34

Toro NN10322

Seal
(Superseded to 82-0570)

$7.49

$

Usually ships in 3-6 days

0

35

Toro NN10034

Intake Valve Guide Gasket
(Superseded to 57-8240)

$

$

Not available

36

Toro NN10351

Mtg. Stud-Cylinder Hd (Install 4 Bottom Holes LH, RH Hd)
(Superseded to 92-0928)

$

$

Not available

Toro NN10349

Mtg. Stud-Cylinder Hd (2 Top Holes LH, RH Hd)
(Superseded to 82-1230)

$

$

Not available

Toro NN10350

Mtg. Stud-Cylinder Hd (4 Middle Holes LH, RH Hd)
(Superseded to 82-1240)

$6.99

$

Usually ships in 3-6 days

0

37

Toro NN10003

Standard
(Superseded to 57-8030)

$

$

Not available

Toro NN10004

.002" Undersize
(Superseded to 57-9360)

$

$

Not available

Toro NN10005

.010" Undersize
(Superseded to 57-8030)

$

$

Not available

Toro NN10006

.020" Undersize
(Superseded to 57-9800)

$

$

Not available

Toro NN10007

.030" Under
(Superseded to 59-0010)

$

$

Not available

38

Toro NN10023

Shim 0.005"
(Superseded to 57-8170)

$8.49

$

Usually ships in 3-6 days

0

39

Toro NN10336

Pin
(Superseded to 59-0750)

$7.99

$

Usually ships in 3-6 days

0

40

Toro NN10437

Nut
(Superseded to 82-0040)

$

$

Not available

41

Toro NN10385

Screw
(Superseded to 3247-4)

$5.99

$

Usually ships in 3-6 days

0

42

Toro NN10421

Lockwasher 3/8
(Superseded to 325-35)

$10.99

$

Usually ships in 3-6 days

0

44

Toro NN10366

Washer
(Superseded to 82-1300)

$

$

Not available

45

Toro NN10423

O-Ring
(Superseded to 82-1650)

$7.49

$

Usually ships in 3-6 days

0

46

Toro NN10339

Plug
(Superseded to 59-0760)

$

$

Not available

47

Toro NN10256

Gasket Kit-Carbon Removal
(Superseded to NN10923)

$

$

Not available

Toro NN10255

Gasket Kit-Engine
(Superseded to 82-0950)

$

$

Not available

48

Toro NN10042

Washer
(Superseded to 82-0070)

$

$

Not available
