Z1-24OE03 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1990) BLOWER HOUSING AND GOVERNOR Parts Diagram

Zero-Turn Mower, Drive Unit Only

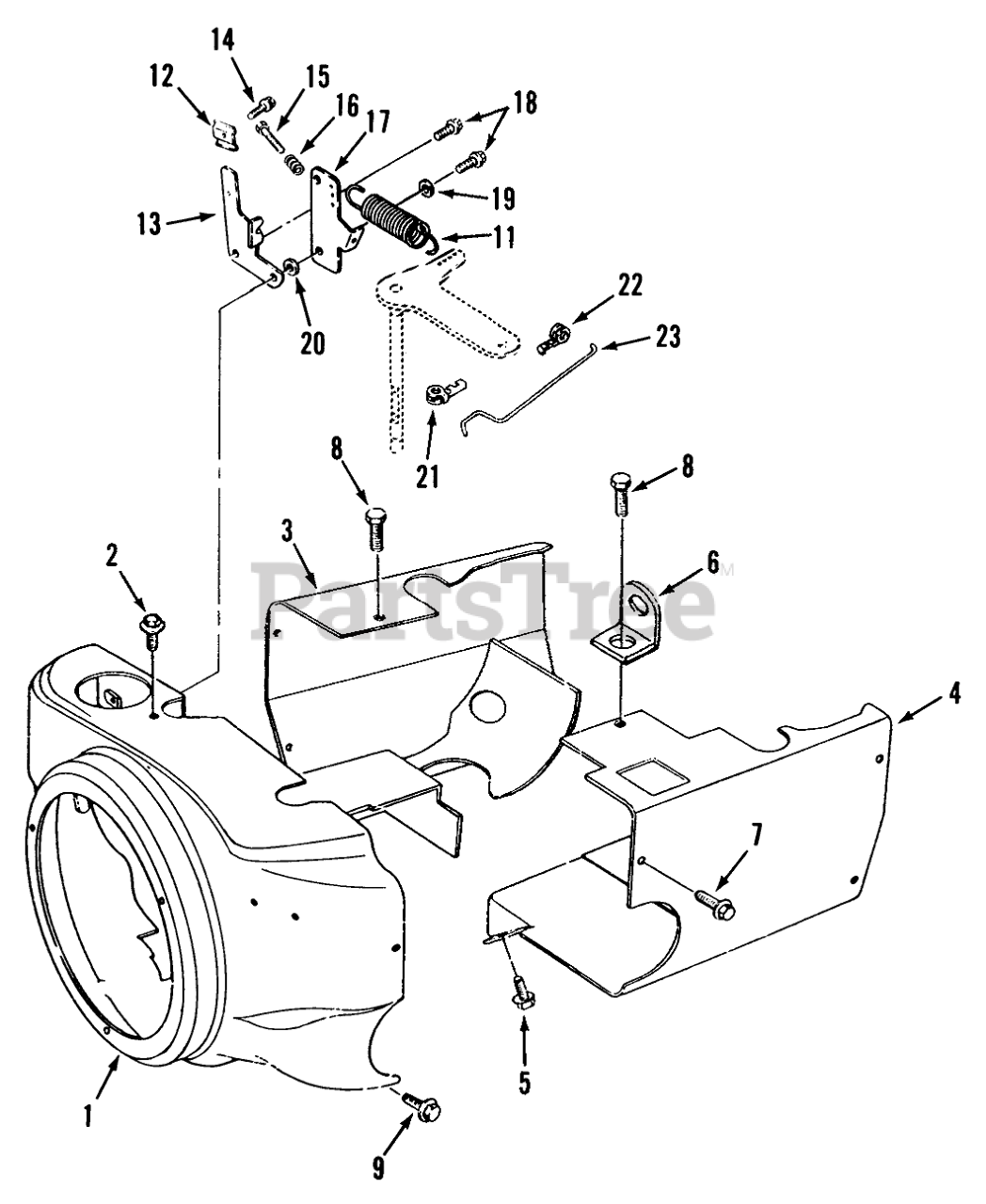

BLOWER HOUSING AND GOVERNOR Parts Diagram

  • Title
1

Toro NN10167

BLOWER HOUSING

$

$

Not available

2

$

$

Not available

3

Toro NN10164

Cylinder Air Housing LS
(Superseded to 92-0949)

$

$

Not available

4

Toro NN10169

Cylinder Air Housing
(Superseded to 92-0921)

$

$

Not available

5

Toro NN10393

Bolt
(Superseded to 59-0980)

$3.99

$

Usually ships in 3-6 days

0

6

Toro NN10296

Bracket-Lifting
(Superseded to 71-6080)

$27.99

$

Usually ships in 3-6 days

0

7

Toro NN10415

Wash. Hd. Screw 1/4-20 x 1/2
(Superseded to 59-1100)

$

$

Not available

8

Toro NN10417

Bolt
(Superseded to 82-1600)

$

$

Not available

9

Toro NN10415

Wash. Hd. Screw 1/4-20 x 1/2
(Superseded to 59-1100)

$

$

Not available

11

Toro NN10217

Spring
(Superseded to 57-9100)

$

$

Not available

12

Toro NN10440

Clip
(Superseded to 57-9190)

$

$

Not available

13

Toro NN10228

CABLE BRACKET

$

$

Not available

14

Toro NN10395

Bolt
(Superseded to 72-3900)

$7.99

$

Usually ships in 3-6 days

0

15

Toro NN10404

HH ST SCREW

$

$

Not available

16

Toro NN10219

Spring
(Superseded to 59-0430)

$

$

Not available

17

Toro NN10229

GOVERNOR CONTROL ARM

$

$

Not available

18

Toro NN10397

Bolt
(Superseded to 59-1010)

$1.99

$

Usually ships in 3-6 days

0

19

Toro NN10357

Screw
(Superseded to 59-0830)

$

$

Not available

20

Toro NN10218

Bushing
(Superseded to 57-9120)

$8.49

$

Usually ships in 3-6 days

0

21

Toro NN10346

Clip-Retaining
(Superseded to 57-9730)

$5.99

$

Usually ships in 3-6 days

0

22

Toro NN10342

Retaining Clip
(Superseded to 57-9700)

$

$

Not available

23

Toro NN10226

GOVERNOR CONTROL ROD

$

$

Not available
