Z1-24OE02 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1989) SECTION 4-STARTER Parts Diagram

Zero-Turn Mower, Drive Unit Only

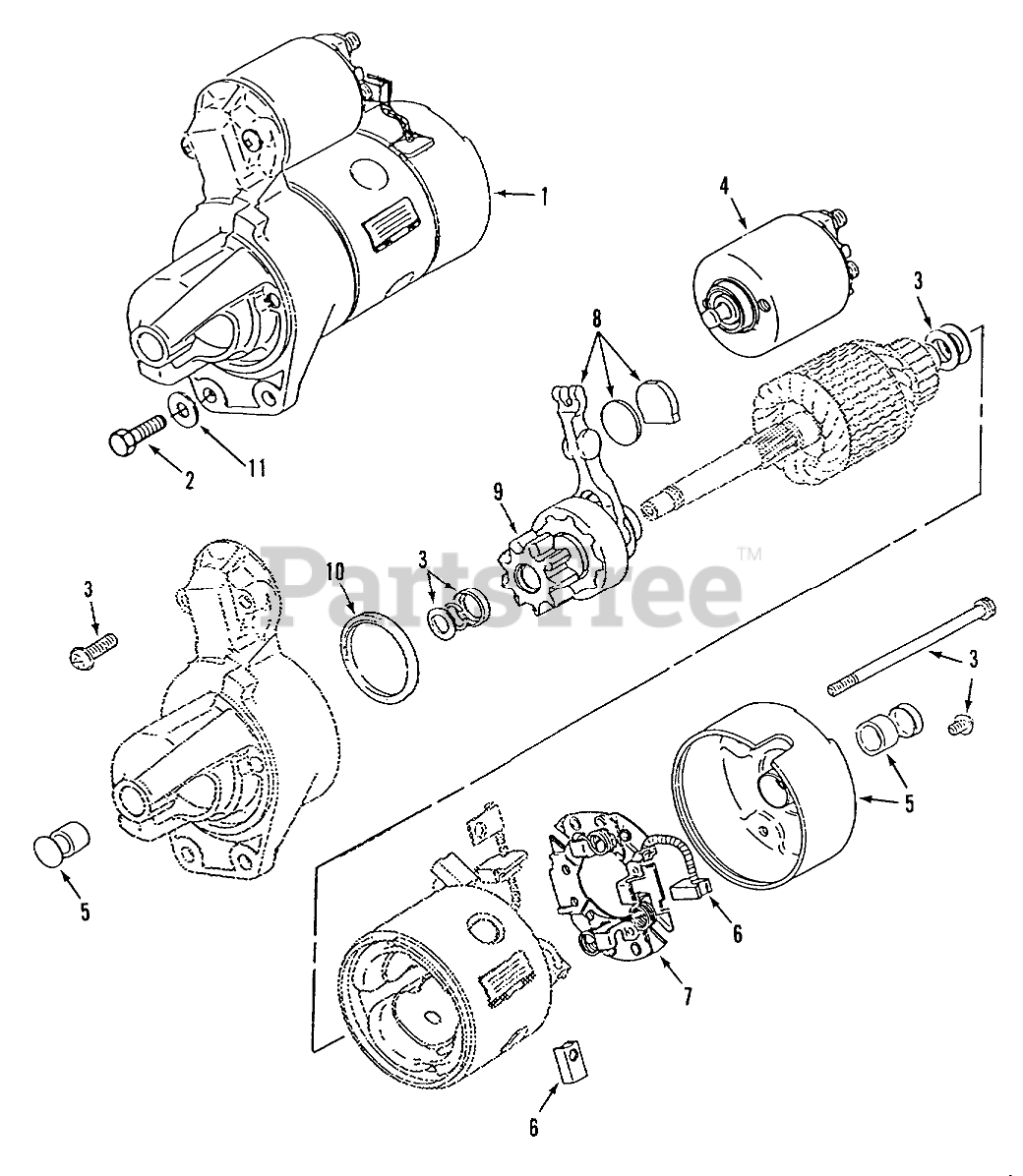

SECTION 4-STARTER Parts Diagram

  • Title

1

Toro NN10267

Starter, Complete-see components below
(Superseded to 62-2710)

$

$

Not available

2

Toro NN10405

Hex Hd. Cap Screw 5/16-18 x 1
(Superseded to 59-1170)

$

$

Not available

3

Toro NN10265

Starter Hdwr. Kit (includes Solenoid Screws (2), Brush Holder Screws (2), Thru Bolts (2), Armature Shims (2), Pinion Stop Collar, and Pinion Retaining Ring)
(Superseded to 62-2760)

$

$

Not available

4

Toro NN10269

Starter Solenoid Kit (includes Solenoid, Spring and Plunger)
(Superseded to 72-3930)

$

$

Not available

5

Toro NN10262

Bushing Kit (includes Frt. Bushing and Rear Cap w/ Bushing)
(Superseded to 62-2730)

$

$

Not available

6

Toro NN10263

Starter Brush Kit (includes Positive Brush (2) and Negative Brush w/ Pigtail)
(Superseded to 62-2740)

$

$

Not available

7

Toro NN10264

Starter Brush Holder (includes Brush holder w/ Negative Brush)
(Superseded to 62-2740)

$

$

Not available

8

Toro NN10266

Starter Shift Lever Kit (includes Shift Lever, Wear Plate and Rubber Plug)
(Superseded to 62-2770)

$

$

Not available

9

Toro NN10270

Starter Clutch (includes Pinion Gear w/ Clutch)
(Superseded to 72-3940)

$

$

Not available

10

Toro NN10271

Dust Seal
(Superseded to NN10886)

$

$

Not available

11

Toro NN10363

Washer
(Superseded to 57-9770)

$

$

Not available
