Z1-24OE02 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1989) SECTION 3-CHOKE LINKAGE Parts Diagram

Zero-Turn Mower, Drive Unit Only

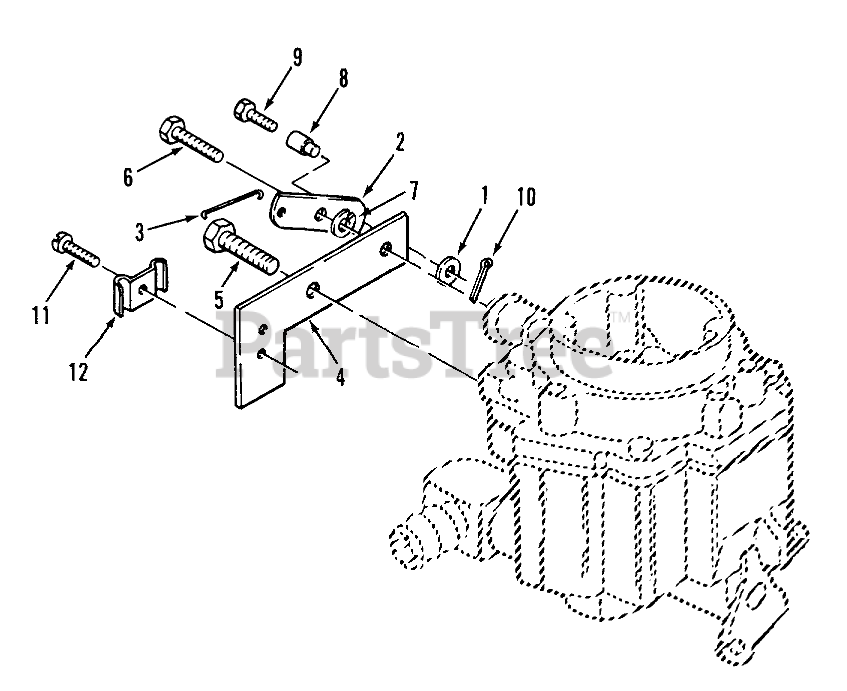

SECTION 3-CHOKE LINKAGE Parts Diagram

  • Title
1

Toro NN10364

Washer
(Superseded to 59-0850)

$

$

Not available

2

Toro NN10233

Lever
(Superseded to 59-0460)

$

$

Not available

3

Toro NN10231

Link
(Superseded to 57-9180)

$

$

Not available

4

Toro NN10234

Bracket
(Superseded to 59-0470)

$

$

Not available

5

Toro NN10412

Bolt
(Superseded to 72-3880)

$

$

Not available

6

Toro NN10400

Bolt
(Superseded to 59-1020)

$

$

Not available

7

Toro NN10424

Lockwasher
(Superseded to 82-1660)

$

$

Not available

8

Toro NN10230

Swivel
(Superseded to 57-9170)

$

$

Not available

9

Toro NN10410

Bolt
(Superseded to 72-3890)

$

$

Not available

10

Toro NN10333

Cotler Pin
(Superseded to 59-0720)

$

$

Not available

11

Toro NN10395

Bolt
(Superseded to 72-3900)

$

$

Not available

12

Toro NN10440

Clip
(Superseded to 57-9190)

$

$

Not available
