Z1-24OE02 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1989) SECTION 3-CARBURETOR COMPONENTS Parts Diagram

Zero-Turn Mower, Drive Unit Only

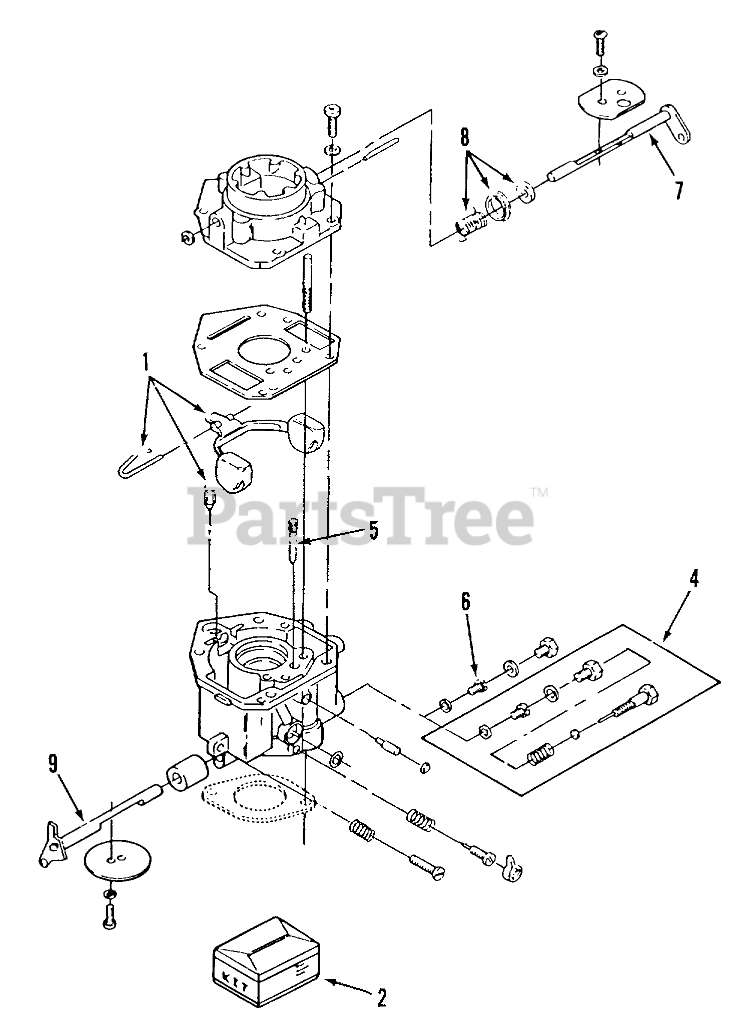

SECTION 3-CARBURETOR COMPONENTS Parts Diagram

  • Title

1

Toro NN10209

Float Kit (includes Float, Pin and Valve)
(Superseded to 62-2800)

$164.99

$

Usually ships in 3-6 days

0

2

Toro NN10206

Repair Kit (includes Screw and Plug package, Gasket package, Float Valve, Idle Adjustment Needle and Spring, Mounting Gaskets, Idle Limit Cap)
(Superseded to 82-0780)

$716.99

$

Usually ships in 3-6 days

0

4

Toro NN10197

Variable Jet Kit-Optbnal (High Altitude Application Includes Power Jet and Gasket, Retainer, Power Needle Spring, Power Needle and Power Plug Gasket)

$

$

Not available

5

Toro NN10202

Idle Jet

$

$

Not available

6

Toro NN10200

Power Jet
(Superseded to 82-0740)

$

$

Not available

7

Toro NN10207

Choke Shaft-Kit (includes Choke Valve, Valve Set Screw and Air Filter)
(Superseded to 72-3860)

$

$

Not available

8

Toro NN10208

Choke Lever-Kit (includes Choke lever Ring, Choke Spring and Choke Collar)
(Superseded to 72-3870)

$

$

Not available

9

Toro NN10196

Throttle Shaft-Kit (includes Valve Set Screw, Air Filter and Throttle Valve)
(Superseded to NN10811)

$

$

Not available
