Z1-24OE02 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1989) SECTION 2-WHEELS AND TIRES Parts Diagram

Zero-Turn Mower, Drive Unit Only

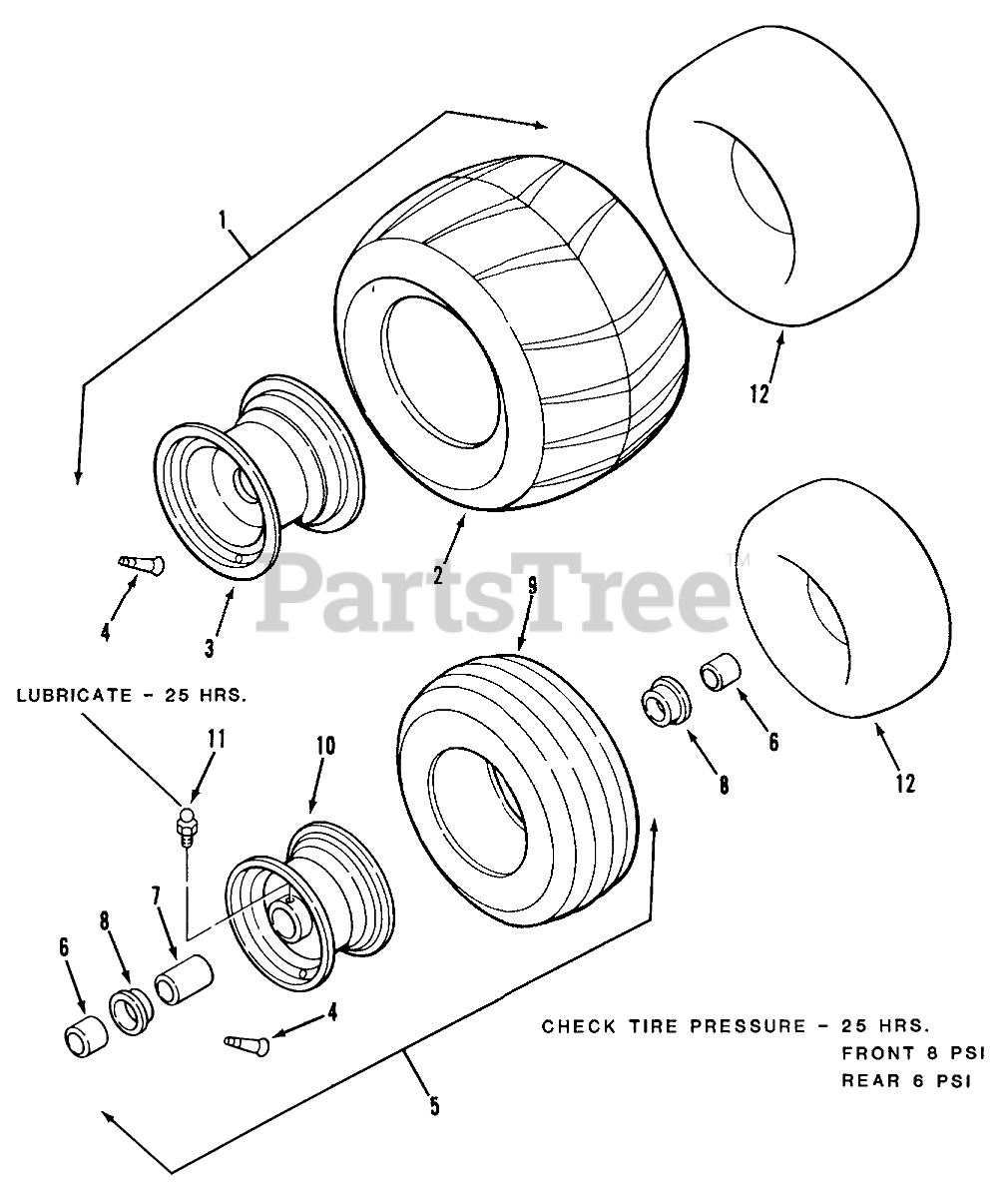

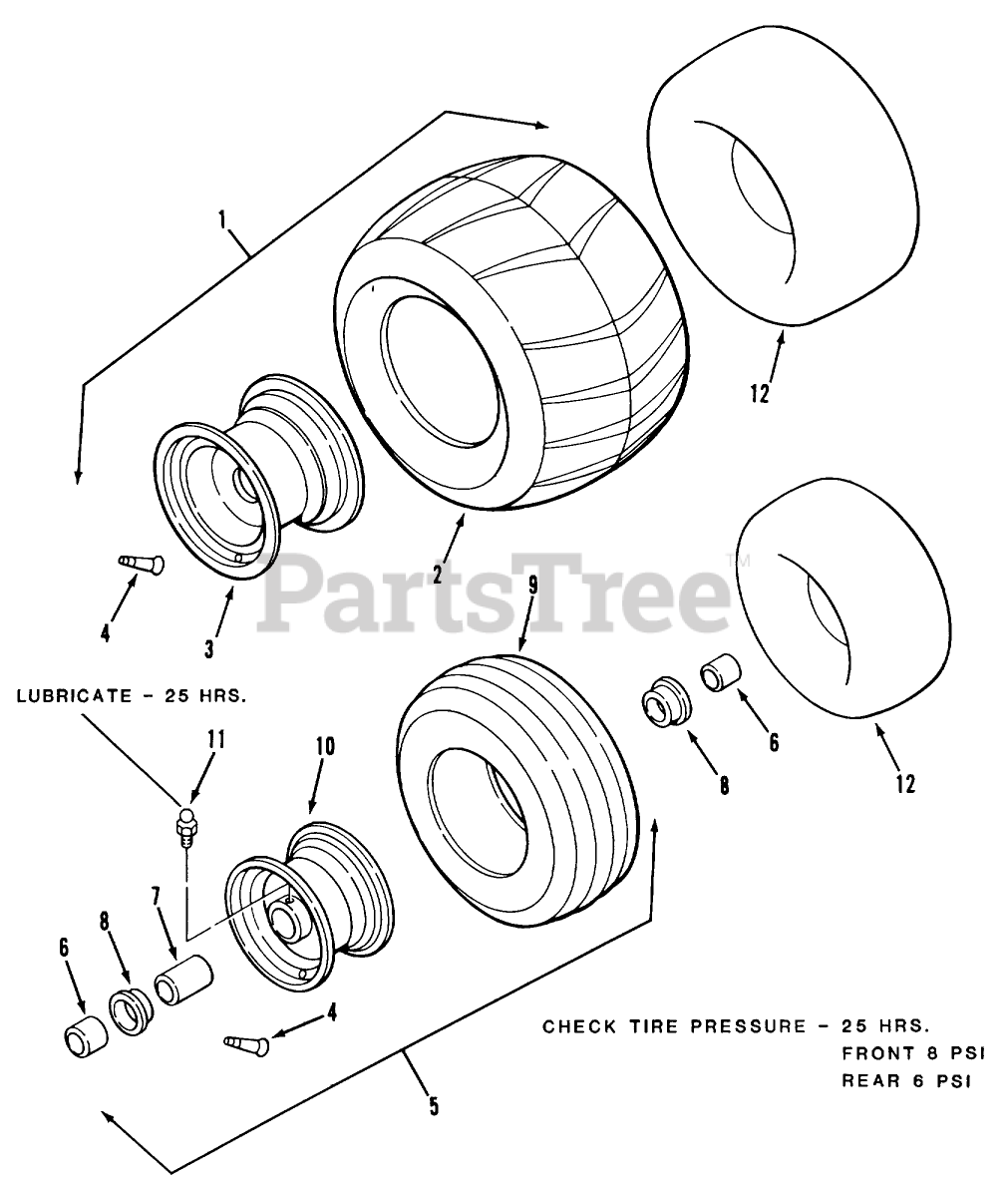

SECTION 2-WHEELS AND TIRES Parts Diagram

  • Title

1

Toro 112936

Rear Wheel and Tire 22x12.00-8-Chevron RH (Includes items 2, 3 & 4)

$

$

Not available

Toro 112937

Rear Wheel and Tire 22x12.00-8-Chevron LH (Includes items 2, 3 & 4)

$

$

Not available

2

Toro 112935

CHEV TIRE 10156-C

$

$

Not available

3

Toro 111917

WHEEL PR SLVR 10238K

$

$

Not available

4

Toro 5108

VALVE

$6.99

$

In Stock, Qty 14

0

5

Toro 111921

Front Wheel and Tire Ass-y (Includes items 7, 8, 9 & 10)
(Superseded to 99-5852)

$

$

Not available

6

Toro 100005

Tube-Wheel
(Superseded to 92-1715)

$10.99

$

Usually ships in 3-6 days

0

7

Toro 10204

SPACER FRT WHEEL INN

$

$

Not available

8

Toro 10205

BEARING BALL

$

$

Not available

9

Toro 10157

Front Tire 13 x 5.00-6

$

$

Not available

10

Toro 111916

WHEEL FT SLUV 10239K

$

$

Not available

11

Toro 1030

Zerk

$

$

Not available

12

Toro 5712

INNER TUBE

$

$

Not available

Toro 10127

Tube-Rear

$

$

Not available
