Z1-24OE01 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1988) SECTION 3-OIL SYSTEM Parts Diagram

Zero-Turn Mower, Drive Unit Only

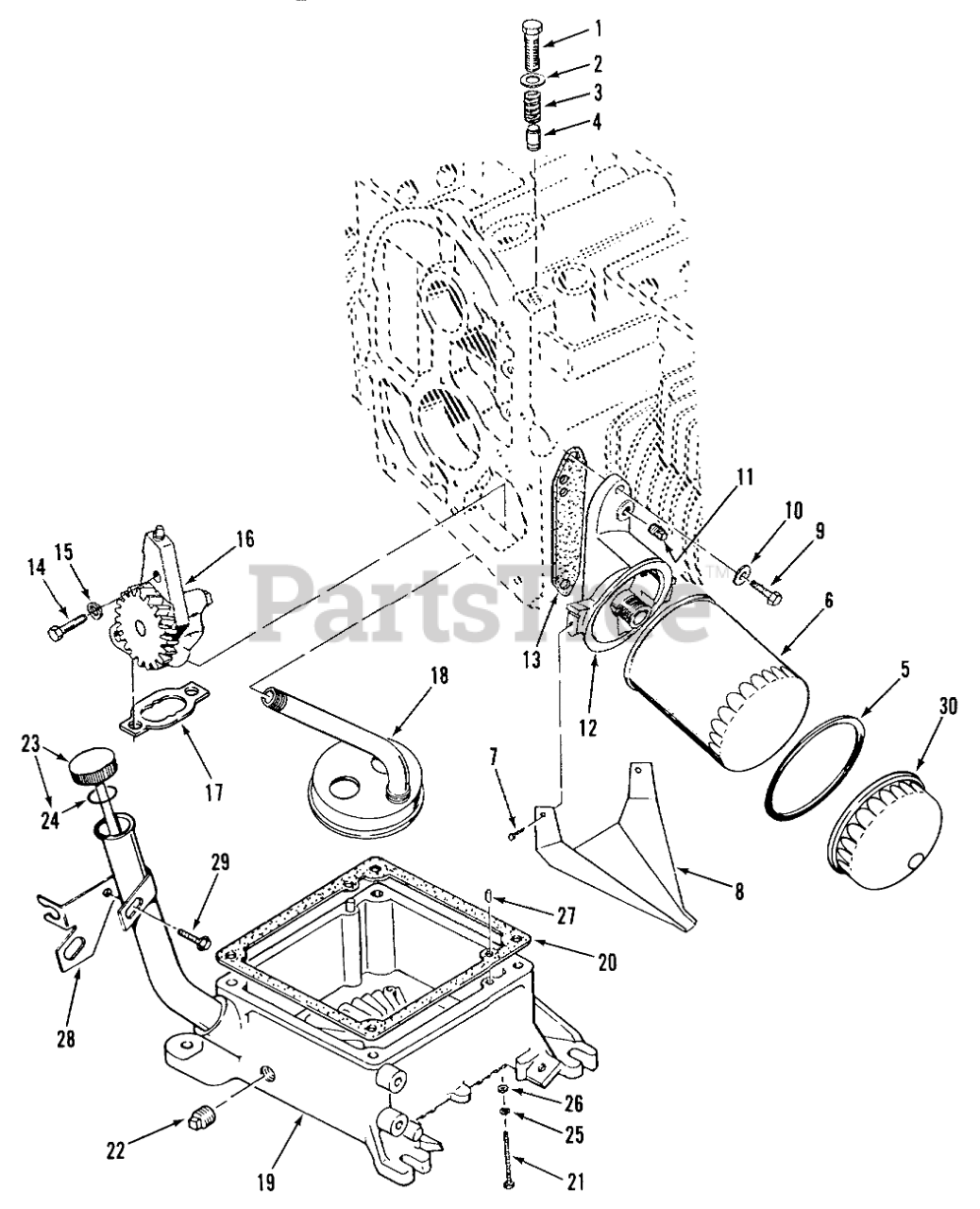

SECTION 3-OIL SYSTEM Parts Diagram

  • Title
1

Toro NN10384

Bolt
(Superseded to 59-1160)

$

$

Not available

2

Toro NN10361

Washer
(Superseded to 57-9760)

$

$

Not available

3

Toro NN10133

Spring
(Superseded to 59-0280)

$

$

Not available

4

Toro NN10135

Piunger
(Superseded to 57-8470)

$

$

Not available

5

Toro NN10144

Oil Fiter Seal
(Superseded to 82-0680)

$20.99

$

In Stock, only 1 left!

0

6

Toro NN10143

OIL FILTER
(Superseded to 137-5012)

$20.99

$

In Stock, only 2 left!

0

7

Toro NN10391

Bolt
(Superseded to 82-1510)

$

$

Not available

8

Toro NN10145

OIL DRAIN

$

$

Not available

9

Toro NN10373

HHCS 5/16-18 X 1

$

$

Not available

10

Toro NN10360

Washer
(Superseded to 57-9750)

$

$

Not available

11

Toro NN10307

Plug
(Superseded to 700412)

$

$

Not available

12

Toro NN10141

Adapter
(Superseded to 82-0500)

$

$

Not available

13

Toro NN10455

Gasket
(Superseded to 82-0520)

$

$

Not available

14

Toro NN10369

Bolt
(Superseded to 82-1370)

$

$

Not available

15

Toro NN10419

Washer-Lock
(Superseded to 82-1620)

$

$

Not available

16

Toro NN10136

Oil Pump
(Superseded to 57-8480)

$

$

Not available

17

Toro NN10134

Oil Pump Gasket Kit
(Superseded to 57-8460)

$

$

Not available

18

Toro NN10140

INTAKE OIL PUMP CUP

$

$

Not available

19

Toro NN10017

Oil Base (includes Drain Plug and Dowel Pin)

$3036.99

$

Usually ships in 3-6 days

0

20

Toro NN10468

Gasket

$

$

Not available

21

Toro NN10044

HEX HEAD CAP SCREW

$

$

Not available

22

Toro NN10308

Plug
(Superseded to 82-1130)

$

$

Not available

23

Toro NN10158

OIL FILL CAP & IND

$

$

Not available

24

Toro NN10323

O-Ring
(Superseded to 57-9610)

$7.99

$

In Stock, only 1 left!

0

25

Toro NN10421

Lockwasher 3/8
(Superseded to 325-35)

$11.99

$

Usually ships in 3-6 days

0

26

Toro NN10358

FLAT WASHER

$

$

Not available

27

Toro NN10337

Dowel Pin
(Superseded to 57-9680)

$

$

Not available

28

Toro NN10160

OIL TUBE SUPPORT

$

$

Not available

29

Toro NN10394

Bolt
(Superseded to 71-6400)

$

$

Not available

30

Toro 114498

Oil Filter Wrench
(Superseded to NN10775)

$

$

Not available
