Z1-24OE01 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1988) SECTION 3-CRANKSHAFT, CAMSHAFT & FLYWHEEL Parts Diagram

Zero-Turn Mower, Drive Unit Only

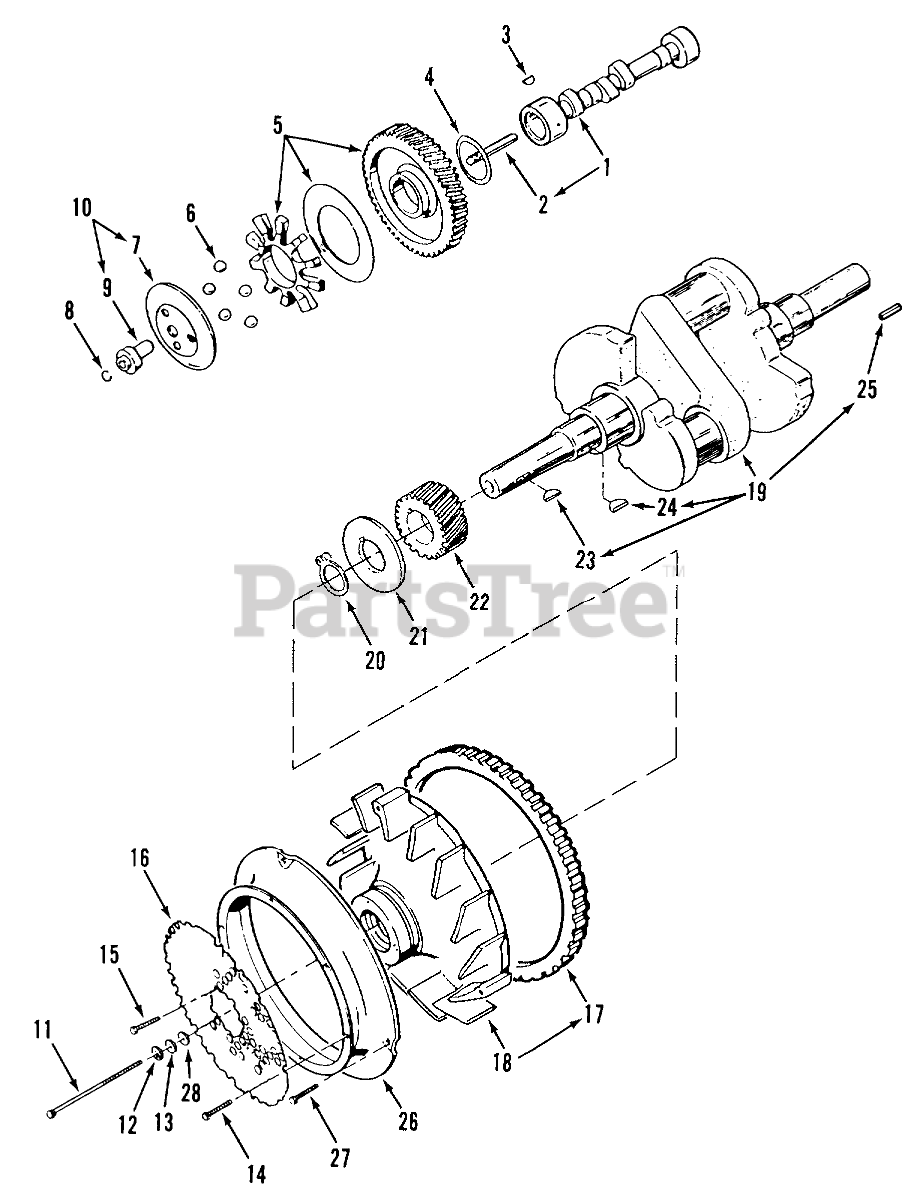

SECTION 3-CRANKSHAFT, CAMSHAFT & FLYWHEEL Parts Diagram

  • Title

1

Toro NN10031

Camshaft (includes Center Pin)
(Superseded to 82-0880)

$828.99

$

Usually ships in 3-6 days

0

2

Toro NN10214

Pin
(Superseded to 59-0400)

$22.99

$

Usually ships in 3-6 days

0

3

Toro NN10330

Key
(Superseded to 57-9660)

$6.99

$

Usually ships in 3-6 days

0

4

Toro NN10030

Washer
(Superseded to 57-8230)

$7.49

$

Usually ships in 3-6 days

0

5

Toro NN10029

Camshaft Gear (includes Plate and Spacer)
(Superseded to 57-8210)

$

$

Not available

6

Toro NN10328

Ball
(Superseded to 57-9640)

$

$

Not available

7

Toro NN10222

Cup-Governor
(Superseded to 59-0450)

$

$

Not available

8

Toro NN10215

Retaining Ring
(Superseded to 57-9090)

$

$

Not available

9

Toro NN10221

Governor Cup Hub
(Superseded to 57-9130)

$

$

Not available

10

Toro NN10224

Governor Cup Kit (includes Cup and Hub)

$

$

Not available

11

Toro NN10021

Screw
(Superseded to 57-8150)

$

$

Not available

12

Toro NN10422

SPRING LOCKWASHER

$

$

Not available

13

Toro NN10355

Washer
(Superseded to 59-0810)

$6.99

$

Usually ships in 3-6 days

0

14

Toro NN10402

HWH S.T. SCREW

$

$

Not available

15

Toro NN10416

Locking Bolt
(Superseded to 59-1120)

$

$

Not available

16

Toro NN10166

FLYWHEEL GUARD

$

$

Not available

17

Toro NN10024

Gear-Ring
(Superseded to 57-8180)

$

$

Not available

18

Toro NN10172

Flywheel (includes Ring Gear)

$

$

Not available

19

Toro NN10026

Crankshaft (includes Keys)

$576.99

$

In Stock, only 2 left!

0

20

Toro NN10343

Retaining Ring
(Superseded to 57-9710)

$

$

Not available

21

Toro NN10439

Washer
(Superseded to 57-8140)

$

$

Not available

22

Toro NN10438

Gear
(Superseded to 57-8130)

$

$

Not available

23

Toro NN10332

Key
(Superseded to 71-6190)

$

$

Not available

24

Toro NN10330

Key
(Superseded to 57-9660)

$6.99

$

Usually ships in 3-6 days

0

25

Toro NN10331

Key
(Superseded to 82-1160)

$

$

Not available

26

Toro NN10163

Blower Wheel Venturi
(Superseded to 57-8610)

$

$

Not available

27

Toro NN10415

Wash. Hd. Screw 1/4-20 x 1/2
(Superseded to 59-1100)

$

$

Not available

28

Toro NN10028

SPACER

$

$

Not available
