Z1-24OE01 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1988) SECTION 12-ELECTRICAL SYSTEM Parts Diagram

Zero-Turn Mower, Drive Unit Only

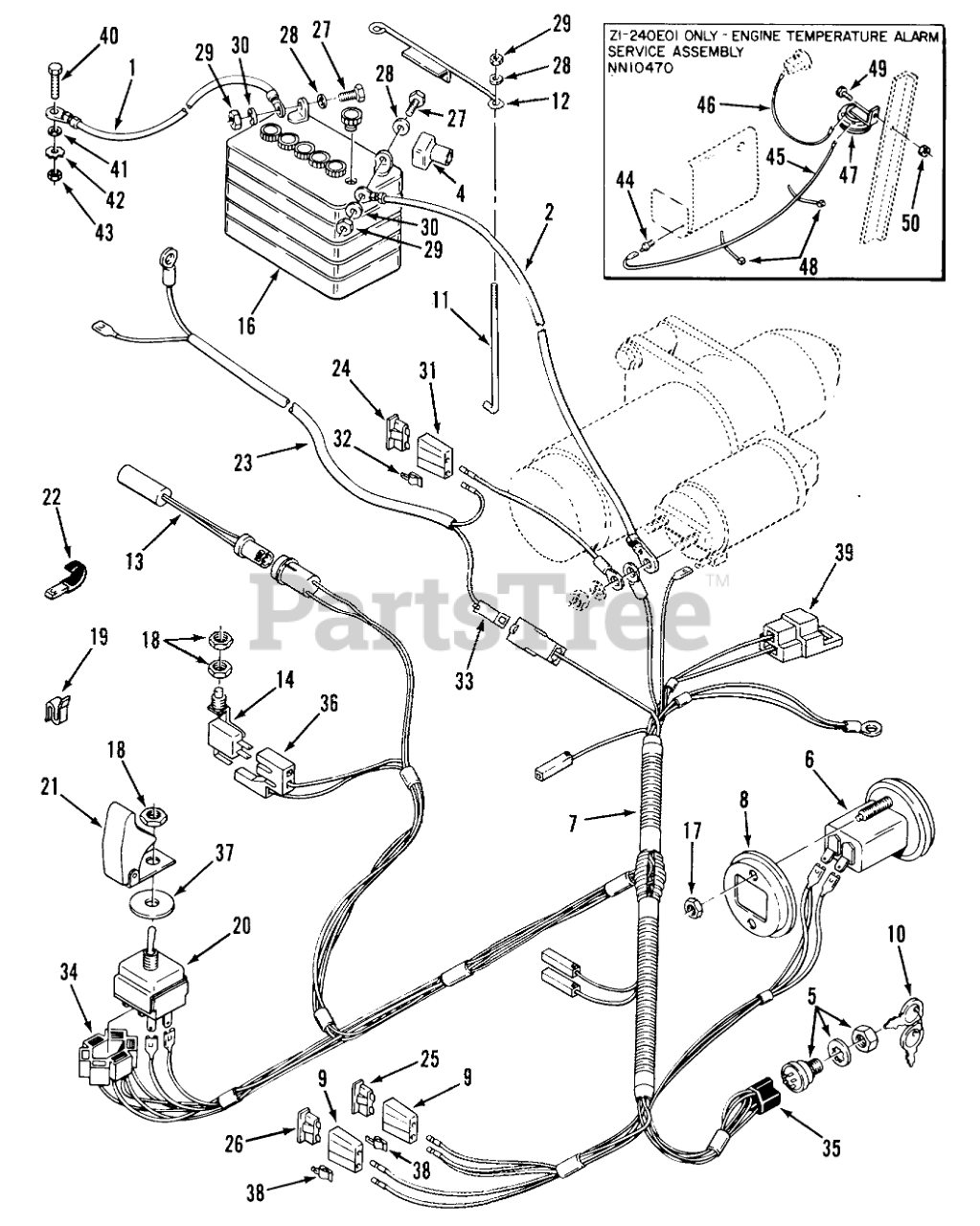

SECTION 12-ELECTRICAL SYSTEM Parts Diagram

  • Title
1

Toro 111078

WIRE -BLACK

$22.99

$

Usually ships in 3-6 days

0

2

Toro 115023

ASS'Y-WIRE BATTERY

$

$

Not available

4

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

5

Toro 111216

Ignition Switch (includes 101884 Nut)
(Superseded to 103990)

$27.99

$

In Stock, only 4 left!

0

6

Toro 113469

Hourmeter (includes item 8)

$445.99

$

Usually ships in 3-6 days

0

7

Toro 114509

Wiring Harness

$

$

Not available

8

Toro 114017

BRKT-GAUGE MOUNTING

$

$

Not available

9

Toro 109117

AUTO-FUSEBLOCK TERM

$

$

Not available

10

Toro 111214

KEY PADDED

$

$

Not available

11

$10.99

$

In Stock, only 2 left!

0

12

Toro 113010

HOLDDOWN-BATTERY

$26.99

$

In Stock, only 4 left!

0

13

Toro 113838

ASS'Y-SWITCH HARNESS

$

$

Not available

14

Toro 114240

Seat Switch
(Superseded to 112418)

$51.99

$

In Stock, only 3 left!

0

15

$

$

Not available

16

Toro 112816

Battery
(Superseded to 104-8162)

$

$

Not available

17

Toro 915962

Hex Nut
(Superseded to 32149-9)

$1.49

$

Usually ships in 3-6 days

0

18

Toro 105805

NUT-HEX, SPECIAL
(Superseded to 218-498)

$0.99

$

In Stock, only 2 left!

0

19

Toro 519337

CLIP-CABLE

$1.99

$

Usually ships in 3-6 days

0

20

Toro 105027

SWITCH CLUTCH

$

$

Not available

21

Toro 113050

COVER-PTO SWITCH

$71.99

$

Usually ships in 3-6 days

0

22

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

23

Toro NN10295

ENG WIRING HARNESS

$

$

Not available

24

Toro NN10277

FUSE-30 AMP

$9.99

$

Usually ships in 3-6 days

0

25

Toro 114241

FUSE-BLADE, 7.5 AMP

$11.99

$

Usually ships in 3-6 days

0

26

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

27

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

28

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

29

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

30

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

31

Toro NN10283

CONNECTOR CAP

$

$

Not available

32

Toro NN10293

CONNECTOR CLIP

$

$

Not available

33

Toro NN10282

MALE CONNECTOR

$

$

Not available

34

Toro 105303

CONNECTOR 5 WAY

$4.49

$

Usually ships in 3-6 days

0

35

Toro 105302

CONNECTOR-5 WAY-SERV
(Superseded to 32160-014)

$5.99

$

In Stock, only 2 left!

0

36

Toro 111498

CONNECTOR BODY

$4.99

$

In Stock, only 3 left!

0

37

Toro 920242

WASHER

$6.49

$

Usually ships in 3-6 days

0

38

$7.49

$

Usually ships in 3-6 days

0

39

Toro 109357

CONNECTOR BODY

$

$

Not available

40

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

41

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

42

Toro 920154

LCKWSHR 1/4 INT TTH

$

$

Not available

43

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

44

Toro NN10274

HIGH TEMPERATURE

$

$

Not available

45

$

$

Not available

46

$

$

Not available

47

$136.99

$

Usually ships in 3-6 days

0

48

Toro 100571

PLASTIC TIE

$

$

Not available

49

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

50

Toro 960012

NUT
(Superseded to 32128-43)

$1.49

$

In Stock, only 4 left!

0
