Z1-24OE01 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1988) SECTION 1-FRAME, REAR HUB AND FRONT WHEEL FORK Parts Diagram

Zero-Turn Mower, Drive Unit Only

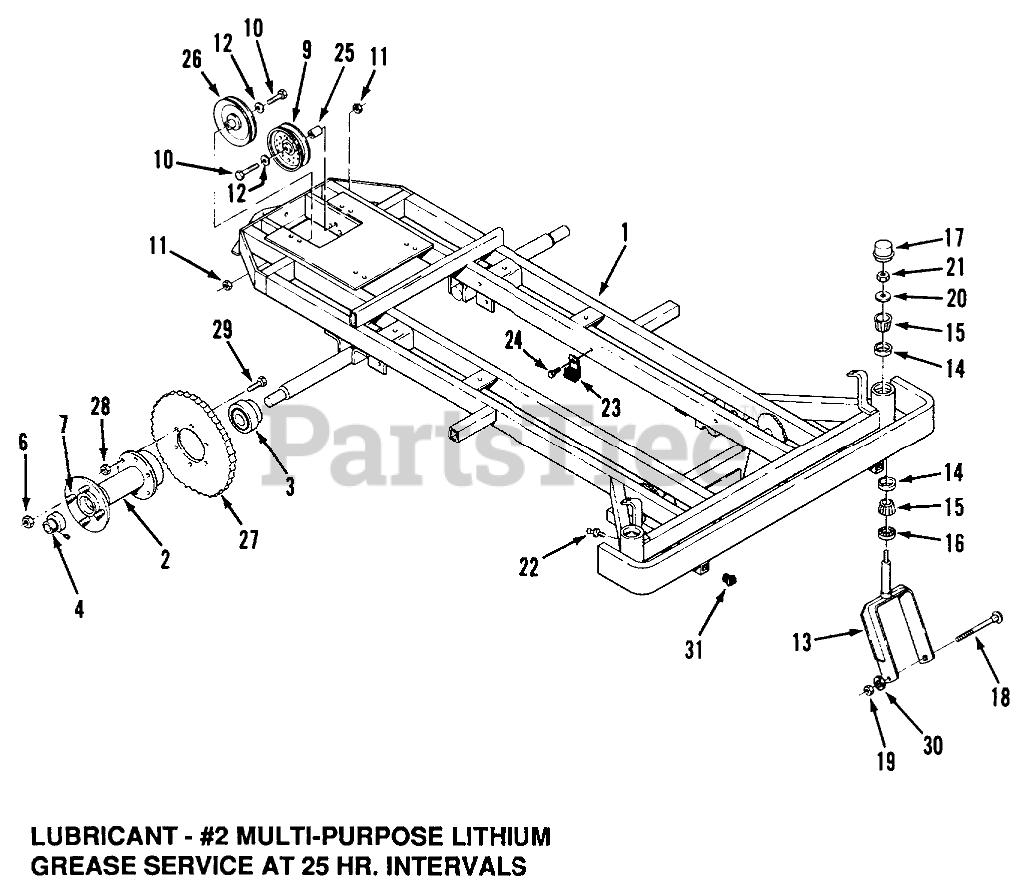

SECTION 1-FRAME, REAR HUB AND FRONT WHEEL FORK Parts Diagram

  • Title
1

Toro 113535

ASS'Y-FRAME B

$

$

Not available

2

Toro 114293

Hub-Rear Wheel
(Superseded to 92-4845)

$

$

Not available

3

Toro 113529

BEARING-REAR AXLE

$

$

Not available

4

Toro 113530

BEARING-REAR AXLE

$

$

Not available

6

Toro 114190

Nut-Lug 1/2-20
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

7

Toro B107

Wheel Stud 1/2-20 x 1-1/4

$

$

Currently unavailable

9

Toro 113633

PULLEY FLAT B
(Superseded to 113633-03)

$134.99

$

Usually ships in 3-6 days

0

10

Toro 908038

Bolt
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

11

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

12

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

13

Toro 113500

Front Wheel Fork

$

$

Not available

14

Toro 112821

Cup
(Superseded to 254-72)

$10.99

$

In Stock, Qty 11

0

15

Toro 112823

Bearing
(Superseded to 254-94)

$9.49

$

In Stock, Qty 18

0

16

Toro 113504

SEAL-FRONT WHEEL

$

$

Not available

17

Toro 112825

DUST CAP

$

$

Not available

18

Toro 911451

Bolt 5/8 11 x 7
(Superseded to 327-15)

$18.99

$

Usually ships in 3-6 days

0

19

Toro 915439

Nut 5/8-11
(Superseded to 9154394)

$

$

Not available

20

Toro 920015

Washer
(Superseded to 3256-28)

$3.49

$

In Stock, Qty 20+

0

21

Toro 915640

Nut
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 7

0

22

Toro 3796

Fitting-Grease
(Superseded to 302-16)

$

$

Not available

23

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

24

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

25

Toro 115101

BUSHING

$

$

Not available

26

Toro 115102

PULLEY-IDLER V

$

$

Not available

27

Toro 114295

SPROCKET-REAR HUB B

$249.99

$

In Stock, only 2 left!

0

28

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

29

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

30

Toro 920087

Lockwasher
(Superseded to 3253-8)

$0.99

$

In Stock, Qty 20+

0

31

Toro 115226

PLUG-SQUARE PLASTIC

$

$

Not available
