Z1-20KE01 (720-Z) - Toro Zero-Turn Mower, Drive Unit Only (1987) WHEELS AND TIRES Parts Diagram

Zero-Turn Mower, Drive Unit Only

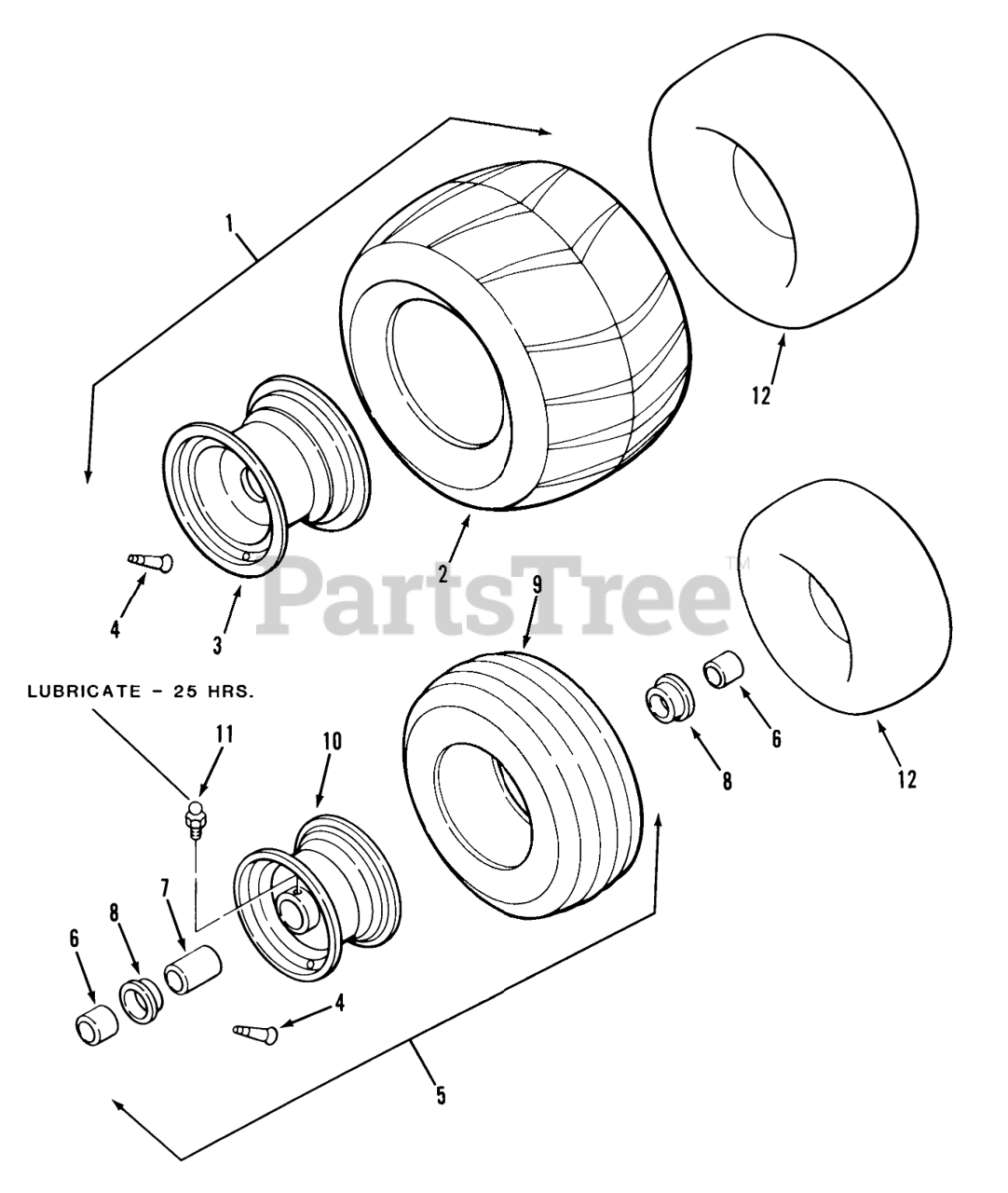

WHEELS AND TIRES Parts Diagram

  • Title

1

Toro 111920

Rear Wheel and Tire 22 x 12.00-8-Knobby (Includes items 2, 3 & 4)

$

$

Not available

1

Toro 112936

Rear Wheel and Tire 22 x 12.00-8-Chevron RH (Includes items 2, 3 & 4)

$

$

Not available

1

Toro 112937

Rear Wheel and Tire 21 x 12.00-8-Chevron LH (Includes items 2, 3 & 4)

$

$

Not available

2

Toro 10156

Rear Tire-Knobby

$

$

Not available

2

Toro 112935

CHEV TIRE 10156-C

$

$

Not available

3

Toro 111917

WHEEL PR SLVR 10238K

$

$

Not available

4

Toro 5108

VALVE

$6.99

$

In Stock, Qty 14

0

5

Toro 111921

Front Wheel and Tire Ass-y (Includes items 7, 8, 9 & 10)
(Superseded to 99-5852)

$

$

Not available

6

Toro 10203

Front Wheel Spacer 5/8 x 1

$

$

Not available

7

Toro 10204

SPACER FRT WHEEL INN

$

$

Not available

8

Toro 10205

BEARING BALL

$

$

Not available

9

Toro 10157

Front Tire 13 x 5.00-6

$

$

Not available

10

Toro 111916

WHEEL FT SLUV 10239K

$

$

Not available

11

Toro 1030

Zerk

$

$

Not available

12

Toro 5712

INNER TUBE

$

$

Not available

12

Toro 10127

Tube-Rear

$

$

Not available
