Z1-20KE01 (720-Z) - Toro Zero-Turn Mower, Drive Unit Only (1987) PARKING BRAKE Parts Diagram

Zero-Turn Mower, Drive Unit Only

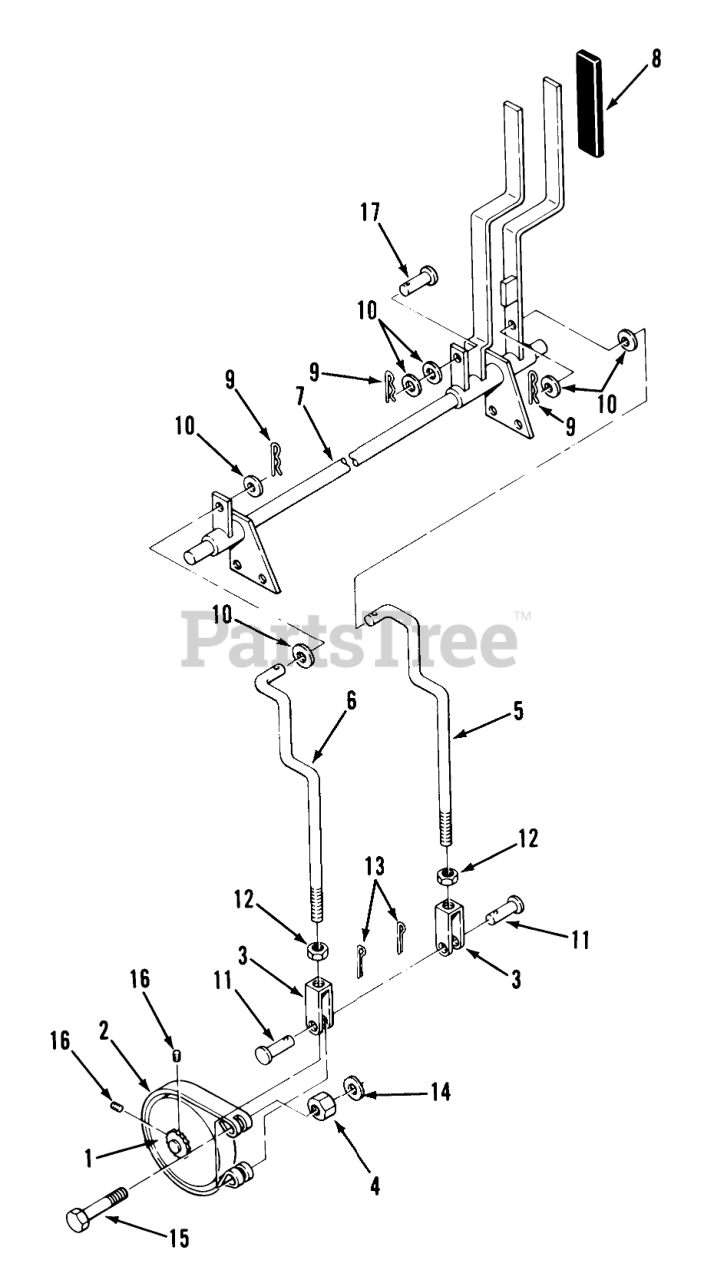

PARKING BRAKE Parts Diagram

  • Title

1

Tecumseh 20282

Sprocket and Drum #50

$

$

Currently unavailable

2

Tecumseh 20210

Brake Bands

$

$

Currently unavailable

3

Toro 113150

YOKE-BRAKE 20214-1

$

$

Not available

4

Toro N109

Coupling Rod Nut 3/8-16 x 7/8
(Superseded to 113690)

$24.99

$

Usually ships in 3-6 days

0

5

Toro 111902

LH BRAKE ROD 20278-1

$

$

Not available

6

Toro 111903

Brake Rod RH

$

$

Not available

7

Toro 111882

Brake Rod Assembly

$

$

Not available

8

Toro 111922

GRIP BRAKE20258-K

$

$

Not available

9

Toro 112444

HAIRPIN

$1.99

$

Usually ships in 3-6 days

0

10

Toro 920037

WASHER

$

$

Not available

11

Toro 932958

Clevis Pin 5/16 x 1 1/4
(Superseded to 9329584)

$

$

Not available

12

Toro 915001

Nut-Lock
(Superseded to 3219-2)

$0.99

$

In Stock, Qty 20+

0

13

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

14

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

15

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

16

Toro 909848

SCREW-SET
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

17

Toro 932956

Clevis Pin 5/16 x 7/8
(Superseded to 283-62)

$2.49

$

In Stock, Qty 10

0
