Z1-18KE02 (718-Z) - Toro Zero-Turn Mower, Drive Unit Only (1987) TRANSMISSION DRIVE Parts Diagram

Zero-Turn Mower, Drive Unit Only

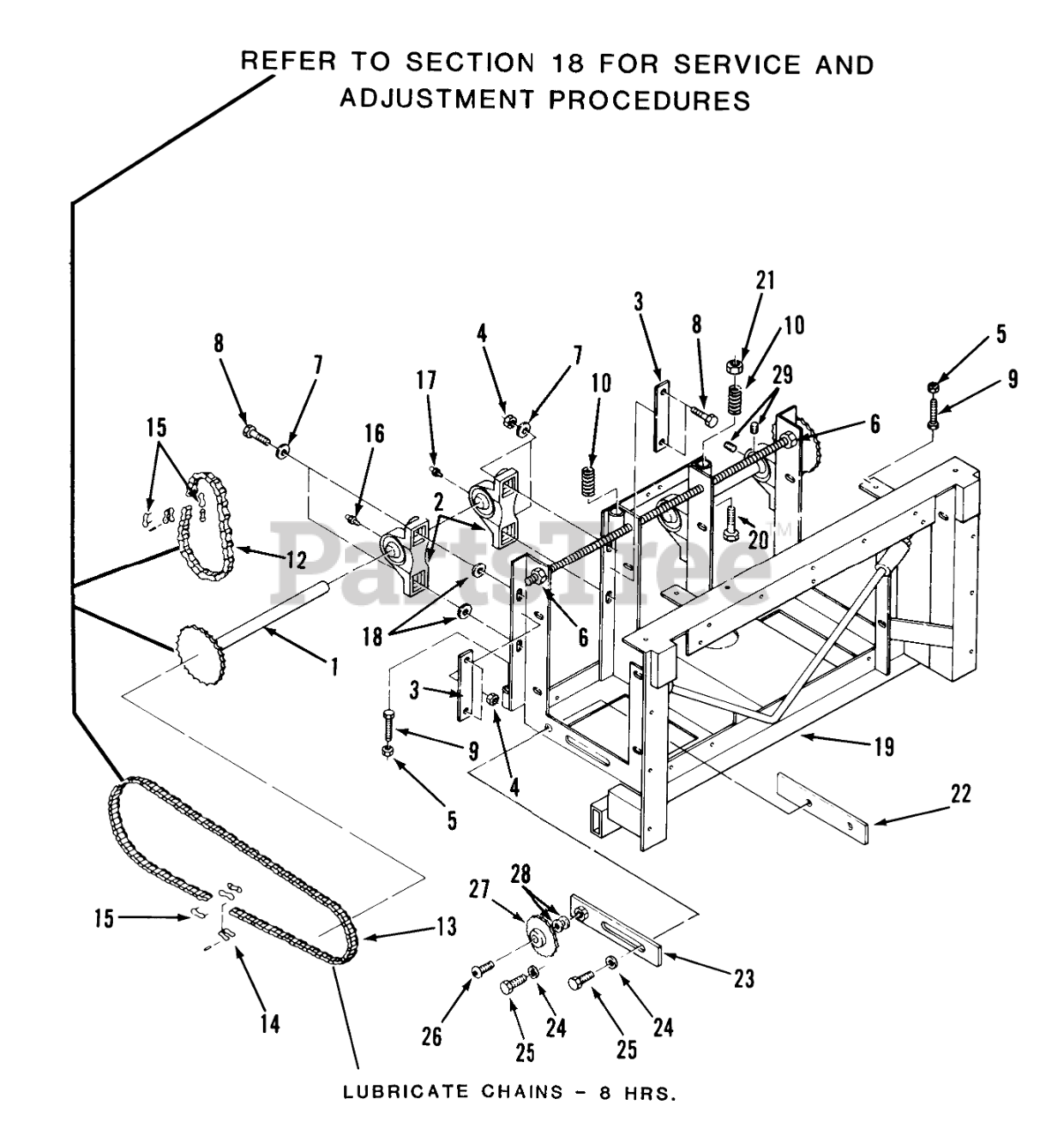

TRANSMISSION DRIVE Parts Diagram

  • Title
1

Toro 20284

Jackshaft
(Superseded to 113671)

$

$

Not available

2

Toro 113351

Pillow Block Bearing
(Superseded to 113531)

$

$

Not available

3

Toro 20242

PLATE PILLOW BLOCK

$

$

Not available

4

Toro 960012

NUT
(Superseded to 32128-43)

$1.49

$

In Stock, only 4 left!

0

5

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

6

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

7

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

8

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

9

Toro B105

Hex Bolt 5/16-18 x 1 1/2

$

$

Not available

10

Toro 112942

SPR SEAT (LG)

$23.99

$

Usually ships in 3-6 days

0

12

Toro 10229

Primary Chain (includes items 14 & 15)
(Superseded to 99-5851)

$

$

Not available

13

Toro 111906

Secondary Chain (includes items 14 & 15)

$

$

Not available

14

Toro 10233

HALF LINK

$

$

Not available

15

Toro 10232

Master Link #50
(Superseded to 2710-16)

$8.49

$

Usually ships in 3-6 days

0

16

Toro 113353

Fitting-Grease
(Superseded to 302-2)

$2.49

$

In Stock, Qty 19

0

17

Toro 113352

Grease Fitting 45deg.
(Superseded to 302-10)

$3.99

$

Usually ships in 3-6 days

0

18

Toro 920249

Washer
(Superseded to 9202494)

$5.99

$

In Stock, only 2 left!

0

18

Toro W118

WASHER THIN FENDER

$

$

Not available

19

Toro 20100

Transaxle Frame
(Superseded to 83-4140)

$

$

Not available

20

Toro 908023

Bolt 5/16-18 x 2
(Superseded to 322-10)

$0.99

$

In Stock, Qty 20+

0

21

Toro 960010

Flanged Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

22

Toro 112431

Back-up Plate

$

$

Not available

23

Toro 112304

ASSY-CHAIN TENSIO B

$

$

Not available

24

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

25

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

26

Toro 111904

Idler Sprocket Bolt

$

$

Not available

27

Toro 111887

IDLER SPROCKET 20288

$

$

Not available

28

Toro 920013

WASHER
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 15

0

29

Toro 909950

Set Screw 10-32 x 1/4

$

$

Currently unavailable
