Z1-18KE02 (718-Z) - Toro Zero-Turn Mower, Drive Unit Only (1987) TRANSMISSION DRIVE Parts Diagram

Zero-Turn Mower, Drive Unit Only

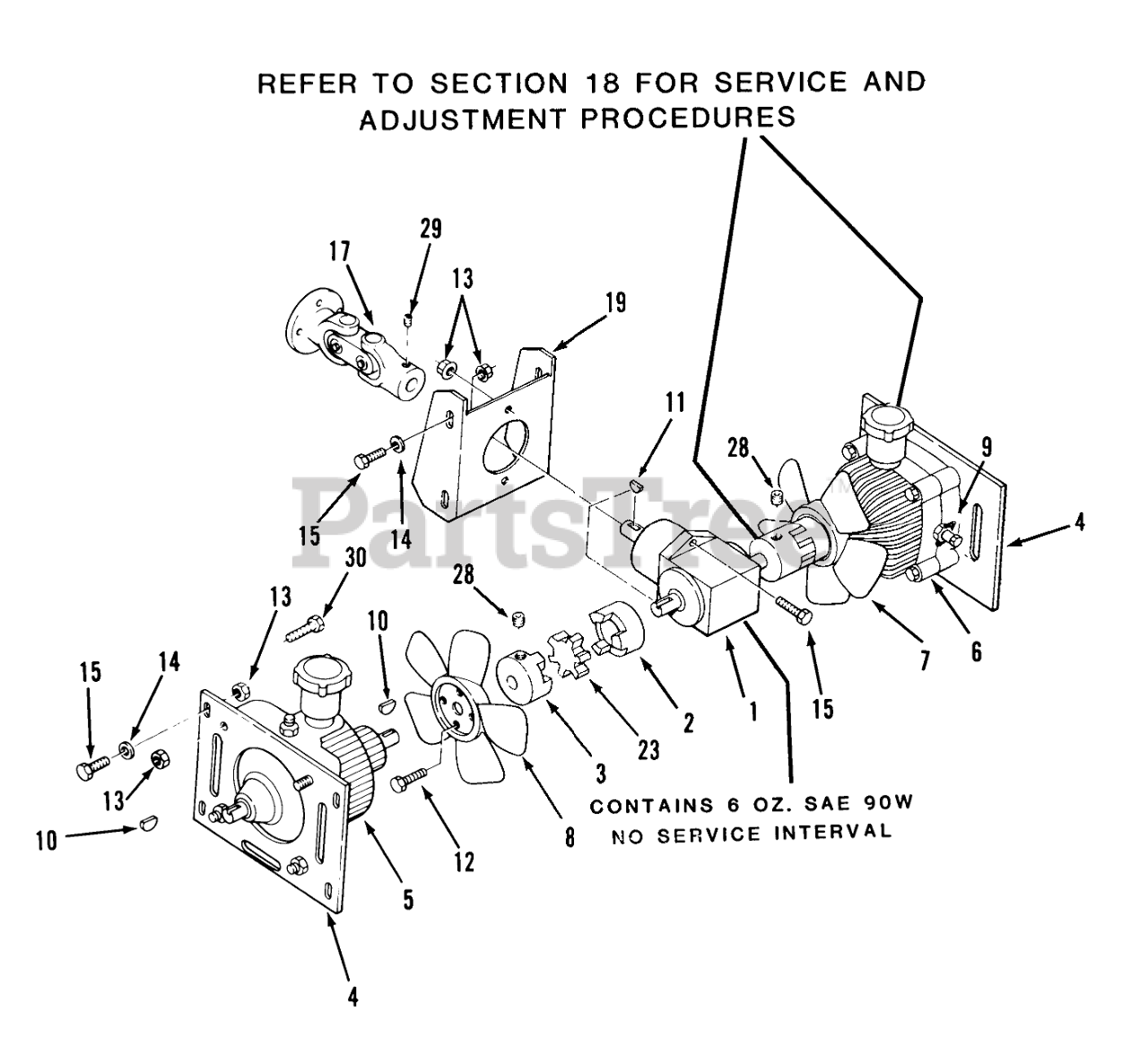

TRANSMISSION DRIVE Parts Diagram

  • Title

1

Toro 20201

"T" Gear Box (Peerless 1000)
(Superseded to 113640)

$

$

Not available

2

Tecumseh 20202

LJ Coupler (.875 x 3/16 Keyway)

$

$

Currently unavailable

3

Tecumseh 20203

LJ Coupler (.670 X 1/8 Keyway)

$

$

Currently unavailable

4

Toro 20204

Hydro Mounting Plate

$

$

Not available

5

Tecumseh 20205

Hydrostatic Transmission (counterclockwise rotation input shaft)

$

$

Currently unavailable

6

Toro 20206

Hydrostatic Transmission (clockwise rotation input shaft)
(Superseded to 113569)

$4814.99

$

Usually ships in 3-6 days

0

7

Toro 20207

Fan LH
(Superseded to 92-1799)

$

$

Not available

8

Toro 20208

Fan RH
(Superseded to 113650)

$

$

Not available

9

Tecumseh 20233

Dump Valve Clip

$

$

Currently unavailable

10

Toro 937082

KEY WOODR 1/8X1/2 DI

$

$

Not available

11

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, Qty 5

0

12

Toro S100

Self Tapping Screw #10-24 x 1/2
(Superseded to 9264664)

$

$

Not available

13

Toro 960012

NUT
(Superseded to 32128-43)

$1.49

$

In Stock, only 4 left!

0

14

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

15

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

17

Toro 112742

ASSY-DOUBLE U-JOINT

$

$

Not available

19

Toro 111908

GEAR BOX BRKT 20104K

$

$

Not available

23

Toro 20255

Coupling Spider
(Superseded to 113663)

$65.99

$

Usually ships in 3-6 days

0

28

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

29

Toro 909878

Setscrew 3/8-16 x 1/2
(Superseded to 3247-2)

$4.49

$

Usually ships in 3-6 days

0

30

Toro 908042

Screw-Hex. Hd.
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0
