Zero-Turn Mower, Drive Unit Only

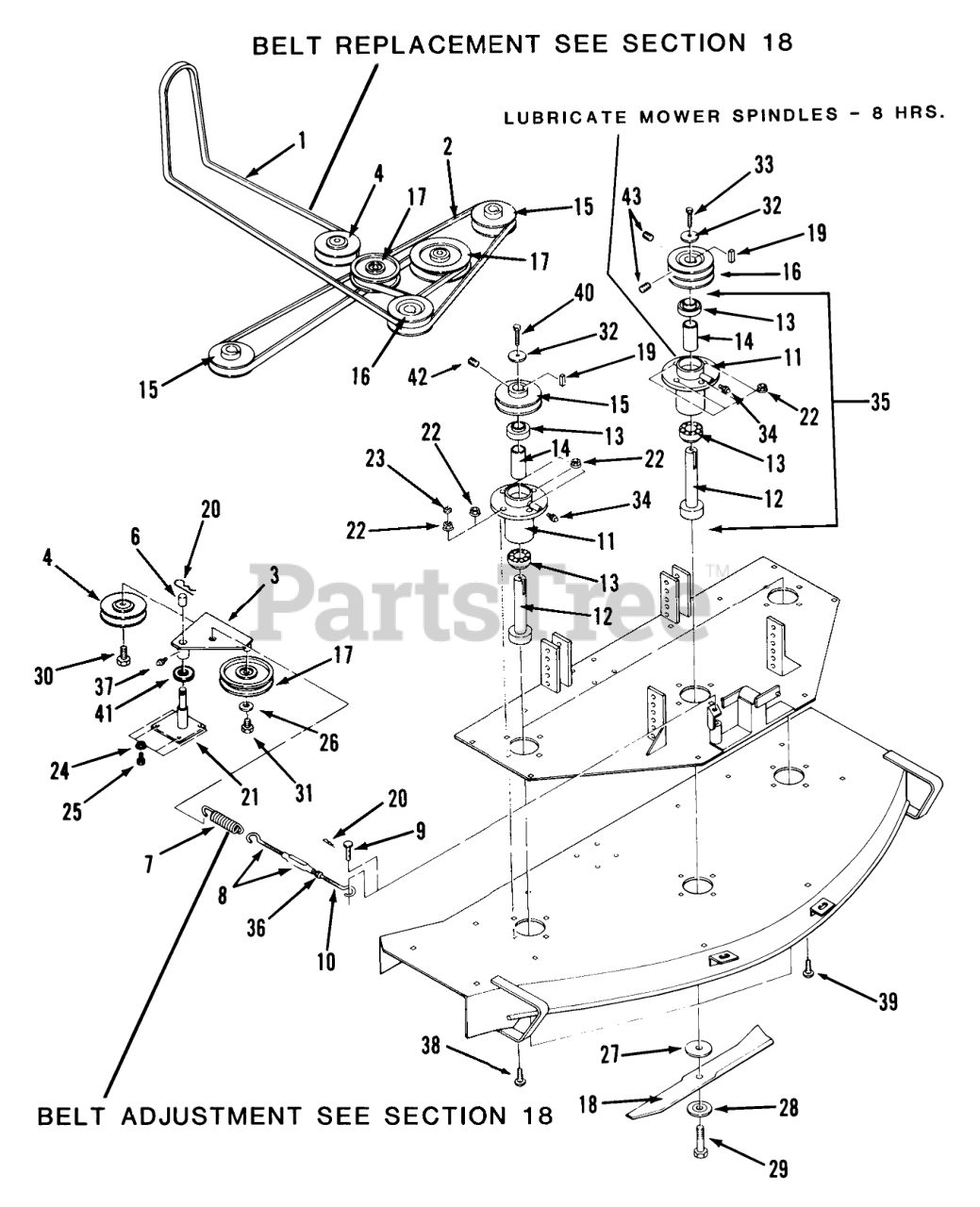

MOWER SPINDLE AND BELTS Parts Diagram

  • Title

1

Toro 109909

V-BELT

$193.99

$

Usually ships in 3-6 days

0

1

Toro 112448

BELT-60" MOWER DRIVE

$256.99

$

Usually ships in 3-6 days

0

2

Toro 30203

Mower Spindle Belt (105.5")

$

$

Not available

2

Toro 112449

BELT-V

$254.99

$

In Stock, only 3 left!

0

3

Toro 112432

Belt Tensioning Swing Arm

$

$

Not available

4

Toro 105616

PULLEY-V IDLER

$

$

Not available

6

Toro 30206

Bronze Bushing
(Superseded to 113597)

$9.49

$

Usually ships in 3-6 days

0

7

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, only 1 left!

0

8

Toro 30208

TURNBUCKLE

$

$

Not available

9

Toro 111880

Idler Spring Pin

$

$

Not available

10

Toro 111881

EYEBOLT B-150-K

$

$

Not available

11

Toro 30216

Mower Hub

$

$

Not available

12

Toro 30217

SHAFT MOWER SPINDLE

$

$

Not available

13

Toro 30218

Mower Bearing
(Superseded to 113530)

$

$

Not available

14

Toro 30219

Spacer

$

$

Not available

15

Toro 30220

Sheave-1 Groove

$

$

Not available

15

Toro 112949

PULLEY-SGL 30220-Z60

$

$

Not available

16

Toro 111888

PULLEY 2-GROOVE

$

$

Not available

16

Toro 112948

PULLEY-SHE 30221-Z60

$

$

Not available

17

Toro 30224

Flat Idler

$

$

Currently unavailable

18

Toro 30227

Mower Blade 17"
(Superseded to 113579)

$34.99

$

In Stock, only 3 left!

0

18

Toro 112947

BLADE

$35.99

$

In Stock, only 1 left!

0

19

Toro 30228

KEY

$

$

Not available

20

Toro 933512

Hairpin
(Superseded to 9335124)

$2.99

$

In Stock, Qty 5

0

21

Toro 112943

BELT-TENS 30235-Z87

$

$

Not available

22

Toro 960012

NUT
(Superseded to 32128-43)

$1.49

$

In Stock, only 4 left!

0

23

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

24

Toro 960008

Nut 1/4-20
(Superseded to N102)

$

$

Not available

25

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

26

Toro 920085

Lockwasher

$

$

Currently unavailable

27

Toro W101

WASHER FIBER

$

$

Not available

28

Toro W100

WASHER CUPPED

$

$

Not available

29

Toro B121

BOLT HEX 5/8-18X21/2

$

$

Not available

30

Toro B120

Hex Bolt 5/8-11 x 1
(Superseded to 327-2)

$3.49

$

Usually ships in 3-6 days

0

31

Toro 908058

Bolt
(Superseded to 325-5)

$1.49

$

In Stock, Qty 6

0

32

Toro W107

Cupped Washer

$

$

Not available

33

Toro 908184

Bolt 3/8-24 x -1/4
(Superseded to 3-2115)

$

$

Not available

34

Toro 1291

ZERK 90DEGREE

$

$

Not available

35

Toro 10161

Spindle Assembly (Includes items 11, 12, 13 & 34)
(Superseded to 111013)

$

$

Not available

36

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

37

Toro 1030

Zerk

$

$

Not available

38

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 10

0

39

Toro 900064

Bolt
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 14

0

40

Toro 908183

HEX HD CAP SCREW

$

$

Not available

41

Toro 113125

SPACER-PIVOT 30112

$

$

Not available

42

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

43

Toro 909848

SCREW-SET
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0
