Z1-18KE02 (718-Z) - Toro Zero-Turn Mower, Drive Unit Only (1987) MOWER MOUNT Parts Diagram

Zero-Turn Mower, Drive Unit Only

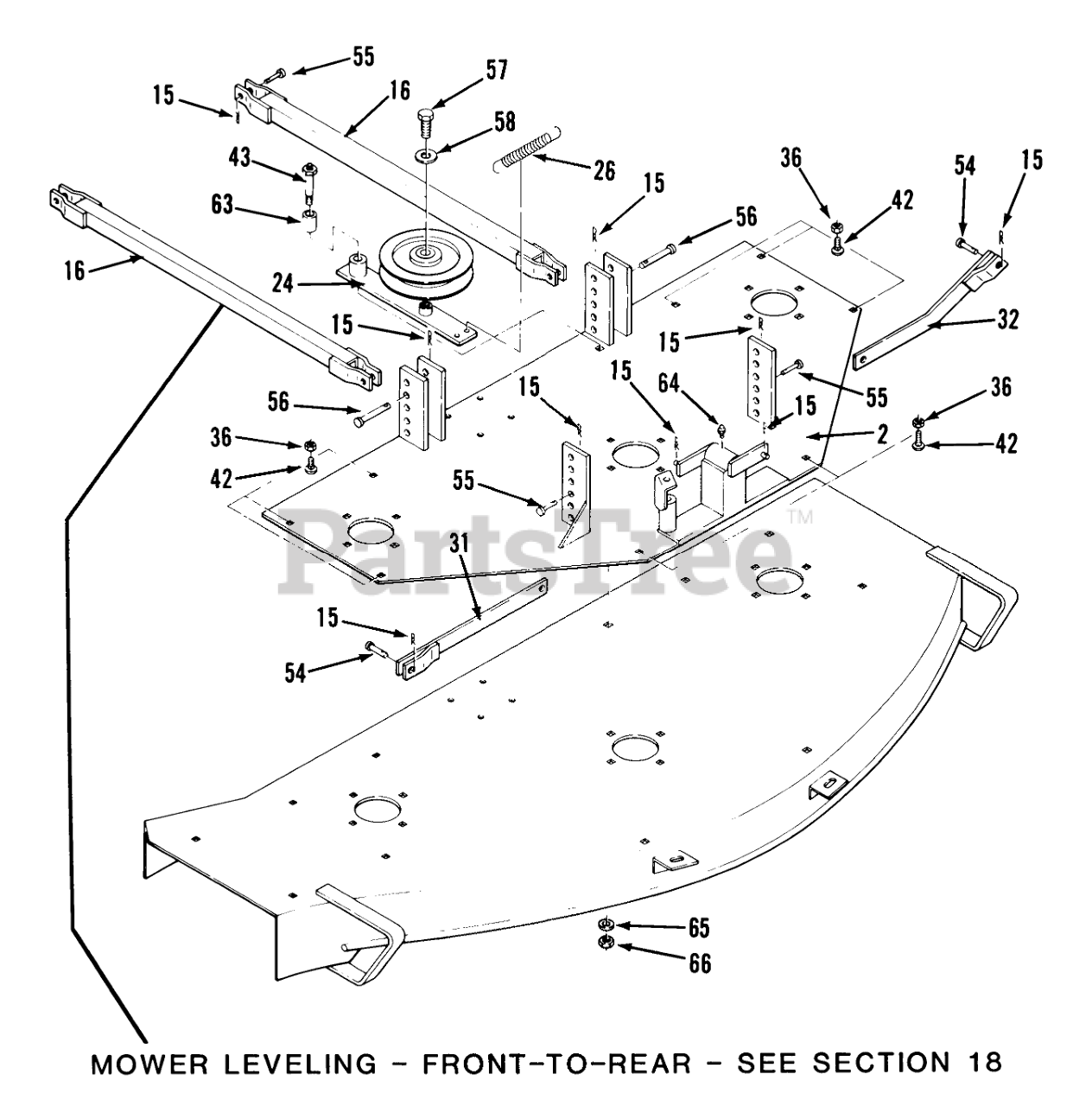

MOWER MOUNT Parts Diagram

  • Title

2

Tecumseh 30201

Mower Deck Plate
(Superseded to 30201A)

$

$

Not available

2

Toro 112950

Washer

$

$

Not available

15

Toro 112444

HAIRPIN

$1.99

$

Usually ships in 3-6 days

0

16

Tecumseh 113104

Stabilizer Bar

$

$

Currently unavailable

24

Toro 113080

ARM-IDLER 30223-87

$

$

Not available

26

Tecumseh 30225

SPRING TENSION
(Superseded to 28940B)

$

$

Currently unavailable

31

Tecumseh 30231

STABILIZER RH
(Superseded to 37620)

$80.99

$

Usually ships in 3-12 days

0

32

Tecumseh 30232

LH Stabilizer
(Superseded to 37620)

$80.99

$

Usually ships in 3-12 days

0

36

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

36

Toro 960012

NUT
(Superseded to 32128-43)

$1.49

$

In Stock, only 4 left!

0

42

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

42

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

43

Toro 112960

Shoulder Bolt 1/2-13 x 1 3/4/w Grease Fitting
(Superseded to 113629)

$292.99

$

Usually ships in 3-6 days

0

54

Toro P101

PIN CLEVIS 5/16X1
(Superseded to 283-61)

$1.99

$

In Stock, only 2 left!

0

55

Toro 932964

Clevis Pin 3/8 x 1 1/4
(Superseded to 9329644)

$

$

Not available

56

Toro P103

Clevis Pin 3/8 x 2 1/4
(Superseded to 9329674)

$5.49

$

Usually ships in 3-6 days

0

57

Toro 908058

Bolt
(Superseded to 325-5)

$1.49

$

In Stock, Qty 6

0

58

Toro 920085

Lockwasher

$

$

Currently unavailable

63

Toro 20276

Bronze Bushing
(Superseded to 113631)

$

$

Not available

64

Toro 1030

Zerk

$

$

Not available

65

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

66

Toro 960012

NUT
(Superseded to 32128-43)

$1.49

$

In Stock, only 4 left!

0
