Z1-18KE02 (718-Z) - Toro Zero-Turn Mower, Drive Unit Only (1987) FENDERS AND COVERS Parts Diagram

Zero-Turn Mower, Drive Unit Only

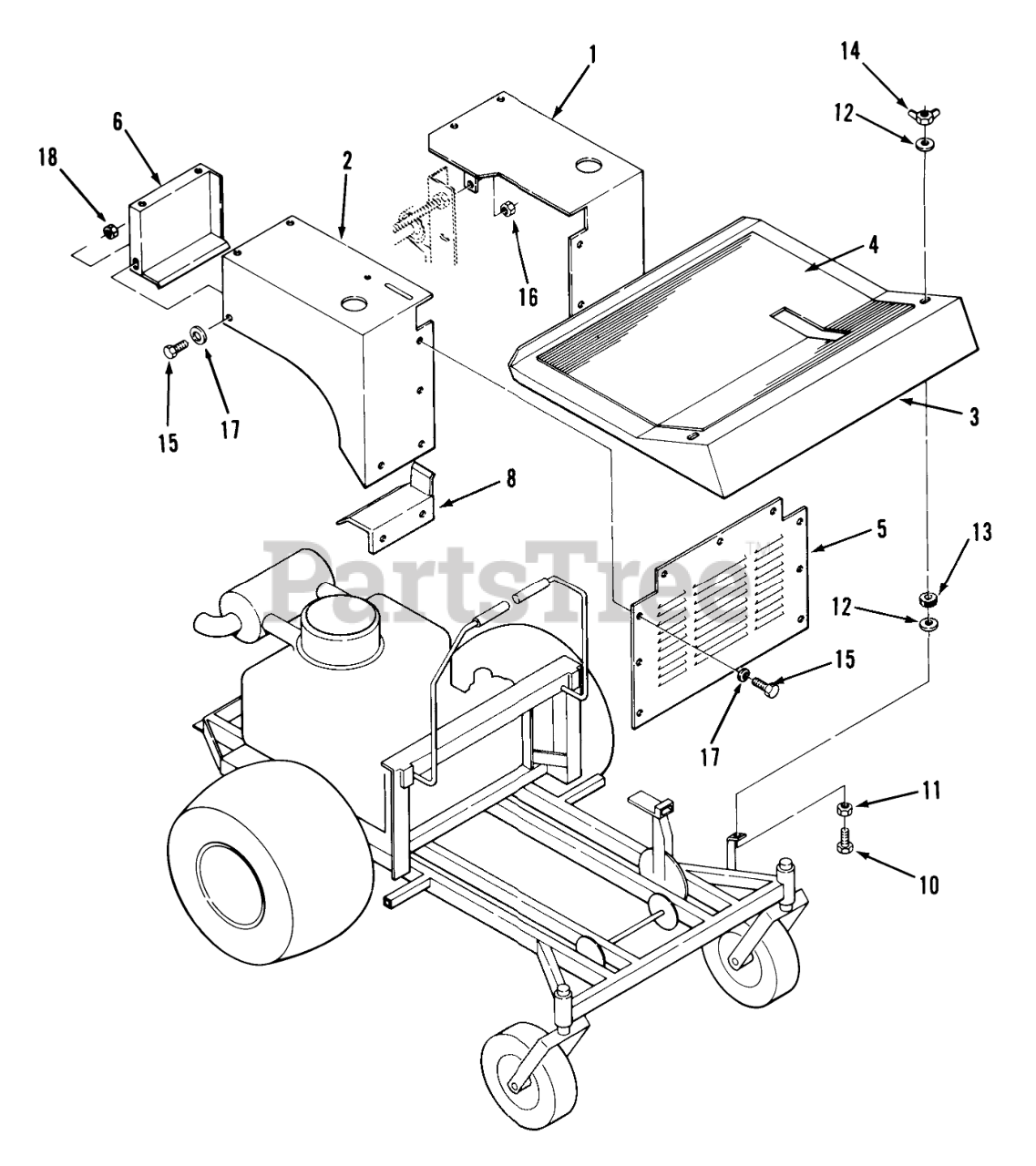

FENDERS AND COVERS Parts Diagram

  • Title

1

Toro 111899

Fender LH

$

$

Not available

2

Toro 111900

Fender RH

$

$

Not available

3

Toro 111891

Floor Pan
(Superseded to 111891-01)

$

$

Not available

4

Toro 112741

Footrest Pad Neoprene

$

$

Not available

5

Toro 111893

Front Panel

$

$

Not available

6

Toro 111909

Bracket-Fender Rear RH
(Superseded to 111909-01)

$

$

Not available

6

Toro 111910

Bracket-Fender Rear LH
(Superseded to 111910-01)

$

$

Not available

8

Toro 111911

Bracket-Fender Frt RH
(Superseded to 111911-01)

$

$

Not available

8

Toro 111912

Bracket-Fender Frt LH
(Superseded to 111912-01)

$

$

Not available

10

Toro B105

Hex Bolt 5/16-18 x 1 1/2

$

$

Not available

11

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

12

Toro 920249

Washer
(Superseded to 9202494)

$5.99

$

In Stock, only 2 left!

0

13

Toro W103

Rubber Washer
(Superseded to 107675)

$3.49

$

In Stock, Qty 20+

0

14

Toro 915585

WING NUT

$

$

Not available

15

Toro 908001

Bolt
(Superseded to 321-2)

$3.49

$

In Stock, only 3 left!

0

16

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

17

Toro 920037

WASHER

$

$

Not available

18

Toro 960008

Nut 1/4-20
(Superseded to N102)

$

$

Not available
